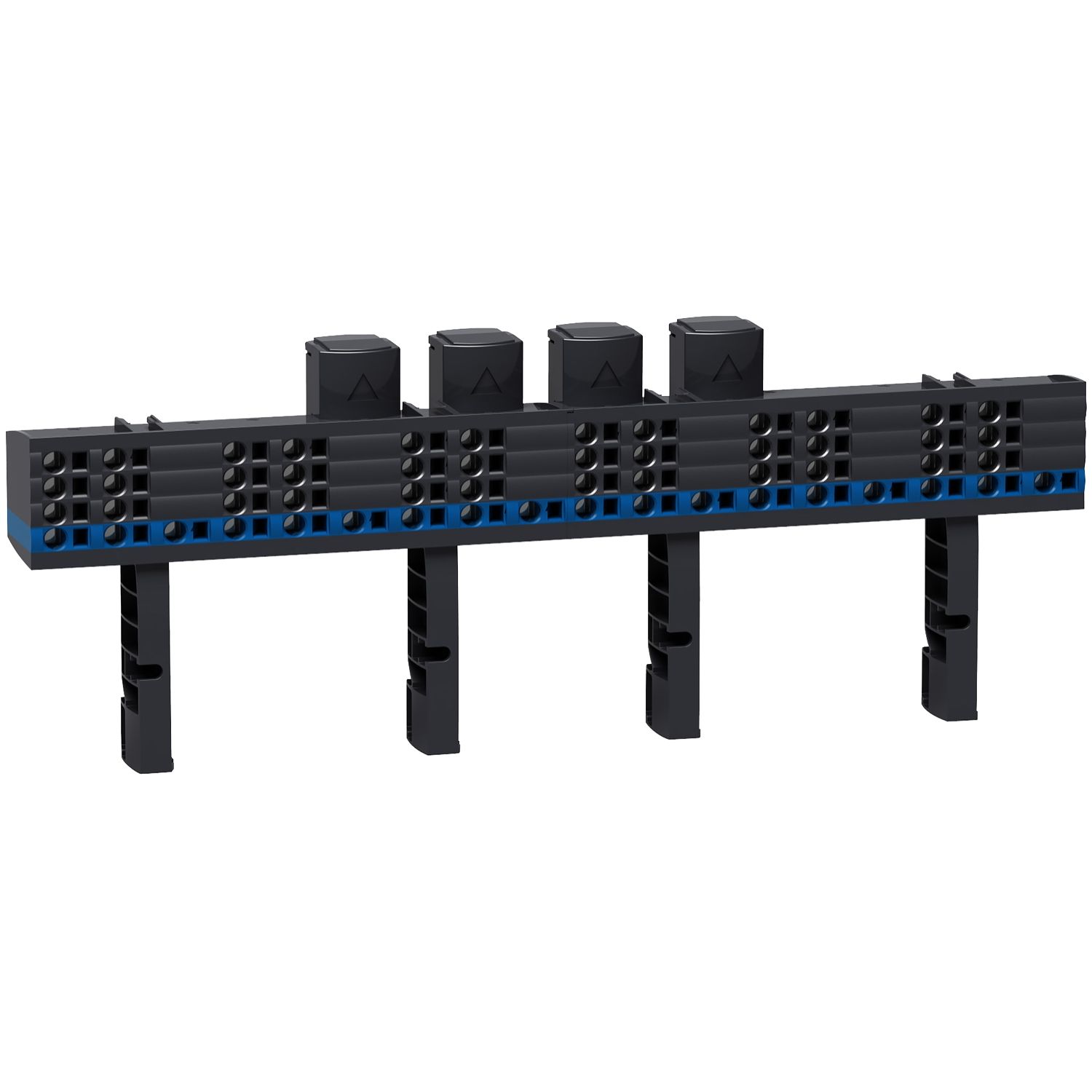

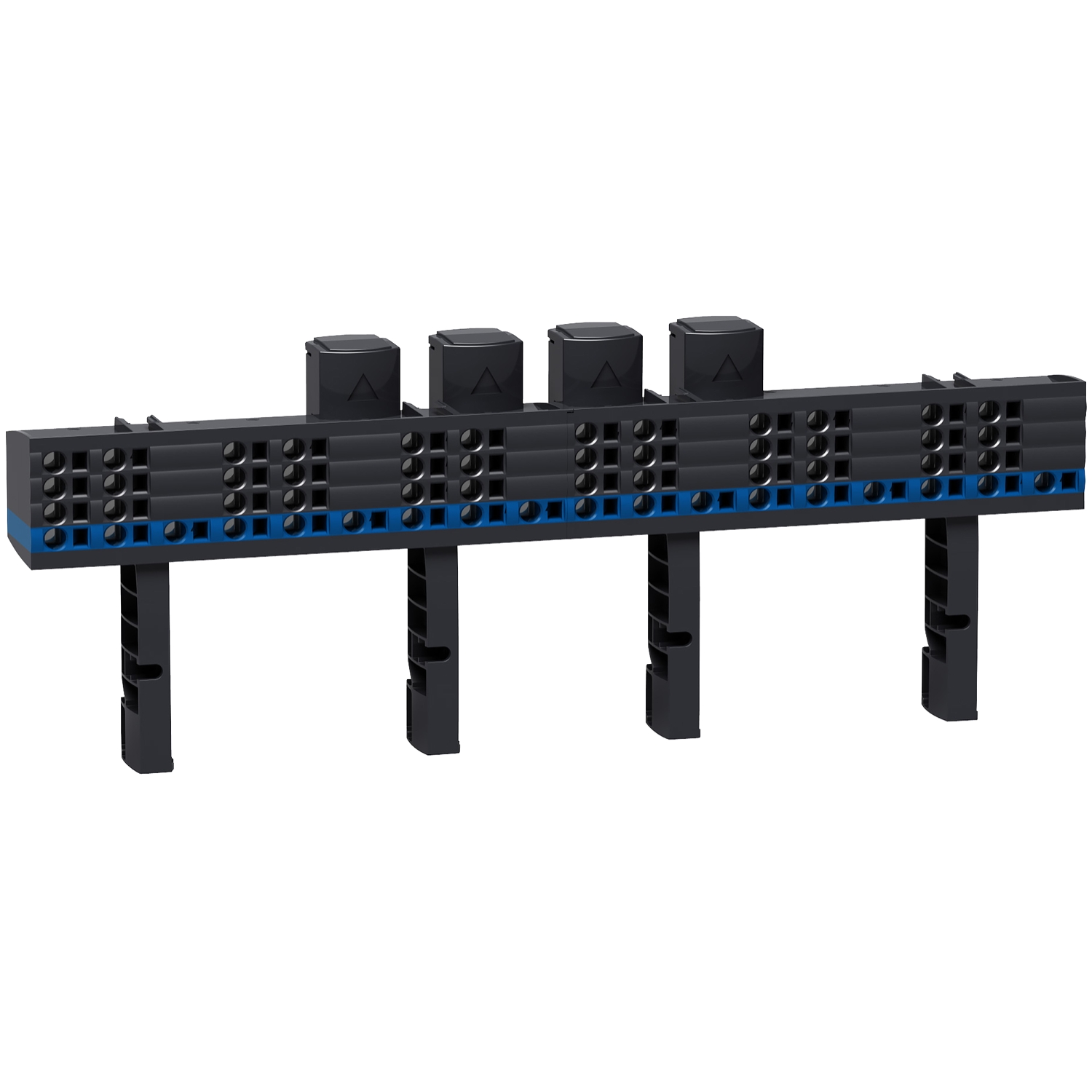

Distribution Block is designed for use with PrismaSeT P and G enclosures power distribution within electrical panels. Compatible with distribution blocks 200A 4P 440V AC, for Enclosed terminals. Compatible with 24 vertical modules and with 54 holes.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IPxx B |
| Product compatibility | Spacial enclosures |
| Range | Linergy |
| Product name | Linergy FM |
| Product or component type | device feeder |
| Range compatibility | PrismaSeT Prisma PH enclosure, PrismaSeT PrismaSeT P enclosure, PrismaSeT PrismaSeT G enclosure |
| Range of product | Linergy |
| Complementary | |
| [Ipk] rated peak withstand current | 30 kA |
| I²t on activation | 6700000 A².s |
| Colour | anthracite grey (RAL 7016) |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Compatibility code | MULTICLIP |
| Poles description | 3P + N |
| [Ie] rated operational current | 200 A |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz |
| Net weight | 1.6 kg |
| 9 mm pitches | 48 |
| Installed device | modular device |
| Total number of 18 mm modules | 24 |
| Mounting support | slotted backplate, plain backplate, DIN rail |
| [Ue] rated operational voltage | 690 V AC |
| [In] rated current | 200 A at 40 °C |
| Connections - terminals | distribution: quick-connect terminal strips (neutral) , 18 x 4-10 mm² (rigid) , distribution: quick-connect terminal strips (neutral) , 18 x 4-10 mm² (flexible) , distribution: quick-connect terminal strips (phase) , 12 x 4-10 mm² (rigid) , distribution: quick-connect terminal strips (phase) , 12 x 4-10 mm² (flexible) , supply: flexible bars, 20 x 3 mm, supply: crimped lug50-50 mm² |
| Environment | |
| Standards | IEC 60947-7-1, IEC 61439-2, inside enclosure, IEC 61439-1, inside enclosure |
| Product certifications | ASTA |
