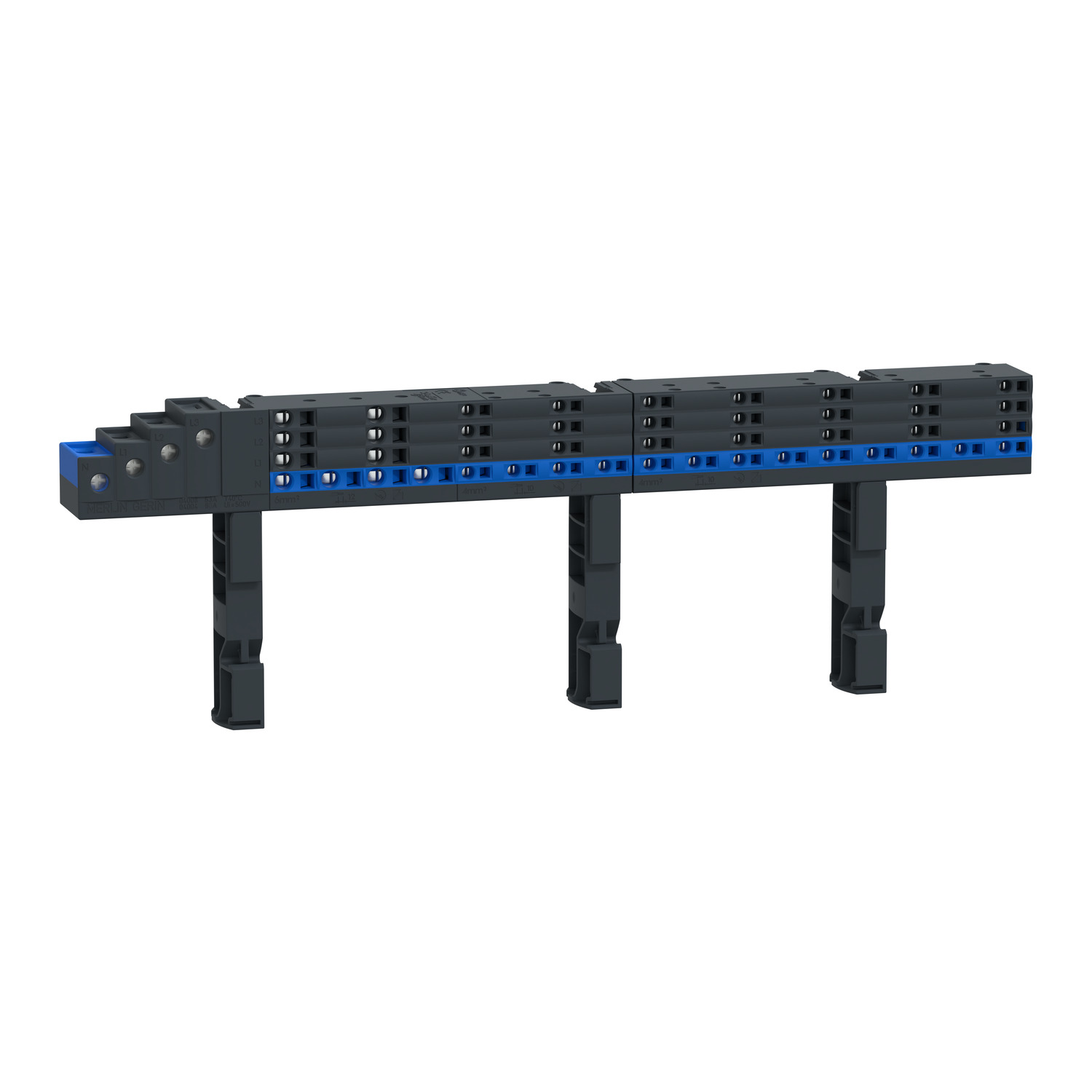

Distribution Block is designed for use with PrismaSeT P and G enclosures power distribution within electrical panels. Compatible with distribution blocks 80A 4P 440V AC, for Enclosed terminals. Compatible with 24 vertical modules and with 24 holes.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IPxx B |
| Range | Linergy |
| Product name | Linergy FM |
| Product or component type | distribution block |
| Range compatibility | PrismaSeT P PrismaSeT G enclosure |
| Range of product | Linergy |
| Complementary | |
| [Ipk] rated peak withstand current | 13 kA |
| I²t on activation | 2400000 A².s |
| Depth | 395 mm |
| Width | 63 mm |
| Colour | anthracite grey (RAL 7016) |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Compatibility code | MULTICLIP |
| Poles description | 4P |
| Mounting mode | - |
| [Ie] rated operational current | 80 A |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| Net weight | 0.74 kg |
| 9 mm pitches | 48 |
| Installed device | modular device |
| Total number of 18 mm modules | 24 |
| Mounting support | plain backplate, DIN rail |
| [Ue] rated operational voltage | 440 V AC |
| Height | 45 mm |
| [In] rated current | 80 A at 40 °C |
| Connections - terminals | supply: tunnel type terminal25-25 mm², distribution: quick-connect terminal strips (neutral) , 13 x 1-4 mm² (flexible) , distribution: quick-connect terminal strips (neutral) , 4 x 1-6 mm² (flexible) , distribution: quick-connect terminal strips (neutral) , 13 x 1-4 mm² (rigid) , distribution: quick-connect terminal strips (neutral) , 4 x 1-6 mm² (rigid) , distribution: quick-connect terminal strips (phase) , 7 x 1-4 mm² (flexible) , distribution: quick-connect terminal strips (phase) , 2 x 1-6 mm² (flexible) , distribution: quick-connect terminal strips (phase) , 7 x 1-4 mm² (rigid) , distribution: quick-connect terminal strips (phase) , 2 x 1-6 mm² (rigid) |
| Environment | |
| Standards | IEC 60947-7-1, IEC 61439-2, inside Prisma, IEC 61439-1, inside Prisma |
| Product certifications | ASEFA |
