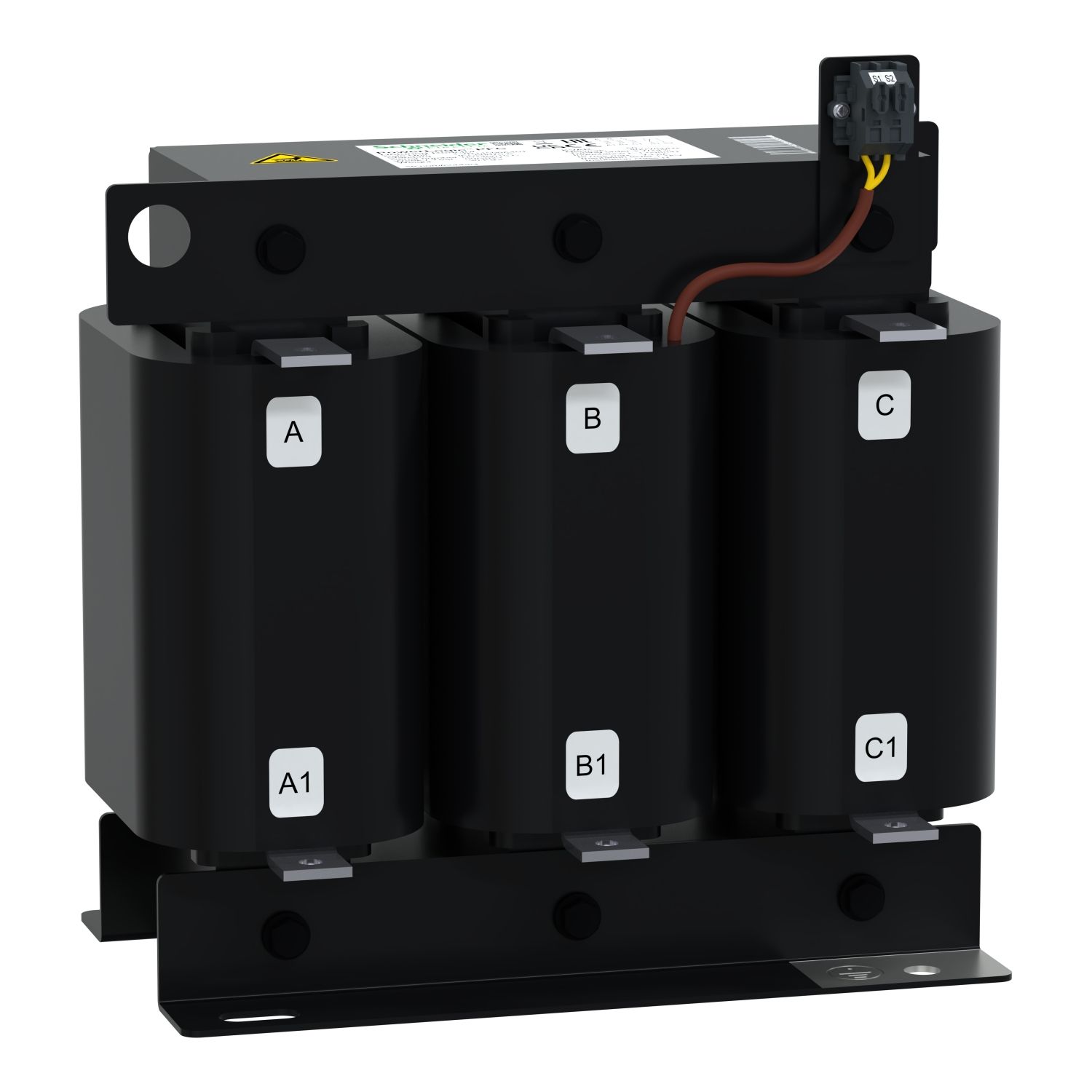

The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 50 kVar output power with 2.7/135 Hz tuning order at 400V AC at 50 Hz. Relative impedance, 14 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 270mm in height, 260mm in width and 200mm in depth. For a product weight of 33 kg.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | DR |
| Tuning order | 2.7 - 135 Hz - 14 % - 50 Hz |
| Network rated voltage | 400 V AC 50 Hz |
| Range | PowerLogic |
| Product or component type | detuned reactor |
| Reactive power rating | 50 kvar for 400 V AC 50 Hz |
| Network frequency | 50 Hz |
| Complementary | |
| [Imp] maximum permanent current | 1.12 x I1 |
| Depth | 200 mm |
| Width | 260 mm |
| Inductance tolerance | - 5 % to 5 % per phase |
| Type of cooling | forced convection |
| Fundamental current rating | 72.2 A |
| Harmonic current spectrum | 2.1 % x I11, 5.3 % x I7, 10.7 % x I5, 5.5 % x I3 |
| [Ui] rated insulation voltage | 1.1 kV |
| Dynamic withstand current | 2.2 x Isc |
| Electrical insulation class | class H |
| Value of inductance | 1.598 mH |
| Maximum current Irms | 73.6 A |
| Power losses | 400 W |
| Connections - terminals | pad terminal |
| Type of installation | indoor installation |
| Net weight | 33 kg |
| Fixing center | 200 x 125 mm |
| [Ith] conventional free air thermal current | 2 A at 250 V AC 50 Hz |
| Dielectric test voltage | 4 kV 50 Hz 1 minute |
| Height | 270 mm |
| Environment | |
| Operating altitude | <= 2000 m |
| IP degree of protection | IP00 |
| Average ambient air temperature for operation | 35 °C at > 1000...2000 m (average over 1 year) , 45 °C at > 1000...2000 m (average over 24 hours) , 40 °C at <= 1000 m (average over 1 year) , 50 °C at <= 1000 m (average over 24 hours) |
| Ambient air temperature for operation | 0-50 °C at > 1000...2000 m, 0-55 °C at <= 1000 m |
| Climatic withstand | salt mist (400 V/50 Hz) : 250 hours, relative humidity: 20...80 % |
| Standards | IEC 60068 |
