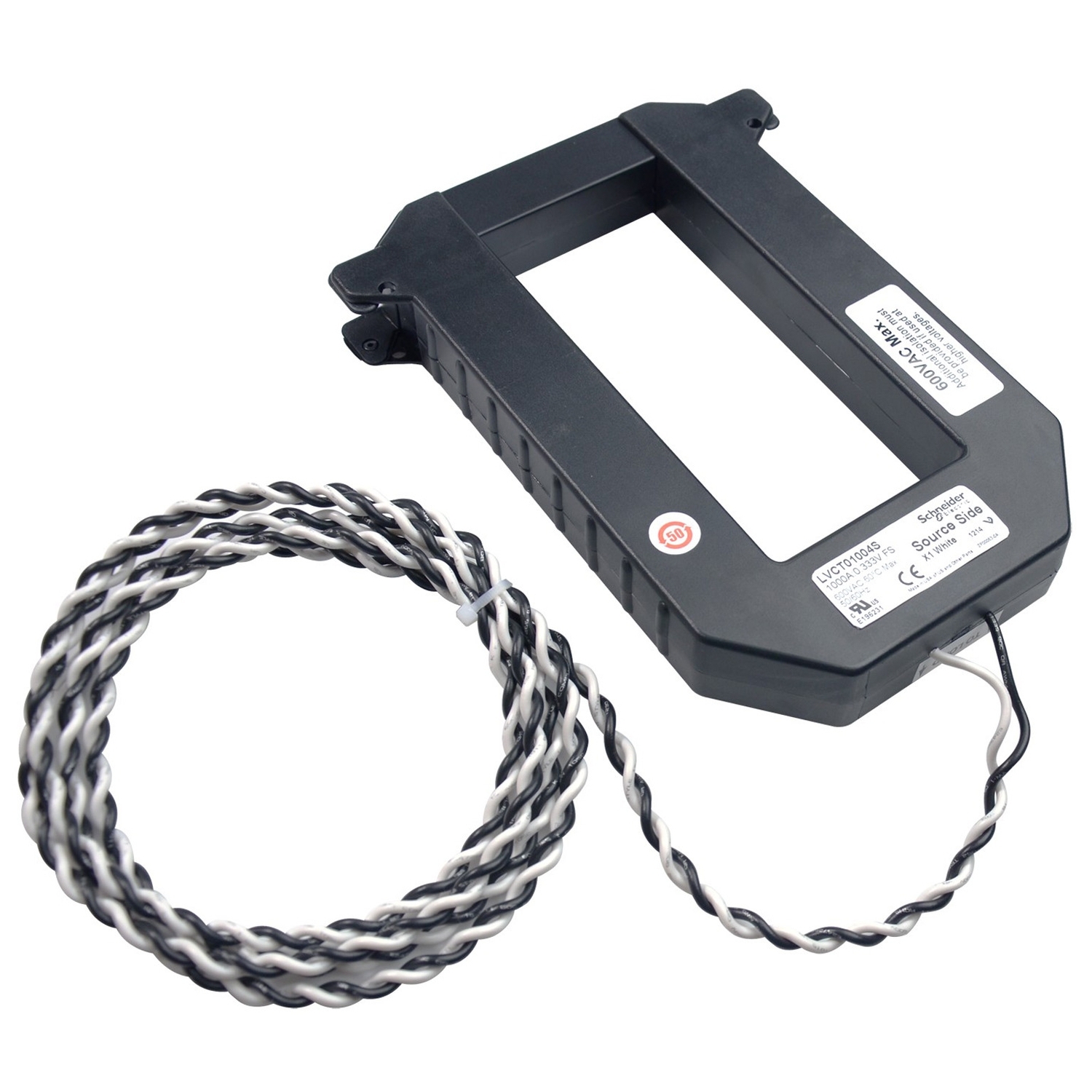

This low-voltage split-core current transformer is part of PowerLogic BCPM (Branch Circuit Power Meter). It is Ideal for retrofit applications with Schneider Electric energy meters which accept low voltage current transducer input It is rated for a 2000A circuit. 0.333 V output, size 4. Split core opening is 62 mm x 201 mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LVCT |
| Current transformer type | split core balance |
| [In] rated current | 2000 A |
| Output voltage | 0.333 V |
| Range | PowerLogic |
| Product or component type | current transformer |
| Accessory / separate part category | measurement accessory |
| Electrical connection | cable: 1.8 m (AWG 18) 600 V |
| Range of product | PowerLogic |
| Product destination | EM4900, EM4200, EM3500, iEM3000, Enercept, BCPMSC, BCPM |
| Network frequency | 50/60 Hz |
| Complementary | |
| Compatibility code | LVCT |
| Measurement accuracy | 1 % 10...100 % |
| Range compatibility | Acti 9 Acti9 iEM3000 iEM3465 energy meter, Acti 9 Acti9 iEM3000 iEM3455 energy meter, PowerLogic PowerLogic EM4900 EM4928 multi-circuit energy meter, PowerLogic PowerLogic EM4900 EM4914 multi-circuit energy meter, PowerLogic PowerLogic EM4900 EM4908 multi-circuit energy meter, PowerLogic PowerLogic EM4900 EM4904 multi-circuit energy meter, PowerLogic PowerLogic EM4200 EM4236 energy meter, PowerLogic PowerLogic EM4200 EM4235 energy meter, PowerLogic PowerLogic EM3500 EM3561 energy meter, PowerLogic PowerLogic EM3500 EM3560 energy meter, PowerLogic PowerLogic EM3500 EM3555 energy meter, PowerLogic PowerLogic EM3500 EM3550 energy meter, PowerLogic PowerLogic EM3500 EM3502 energy meter, PowerLogic PowerLogic BCPMSC BCPMSCE multi-circuit energy meter, PowerLogic PowerLogic BCPMSC BCPMSCB multi-circuit energy meter, PowerLogic PowerLogic BCPMSC BCPMSCA multi-circuit energy meter, PowerLogic PowerLogic BCPM BCPME multi-circuit energy meter, PowerLogic PowerLogic BCPM BCPMB multi-circuit energy meter, PowerLogic PowerLogic BCPM BCPMA multi-circuit energy meter |
| Environment | |
| Height | 201 mm external: , 139 mm internal: |
| Width | 151 mm external: , 62 mm internal: |
| Relative humidity | 95-95 % |
| Ambient air temperature for storage | -40-70 °C |
| Depth | 30 mm |
| Net weight | 0.87 kg |
| Ambient air temperature for operation | -15-60 °C |
