Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MCH |
| Device application | control |
| Range | MasterPacT |

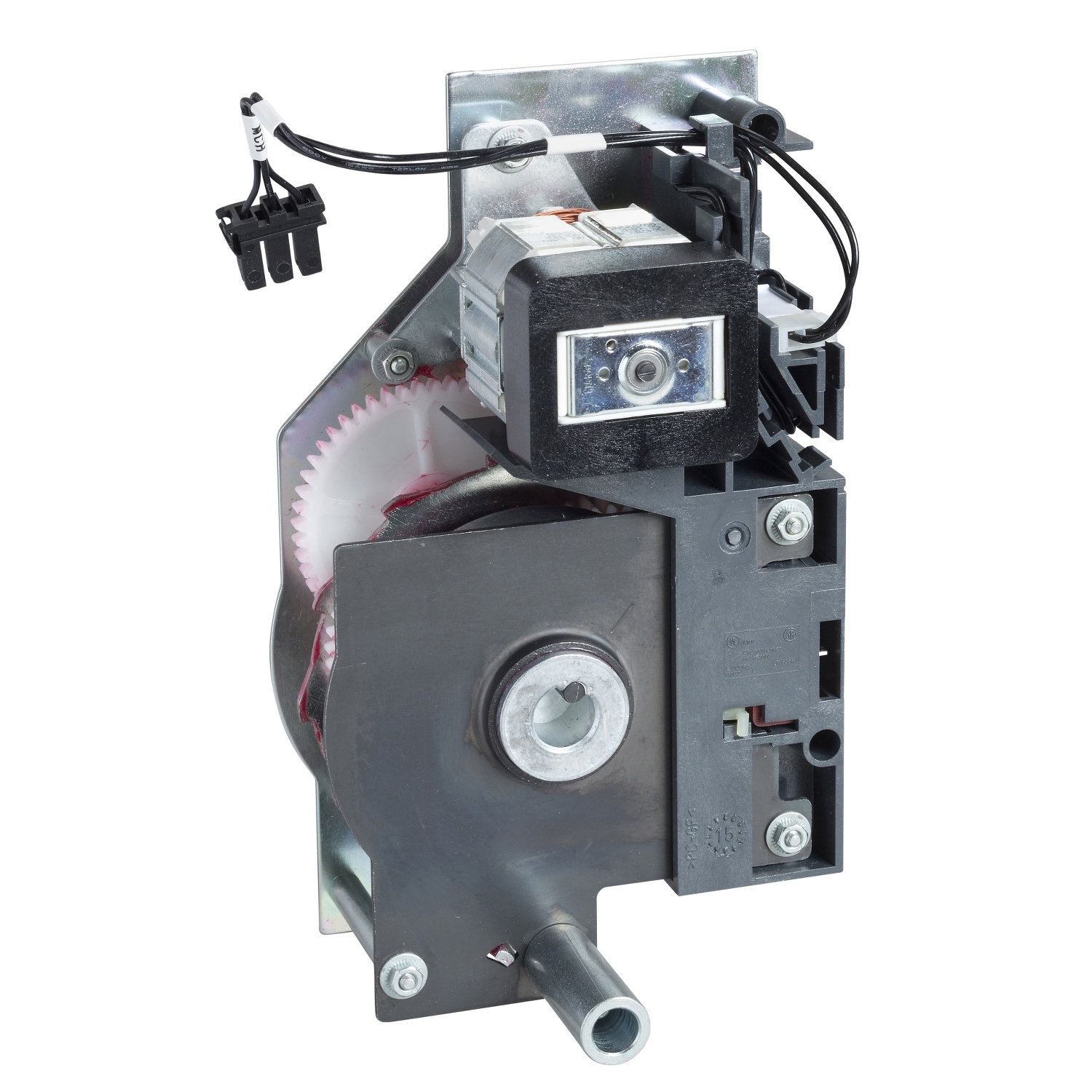

| Product or component type | motor mechanism |
| Range compatibility | Masterpact MasterPact MTZ3, Masterpact MasterPact MTZ2 |
| Complementary | |
| Maximum power consumption in VA | 180 VA |
| Maximum operating frequency | <= 3 cycles per minute |
| Threshold tripping voltage | 0.85...1.1 Un |
| Overcurrent protection | 2...3 x In 0.1 s |
| Rated voltage | limit switch contact at 240 V 10 A |
| Control type | standard |
| Maximum charging time | 4 s |
| [Uc] control circuit voltage | 24...30 V DC |
| Environment | |
| Offer type | spare part |
| Provided equipment | 1 instruction sheet |
