Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

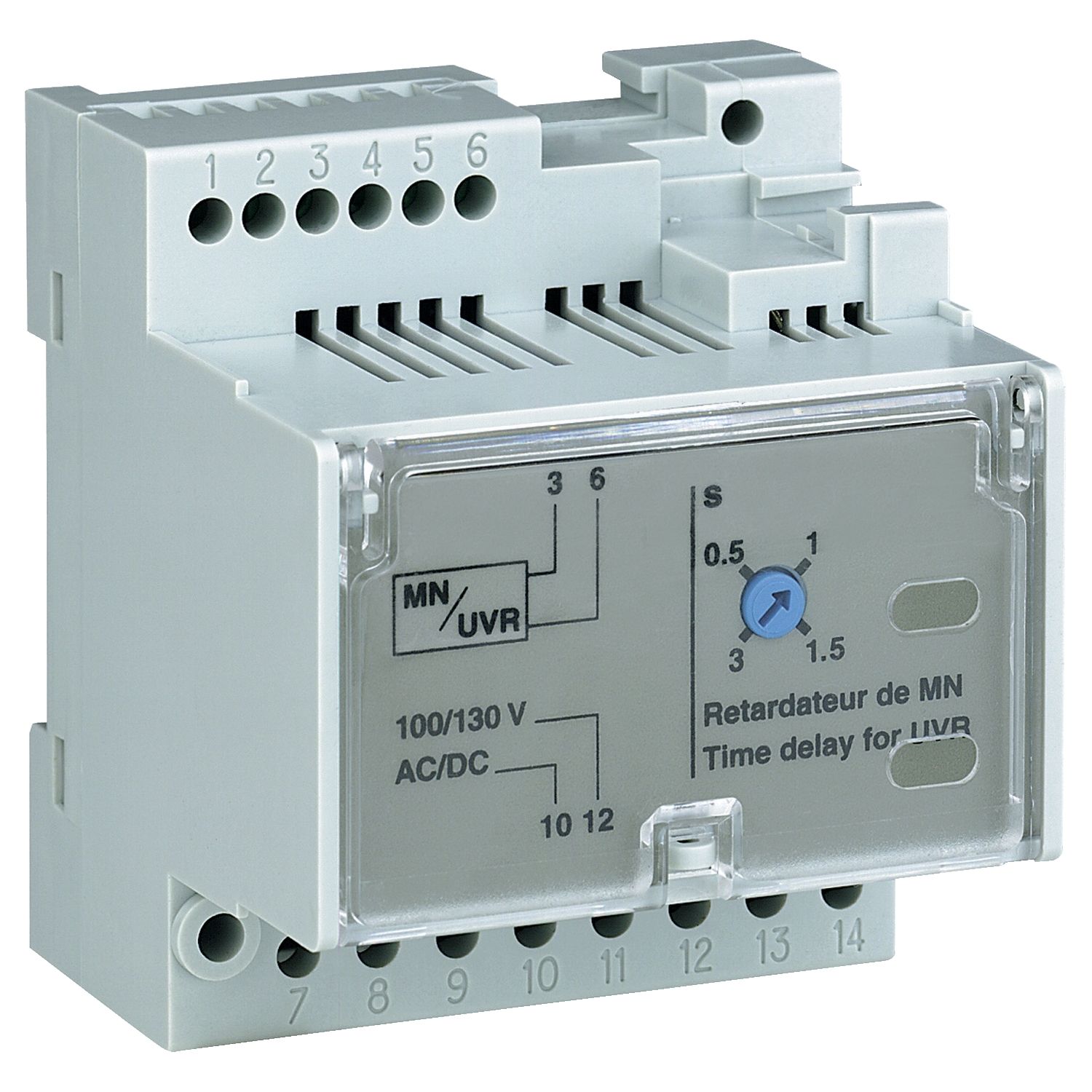

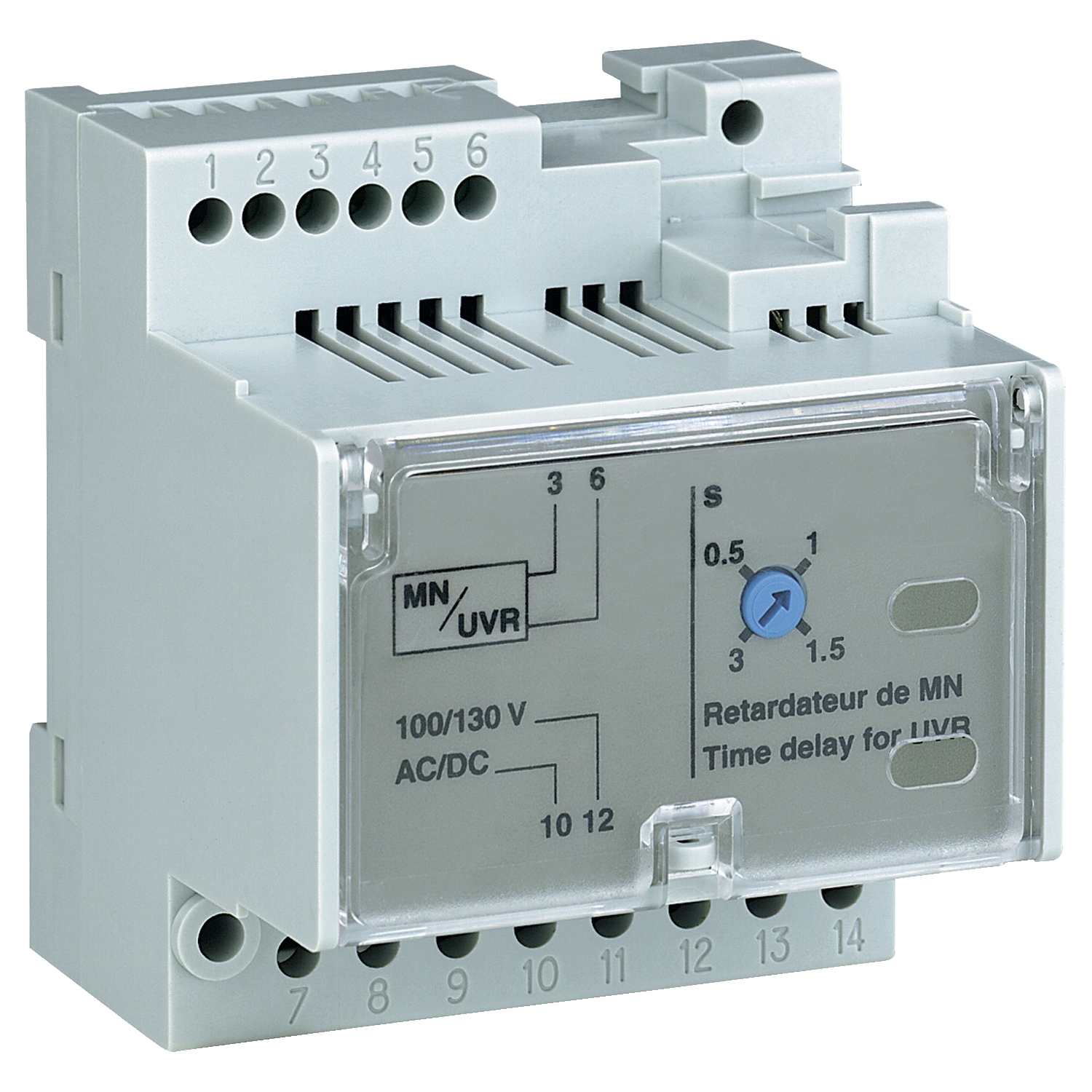

| Device short name | MN delay unit |
| Device application | control |
| Range | MasterPacT |
| Voltage release type | instantaneous |
| Product or component type | time delay auxiliary |
| Range compatibility | Masterpact MasterPact MTZ3 circuit breaker, Masterpact MasterPact MTZ2 circuit breaker, Masterpact MasterPact MTZ1 circuit breaker |
| Complementary | |
| Impulse duration | 200 ms |
| Supply inrush power | 200 VA |
| Offer type | spare part |
| Supply holding power | 4.5 VA |
| Threshold tripping voltage | 0.85 Un close, 0.35...0.7 Un open |
| Response time | 3 s, 1.5 s, 0.9 s, 0.5 s |
| Time delay range | 0.5...3 s |
| Provided equipment | 1 instruction sheet |
| [Uc] control circuit voltage | 200...250 V DC, 200...250 V AC 50/60 Hz |
Only registered users can write reviews
Related products

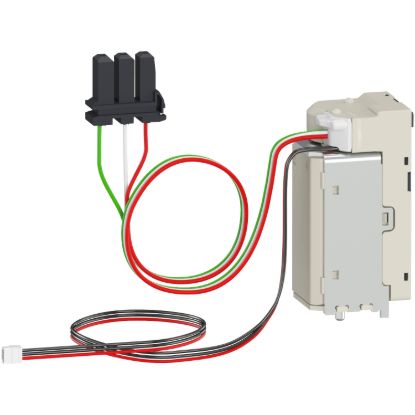

MN undervoltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 200/250VAC 50/60Hz, 200/250VDC, spare part
