Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | MasterPacT |

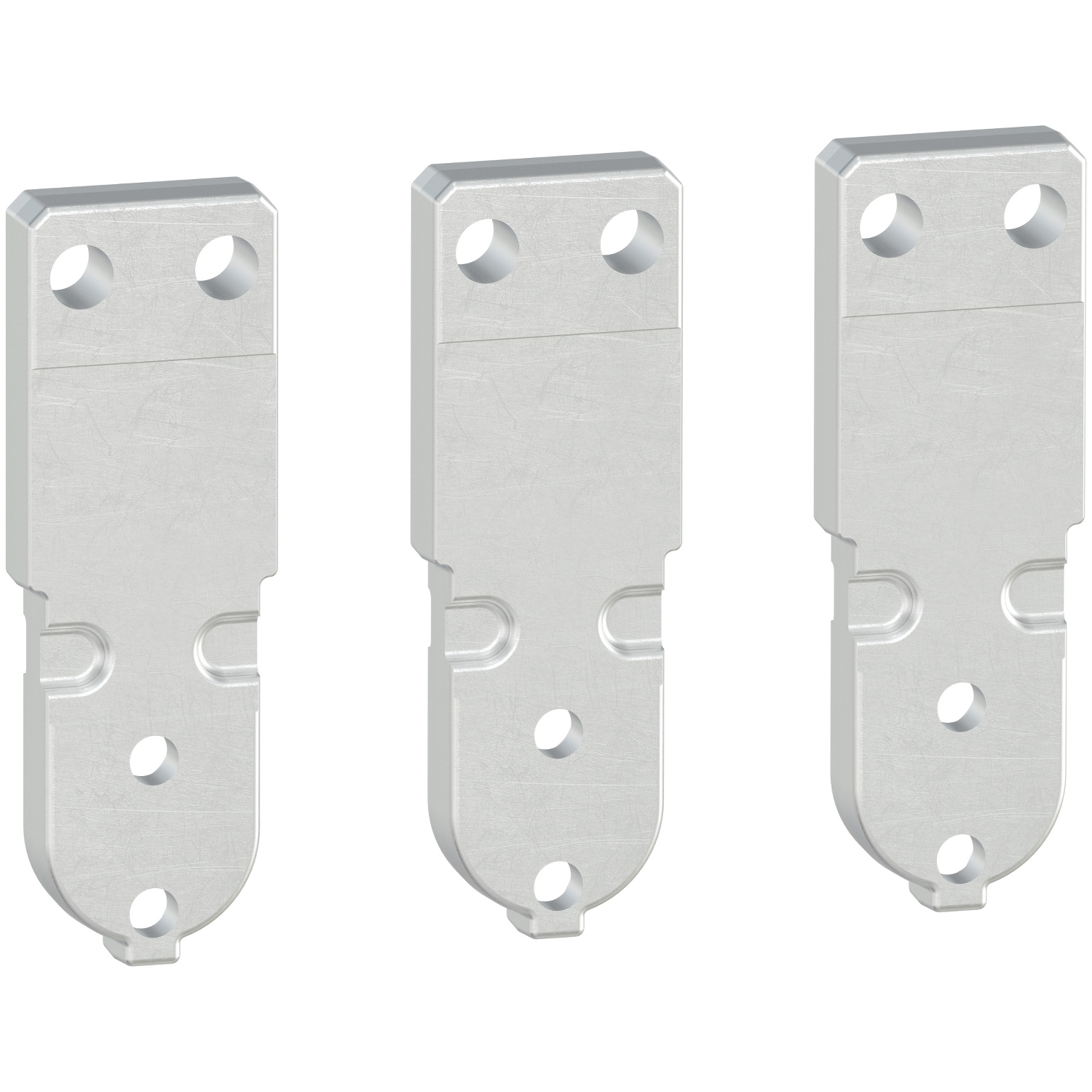

| Product or component type | front connection |
| [In] rated current | 250 A H1 drawout, 1600 A H2T drawout, 1600 A H3 drawout, 1600 A H2 drawout, 1600 A H1 drawout, 1250 A H3 drawout, 1250 A H2 drawout, 1250 A H1 drawout, 1000 A L1 drawout, 1000 A H3 drawout, 1000 A H2 drawout, 1000 A H1 drawout, 800 A L1 drawout, 800 A H3 drawout, 800 A H2 drawout, 800 A H1 drawout, 630 A L1 drawout, 630 A H3 drawout, 630 A H2 drawout, 630 A H1 drawout |
| Accessory / separate part category | connection accessory |
| Poles description | 3P |
| Range compatibility | Masterpact MasterPact MTZ1 MasterPact MTZ1 16 circuit-breaker, Masterpact MasterPact MTZ1 MasterPact MTZ1 12 circuit-breaker, Masterpact MasterPact MTZ1 MasterPact MTZ1 10 circuit-breaker, Masterpact MasterPact MTZ1 MasterPact MTZ1 08 circuit-breaker, Masterpact MasterPact MTZ1 MasterPact MTZ1 06 circuit-breaker, Masterpact MasterPact MTZ1 MasterPact MTZ1 02 circuit-breaker |
| Complementary | |
| Product compatibility | MasterPact MTZ1 06-10 L1, MasterPact MTZ1 06-16 H3, MasterPact MTZ1 16 H2T, MasterPact MTZ1 06-16 H2, MasterPact MTZ1 06-16 H1 |
| Location of connection | front |
| Offer type | spare part |
| Localisation on device | upside, downside |
| Provided equipment | 1 instruction sheet |
| Connection pitch | 70 mm |
| Mounting mode | drawout |
