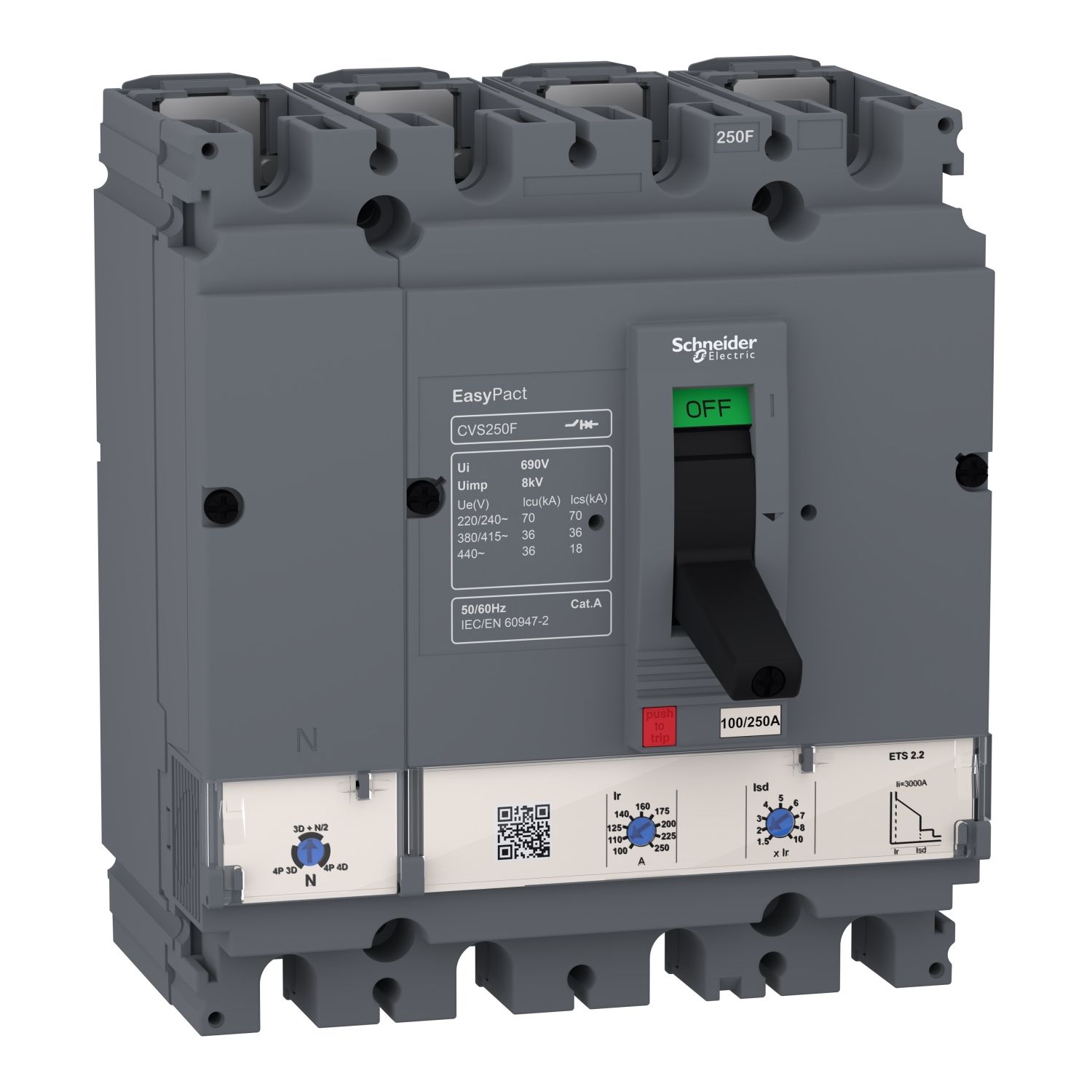

This device is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a ETS 2.2 electric trip unit. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS160F is compliant with international standards (IEC 60947, EN 60947, CCC, CB).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Trip unit technology | electronic |
| Device short name | CVS160F |
| Device application | distribution |
| Protection type | instantaneous short-circuit protection, overload protection (long time), short time short-circuit protection with fixed delay |
| Poles description | 4P |
| Breaking capacity | 70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Utilisation category | category A |
| Range | EasyPact |
| Product name | EasyPact CVS |
| Product or component type | circuit breaker |
| Protected poles description | 4D, 3D + N/2, 3D |
| Network type | AC |
| Earth-leakage protection | without |
| Range of product | EasyPact CVS100...250 |
| Trip unit name | ETS 2.2 |
| [In] rated current | 160 A at 40 °C |
| Complementary | |
| Short-time pick-up adjustment type Isd | adjustable 9 settings |
| Depth | 86 mm |
| Width | 140 mm |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-2 |
| [tsd] short-time delay adjustment range | 0.02-0.02 s |
| Neutral position | left |
| [Isd] short-time pick-up adjustment range | 1.5...10 x Ir |
| Compatibility code | CVS160 |
| Mechanical durability | 25000 cycles |
| Electrical durability | 12000 cycles 415 V In conforming to IEC 60947-2 |
| Mounting mode | fixed |
| Upside connection | front |
| Long time pick-up adjustment type Ir | adjustable 9 settings |
| Long time pick-up adjustment range | 63...160 A |
| Neutral protection setting | no protection (3D) |
| Short-time delay adjustment type | fixed |
| [tr] long-time delay adjustment range | 400-400 s at 1.5 x Ir, 16-16 s at 6 x Ir, 11-11 s at 7.2 x Ir |
| Control type | toggle |
| Net weight | 2.88 kg |
| Instantaneous pick-up adjustment type Ii | fixed |
| Long time delay adjustment type | fixed |
| Downside connection | front |
| Instantaneous pick-up adjustment range | 2400 A |
| Breaking capacity code | F |
| Mounting support | backplate |
| Contact position indicator | yes |
| Connection pitch | 35 mm |
| Height | 161 mm |
| Connections - terminals | screw connection |
| [Ics] rated service breaking capacity | 70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2, 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Network frequency | 50/60 Hz |
| Environment | |
| Ambient air temperature for storage | -50-85 °C |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Electrical shock protection class | class II |
| IP degree of protection | IP40 |
| Standards | EN 60947-2, IEC 60947-2 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | CB, CCC |
