Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | power supply |
| Range | MasterPacT |
| Range of product | ComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630 DC, ComPact NSX400...630, ComPact NSX100...250 DC, ComPact NSX100...250 |
| Accessory / separate part type | trip unit accessories, control units accessories |

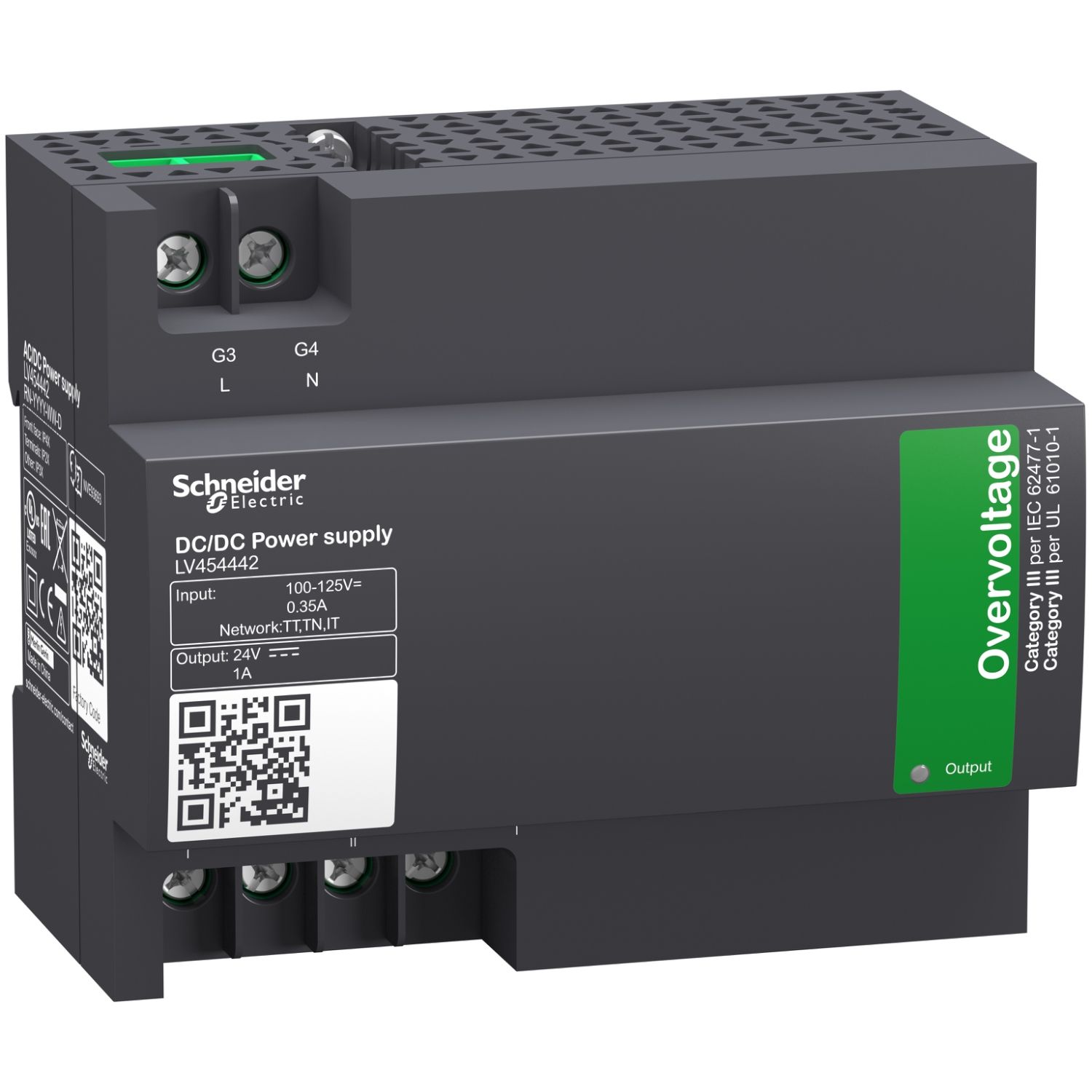

| Product or component type | external power supply module |
| Range compatibility | PowerPact PowerPact R, PowerPact PowerPact P, PowerPact PowerPact L, PowerPact PowerPact J, PowerPact PowerPact H, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600, ComPact ComPact NSX DC, ComPact ComPact NSX, Masterpact MasterPact NW, Masterpact MasterPact NT, Masterpact MasterPact MTZ |
| Complementary | |
| Inrush current | 20 A 2 ms |
| Operating position | horizontal |
| Rated power in W | 24 W |
| Width | 108 mm |
| Name of test | conducted emissions on the power line conforming to EN 61000-6-3, radiated emissions conforming to EN 61000-6-3, surge conforming to EN/IEC 61000-4-5, rapid transient conforming to IEC 61000-4-4, radiated electromagnetic field conforming to EN/IEC 61000-4-3, primary outage conforming to IEC 61000-4-29, magnetic field conforming to EN 61000-4-8, induced electromagnetic field conforming to EN/IEC 61000-4-6, electrostatic discharges conforming to EN/IEC 61000-4-2 |
| Power dissipation in W | 4.2 W |
| Input voltage limits | 80...150 V DC |
| Permissible temporary current boost | 1.5 A (200 ms) |
| Depth | 67.5 mm |
| Status LED | 1 LED (green) output voltage |
| Trip unit name | MicroLogic |
| [Us] rated supply voltage | 100...125 V DC tolerance: +/- 20 % |
| Operating altitude | 0...2000 m |
| Height | 90 mm |
| Overvoltage category | III conforming to UL 61010-1, III conforming to IEC 62477-1 |
| Power supply output current | 1 A |
| Output protection type | thermal, protection technology: automatic reset, against short-circuits, protection technology: manual reset, against overvoltage, protection technology: 30...32 V, manual reset, against overload, protection technology: manual reset |
| Connections - terminals | screw type terminals, connection capacity: 1 x 0.2...1 x 4 mm² AWG 24...AWG 12, screw type terminals, connection capacity: 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16 |
| Power supply type | regulated switch mode |
| Efficiency | 85 % |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail |
| Holding time | >= 20 ms 100...125 V DC |
| Output voltage | 24 V DC +/-5 % |
| Environment | |
| Compatibility code | CB_EXTERNAL_POWERSUPPLY |
| Relative humidity | 0-95 % in storage, 0-95 % during operation |
| Ambient air temperature for storage | -50-85 °C |
| IP degree of protection | IP3x (housing) conforming to EN/IEC 60529, IP2X (connection terminals) conforming to EN/IEC 60529, IP4X (front face) conforming to EN/IEC 60529 |
| Marking | CE, EAC, UL |
| Ambient air temperature for operation | -25-70 °C |
| Dielectric strength | 1840 V between output and ground, 3820 V between input and output, 3820 V between input and ground |
| Environmental characteristic | safety conforming to SELV, safety conforming to IEC 62477-1, EMC conforming to EN/IEC 61000-6-3, EMC conforming to EN/IEC 61000-6-2 |
| Standards | IEC 62477-1, UL 61010-1 |
