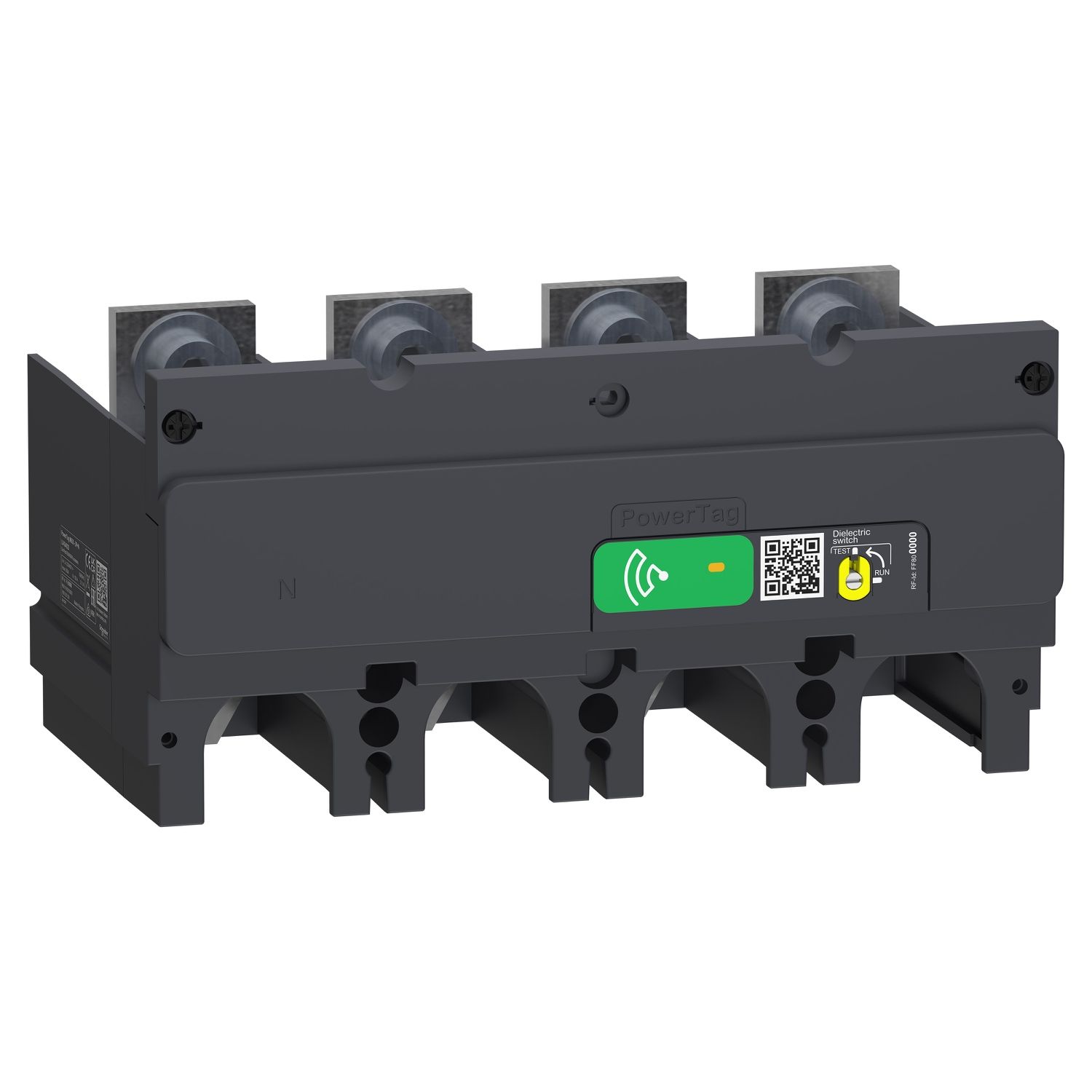

This PowerTag Energy M630 3P+N is a wireless communication energy sensor. With its Monoconnect design, it is dedicated to Compact NSX 400/630, Compact NS 400/630, Compact INS 320/400/500/630 and Compact INV 320/400/500/630. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active, and reactive energy, active, reactive and apparent power, current, voltage and power factor. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized. PowerTag Energy M630 complies with IEC 61557-12 standard. It is a PMD-II/DD/K70/1. The Performance category is Class 1. The Imax maximum current is 630A. The Ib Base current is 100A. The Saturation current is 1260A and the Ist Starting current is 400mA. The Un Rated voltages are Phase-to-neutral 230VAC +/- 20% and Phase-to-phase 400VAC +/- 20%. The maximum consumption is below or equal to 3.7VA. It can be mounted directly on the bottom side of the circuit breaker or Vigi add-on terminals, or top or bottom side of the plug-in base if any. The product color is grey (RAL7016). The weight is 1000g. The degree of protection is IP20 and IK07. The operating temperature is between -25°C to +70°C. The storage temperature is between -50°C to +85°C.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Connection pitch | 45 mm |
| Concentrator compatibility | PrismaSet Active, EcoStruxure Panel Server Advanced, EcoStruxure Panel Server Universal, Wiser IP module, Harmony Hub, Acti9 PowerTag Link HD, Acti9 PowerTag Link, Acti9 PowerTag Link C, Acti9 Smartlink SI D, Acti9 Smartlink SI B |
| Transmission support medium | radio frequency 2.4-2.4835 GHz conforming to IEEE 802.15.4 (11-26 ) transmission time < 5 ms |
| Metering type | frequency 45...65 Hz, reactive power Q, Q1, Q2, Q6 221 VAR...1048 kVAR: class 2 at 25 °C conforming to IEC 61557-12, active power P, P1, P2, P6 221 W...1048 kW: class 1 at 25 °C conforming to IEC 61557-12, apparent power S, S1, S2, S6 221 VA...1048 kVA: class 2 at 25 °C conforming to IEC 61557-12, current I1, I2, I3, Iavg 20...630 A: class 1 at 25 °C conforming to IEC 61557-12, voltage V1N, V2N, V3N 184...276 V: class 0.5 at 25 °C conforming to IEC 61557-12, voltage U12, U23, U31 320...480 V: class 0.5 at 25 °C conforming to IEC 61557-12, reactive energy Ep IN/OUT/tot 0...281 x 10exp(9) kVARh: class 2 at 25 °C conforming to IEC 61557-12, active energy Ep IN/OUT/tot 0...281 x 10exp(9) kWh: class 1 at 25 °C conforming to IEC 61557-12, power factor 0...1: class 1 at 25 °C conforming to IEC 61557-12 |
| [Ib] Basic current | 100 A |
| Range | PowerLogic |
| Event management | voltage loss with measured current at voltage loss |
| Max current | 630 A |
| Emission power | 10 mW |
| Accuracy class | class 1 power factor conforming to IEC 61557-12, class 0.5 voltage conforming to IEC 61557-12, class 1 current conforming to IEC 61557-12, class 2 apparent power conforming to IEC 61557-12, class 2 reactive power conforming to IEC 61557-12, class 1 active power conforming to IEC 61557-12, class 2 reactive energy conforming to IEC 61557-12, class 1 active energy conforming to IEC 61557-12 |
| Saturation current | 1260 A |
| Poles description | 3P + N |
| Product specific application | circuit monitoring, load monitoring, power factor, overload alarm, energy management |
| Mounting location | bottom |
| Product destination | switchboard |
| Product name | PowerTag M630 |
| Product or component type | energy sensor |
| Type of measurement | power factor, voltage, current, apparent power, active and reactive power, active and reactive energy |
| Starting current | 400 mA |
| Range compatibility | EasyPact EasyPact CVS630, EasyPact EasyPact CVS400, Compact NS Compact NS400/630, Compact INV Compact INV320...630, Compact INS Compact INS320...630, Compact NSX Compact NSX400...630 |
| Mounting support | on circuit breaker |
| Complementary | |
| Tightening torque | 50-50 N.m |
| Colour | dark grey (RAL 7016) |
| Width | 185 mm |
| [Imp] maximum permanent current | 1.2 x In |
| Depth | 110 mm |
| Standards | ETSI EN 300 328, IEC 61326-1, IEC 61010-2-030, ETSI EN 301 487-1, IEC 61010-1, IEC 61557-12 |
| Height | 91 mm |
| Power consumption in VA | 3.7 VA |
| Net weight | 1000 g |
| Form factor | monoconnect |
| [Ue] rated operational voltage | 400 V AC, +/- 20 %, between phases, 230 V AC, +/- 20 %, between phase and neutral |
| Network frequency | 60 Hz, 50 Hz |
| Mounting mode | bolt-on |
| Environment | |
| Measurement category | category III conforming to IEC 61010-2-030 |
| Relative humidity | 0-95 % at 55-55 °C conforming to IEC 60721-3-3 |
| Ambient air temperature for storage | -50-85 °C |
| Directives | 2014/53/EU - radio equipment directive |
| Pollution degree | 3 |
| Electromagnetic compatibility | electromagnetic emission conforming to IEC 62311, radiated EMC conforming to ETSI EN 301 489-17, industrial electromagnetic environment conforming to IEC 61326-1 |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK07 conforming to IEC 60068-2-75 test Ehb |
| Operating altitude | 0...2000 m |
| Quality labels | CE |
| Overvoltage category | IV conforming to IEC 61010-1 |
| Vibration resistance | 3M4 conforming to IEC 60721-3-3 |
| Environmental characteristic | indoor use |
