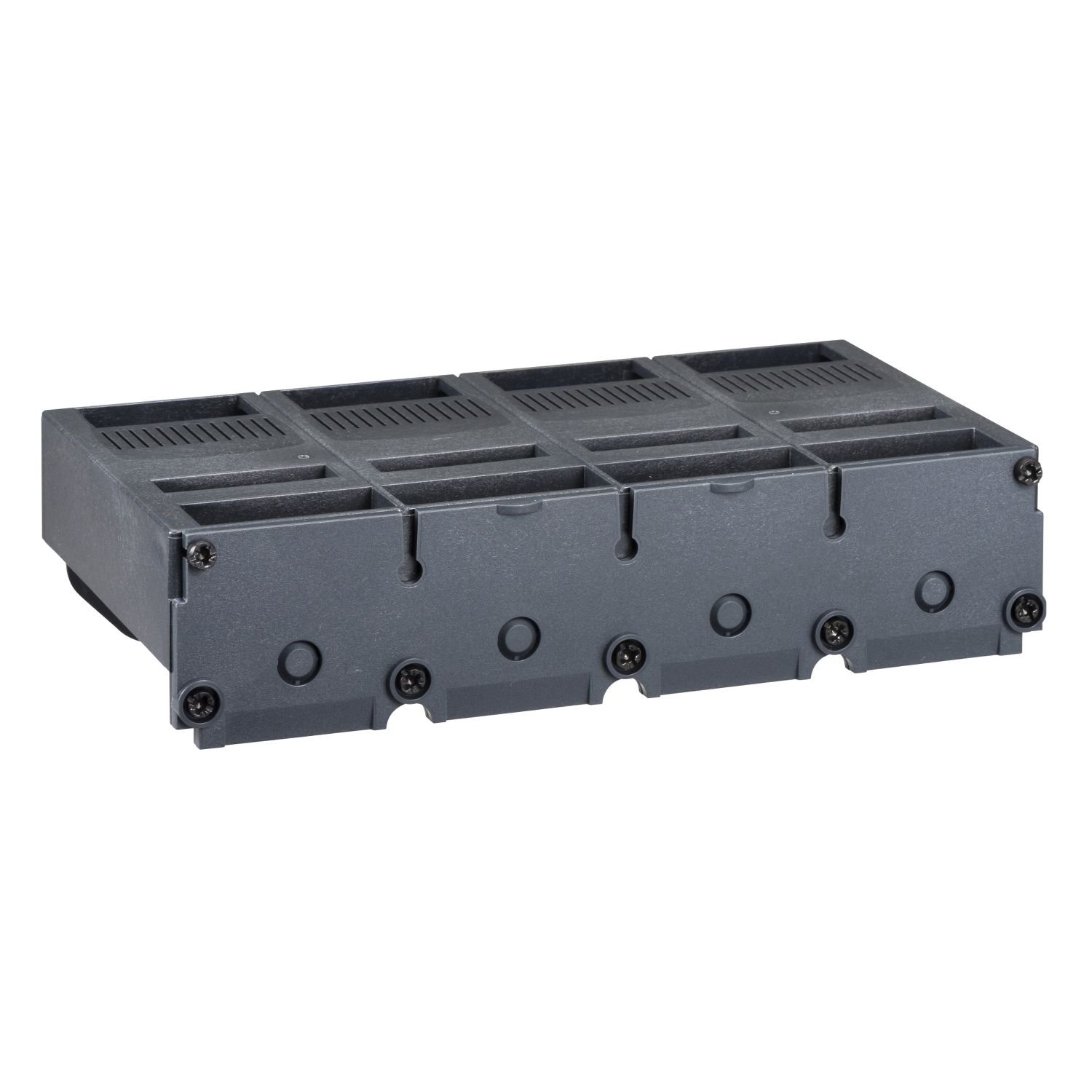

This is an insulation accessory for 4 poles Compact NSX 400/630 or EasyPact CVS 400/630. This short terminal shield protects against direct contact with power circuit It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. This version is for voltage superior or equal to 500VAC. It provides IP40 degree of protection and IK07 mechanical impact protection.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Ue] rated operational voltage | > 525 V |
| Accessory / separate part type | insulation accessories |
| Quantity per set | 1 |
| Poles description | 4P |
| Range | ComPacT |
| Product or component type | short terminal shield |
| Range compatibility | ComPact ComPact NSX630, ComPact ComPact NSX400, ComPacT new generation ComPacT NSX630 new generation, ComPacT new generation ComPacT NSX400 new generation |
| Range of product | ComPact NSX400...630, ComPacT NSX400...630 new generation |
| Complementary | |
| Compatibility code | terminal shields |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Connection pitch | 45 mm |
