Extended rotary handle, ComPacT NSX400/630 withdrawable, black handle, telescopic shaft length 272mm to 600mm, IP55
Manufacturer: Schneider Electric
SKU: LV432603T
GTIN: 3606482004146
Old price: $532.95 inc GST
$356.61 inc GST
Supported cards
Supported cards

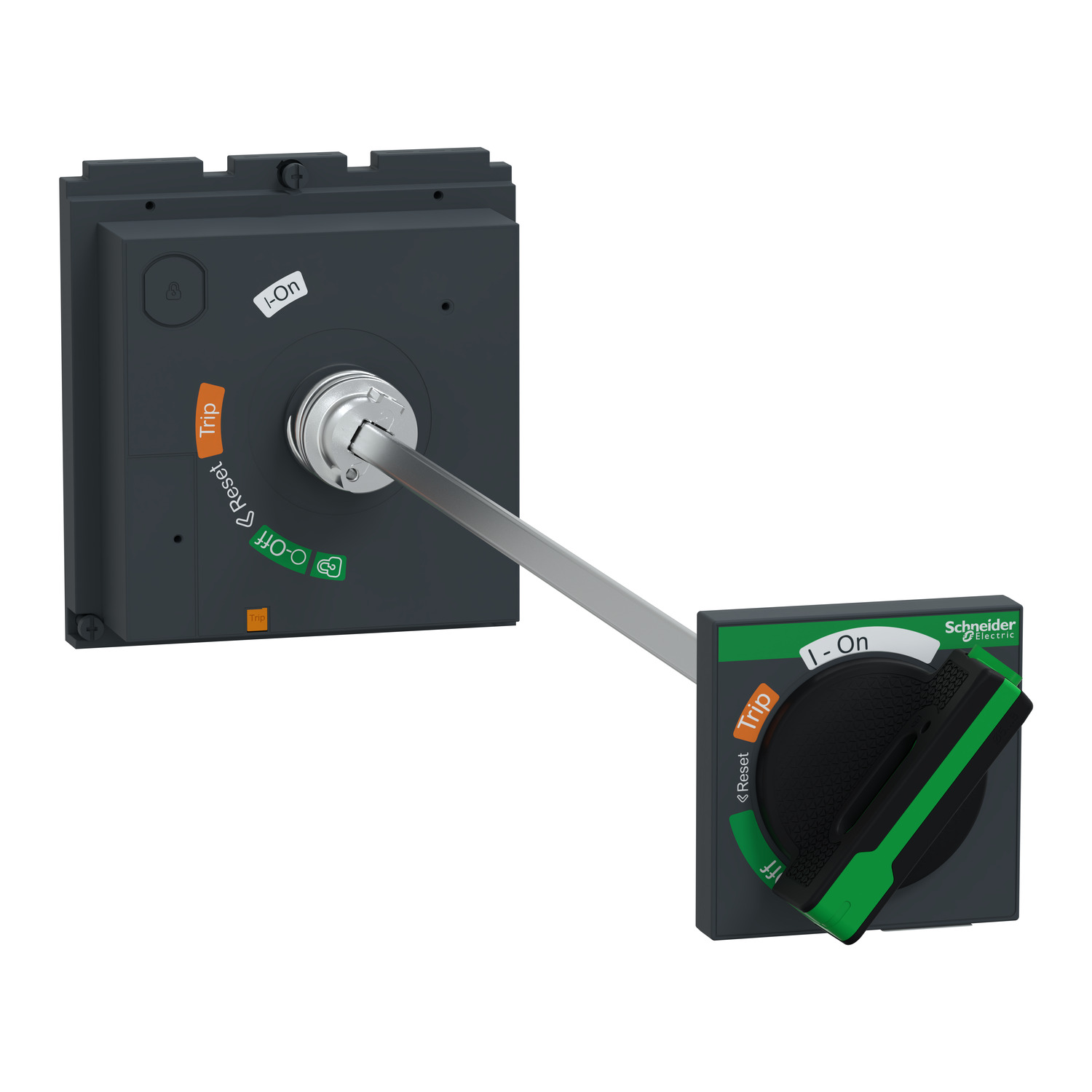

It is an extended rotary handle with a telescopic handle for ComPacT NSX 400/630 and PowerPact Multistandard L frames devices. It is suitable for isolation and it is used for standard applications for withdrawable devices. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. This telescopic version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 248mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Products specifications

Attribute name Attribute value
Main
Range of product ComPacT NSX400...630 new generation
Rotary handle mounting style telescopic
Accessory / separate part type control accessories
Product or component type rotary handle
Handle colour black
Handle front plate colour black
Complementary
Rotary handle mounting location front
Rotary handle padlocking 1 to 3 padlocks, padlock in OFF position
Range compatibility PowerPact PowerPact Multistandard, ComPacT new generation ComPacT NSX630 new generation, ComPacT new generation ComPacT NSX400 new generation
Environment
IP degree of protection IP55
