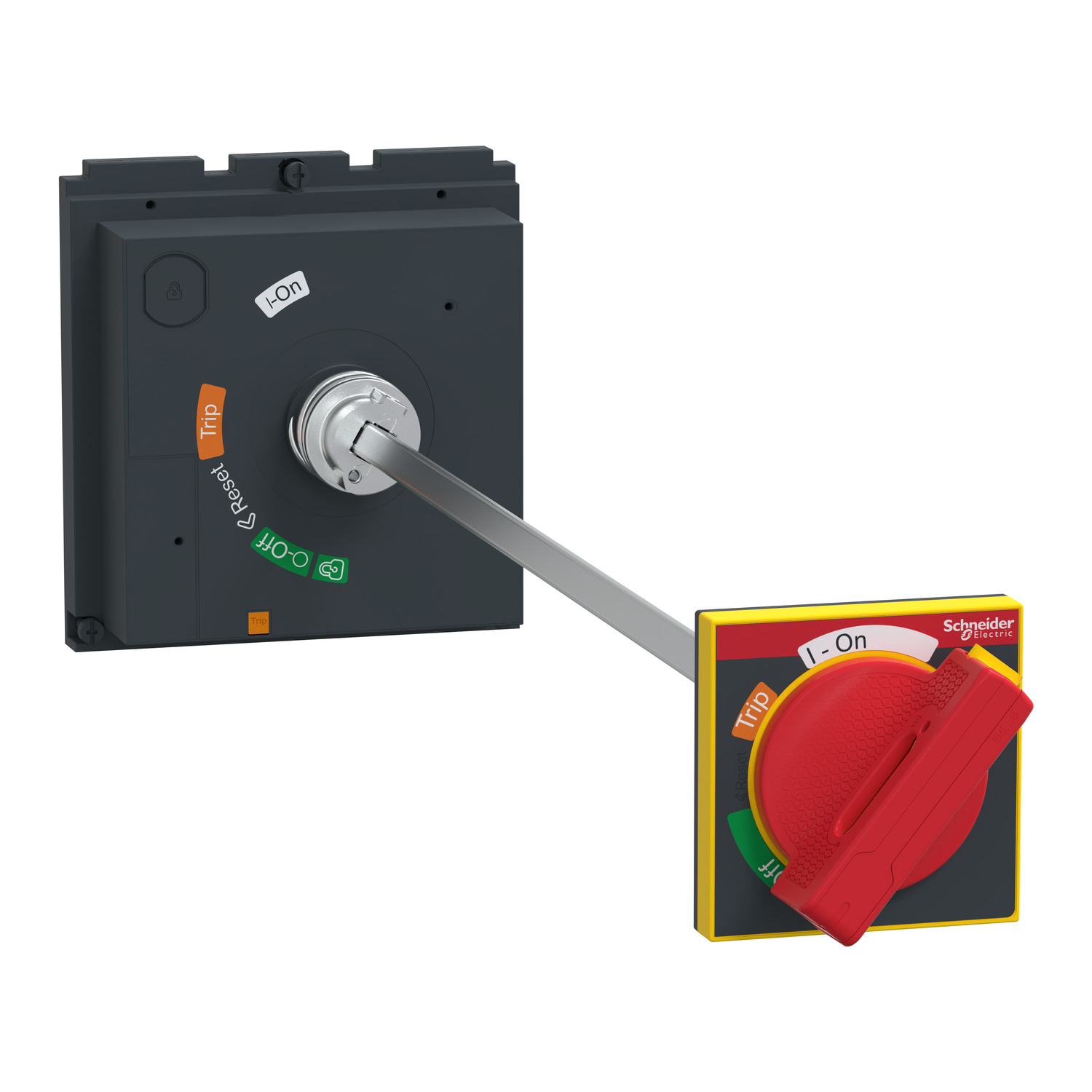

Extended rotary handle, ComPacT NSX400/630, red handle/yellow front, shaft length 209mm to 600mm, IP55
Manufacturer: Schneider Electric
SKU: LV432600T
GTIN: 3606482004139
Old price: $456.50 inc GST
$305.46 inc GST
Supported cards
Supported cards
It is an extended rotary handle for ComPacT NSX 400/630 and PowerPact Multistandard L frames devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a red handle on yellow front. There is an indication of the three device positions O (OFF), I (ON) and tripped. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Products specifications

Attribute name Attribute value
Main
Range of product ComPacT NSX400...630 new generation
Rotary handle mounting style extended
Accessory / separate part type control accessories
Product or component type rotary handle
Handle colour red
Handle front plate colour yellow
Complementary
Compatibility code extended rotary handle
Rotary handle mounting location front
Rotary handle padlocking padlock in OFF position, 1 to 3 padlocks
Range compatibility TeSys TeSys GV6, PowerPact PowerPact Multistandard, ComPacT new generation ComPacT NSX630 new generation, ComPacT new generation ComPacT NSX400 new generation
Environment
IP degree of protection IP55
