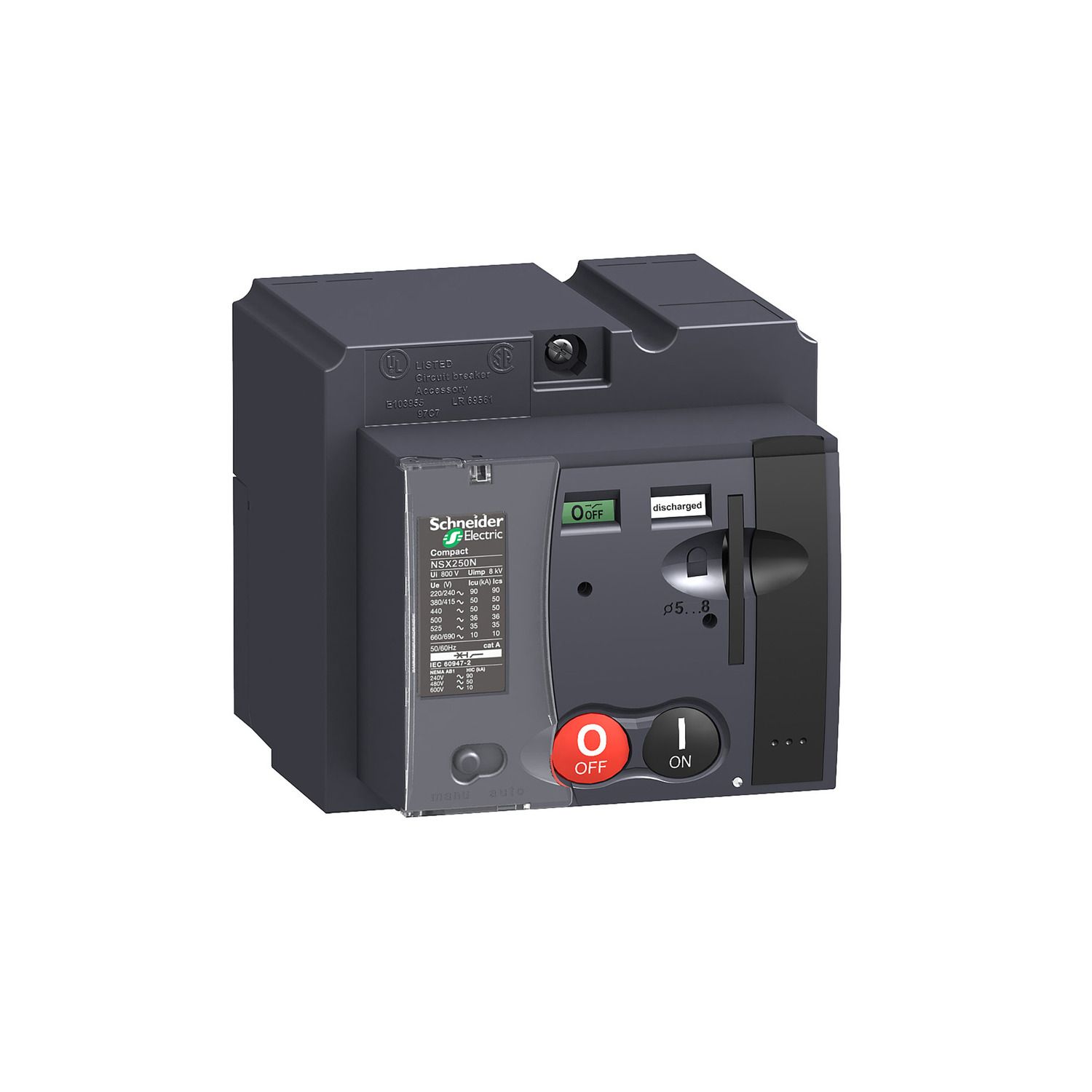

This is a standard motor mechanism for Compact NSX 250 and PowerPact Multistandard J frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 110VDC to 130VDC. The consumption is less than 500W. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MT250 |
| Device application | automatic spring charging |
| Mounting mode | fixed |
| Control type | standard |
| Range | ComPacT |
| Range of product | ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation |
| [In] rated current | 250 A |
| Product or component type | motor mechanism |
| Range compatibility | ComPacT new generation ComPacT NSX DC new generation NSX250 DC, ComPacT new generation ComPacT NSX250 new generation |
| [Uc] control circuit voltage | 110...130 V DC |
| Complementary | |
| Provided equipment | SDE adaptor |
| Control signal type | impulse, maintained |
| Locking options description | padlocking in OFF position, 1 to 3 padlocks Ø 5 to Ø 8 |
| Maximum power consumption in W | 500 W - opening, 500 W - closing |
| Maximum operating frequency | 4 per minute |
| Response time | < 80 ms closed, < 700 ms open |
