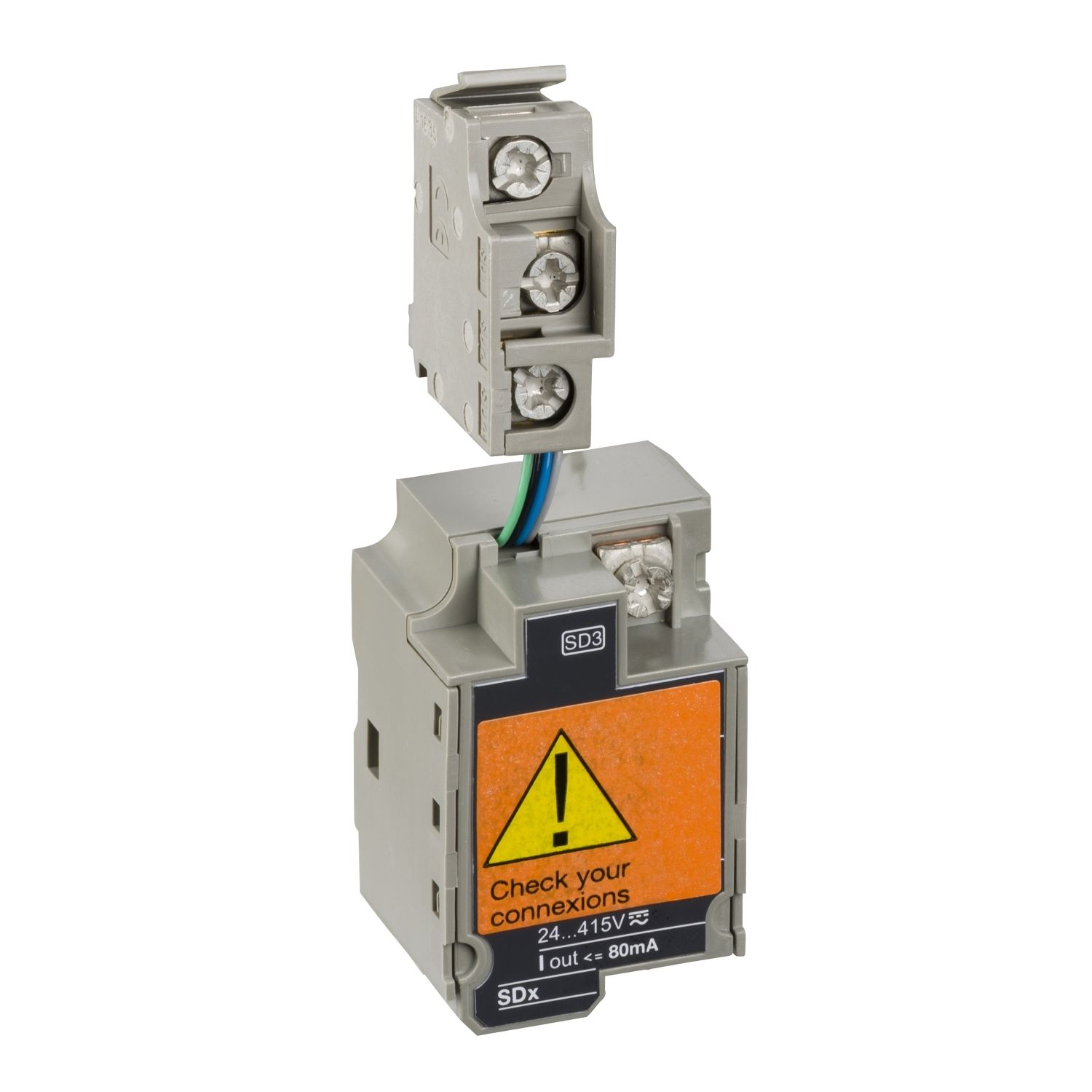

This is a relay module with two outputs that remotes the trip or alarm conditions of ComPacT NSX circuit breakers equipped with a MicroLogic electronic trip unit. These two outputs automatically reset when the device is closed (turned ON). It is possible to assign a latching function with a time delay. It is also possible to assign a permanent latching function.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SDX output modules |
| Device application | control |
| Range | ComPacT |
| Product or component type | SDX output module |
| Accessory / separate part category | relay accessory |
| Range compatibility | ComPact ComPact NSX circuit breaker |
| Range of product | ComPact NSX100...250, ComPact NSX400...630 |
| Trip unit name | MicroLogic 7.3 E, MicroLogic 7.2 E, MicroLogic 6.3 E, MicroLogic 6.3 A, MicroLogic 6.2 E, MicroLogic 6.2 A, MicroLogic 5.3 E, MicroLogic 5.3 A, MicroLogic 5.2 E, MicroLogic 5.2 A, MicroLogic 4.3, MicroLogic 4.2, MicroLogic 2.3, MicroLogic 2.2 |
| Complementary | |
| [Us] rated supply voltage | 24...415 V DC, 24...415 V AC 50/60 Hz |
| Maximum [In] rated current | 0.08 A |
