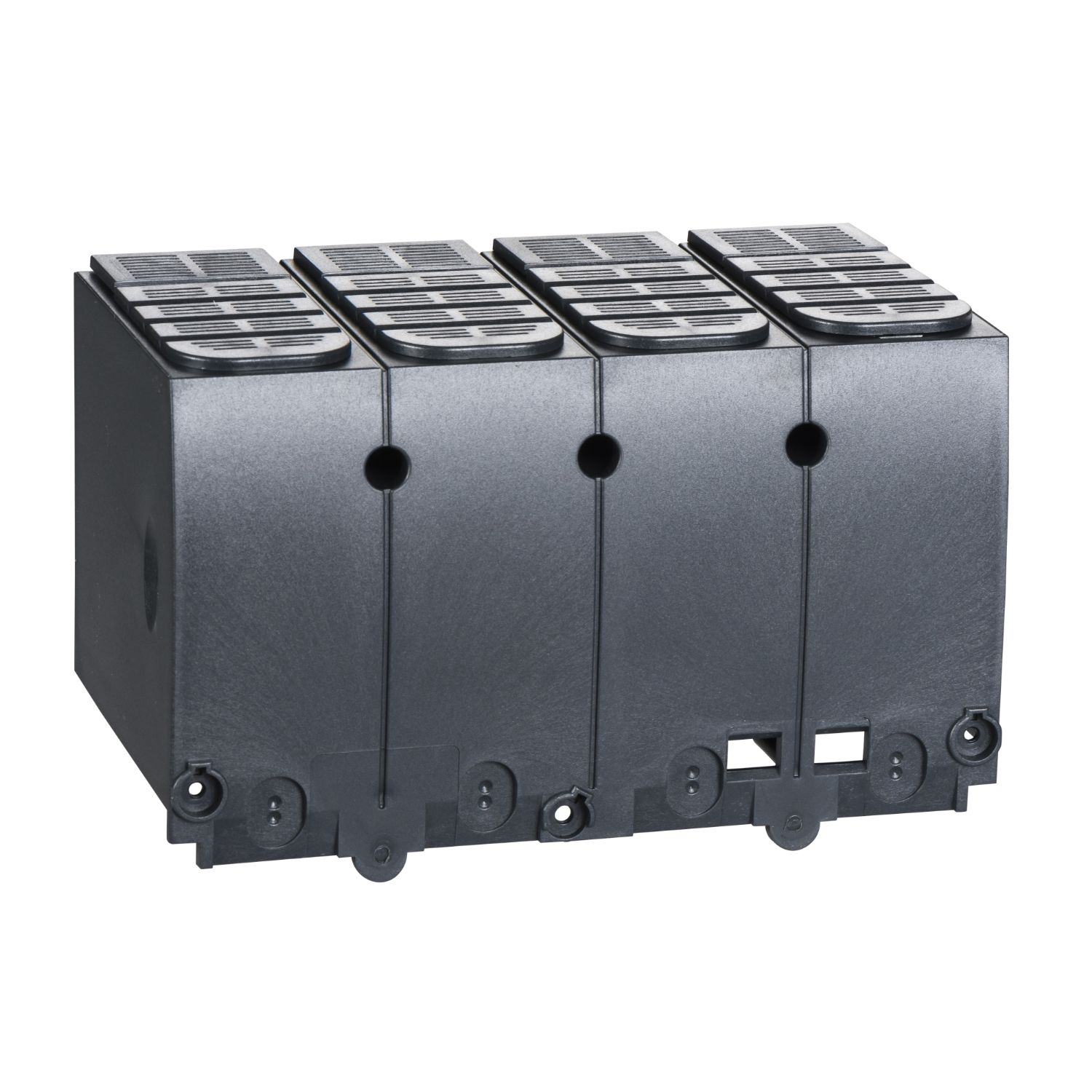

This is an insulation accessory for 4 poles Compact NSX 100/160/250 or EasyPact CVS 100/160/250. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 35mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part type | insulation accessories |
| Quantity per set | 1 |
| Poles description | 4P |
| Range | ComPacT |
| Product or component type | long terminal shield |
| Range compatibility | ComPact Compact INV100...250, ComPact INS250, EasyPact EasyPact CVS250, EasyPact EasyPact CVS160, EasyPact EasyPact CVS100, ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPacT new generation ComPacT NSX DC new generation NSX250 DC, ComPacT new generation ComPacT NSX DC new generation NSX160 DC, ComPacT new generation ComPacT NSX DC new generation NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100, ComPacT new generation ComPacT NSX250 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation |
| Range of product | ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation |
| Complementary | |
| Product compatibility | plug-in base, circuit-breaker |
| Compatibility code | terminal shields |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Connection pitch | 35 mm |
