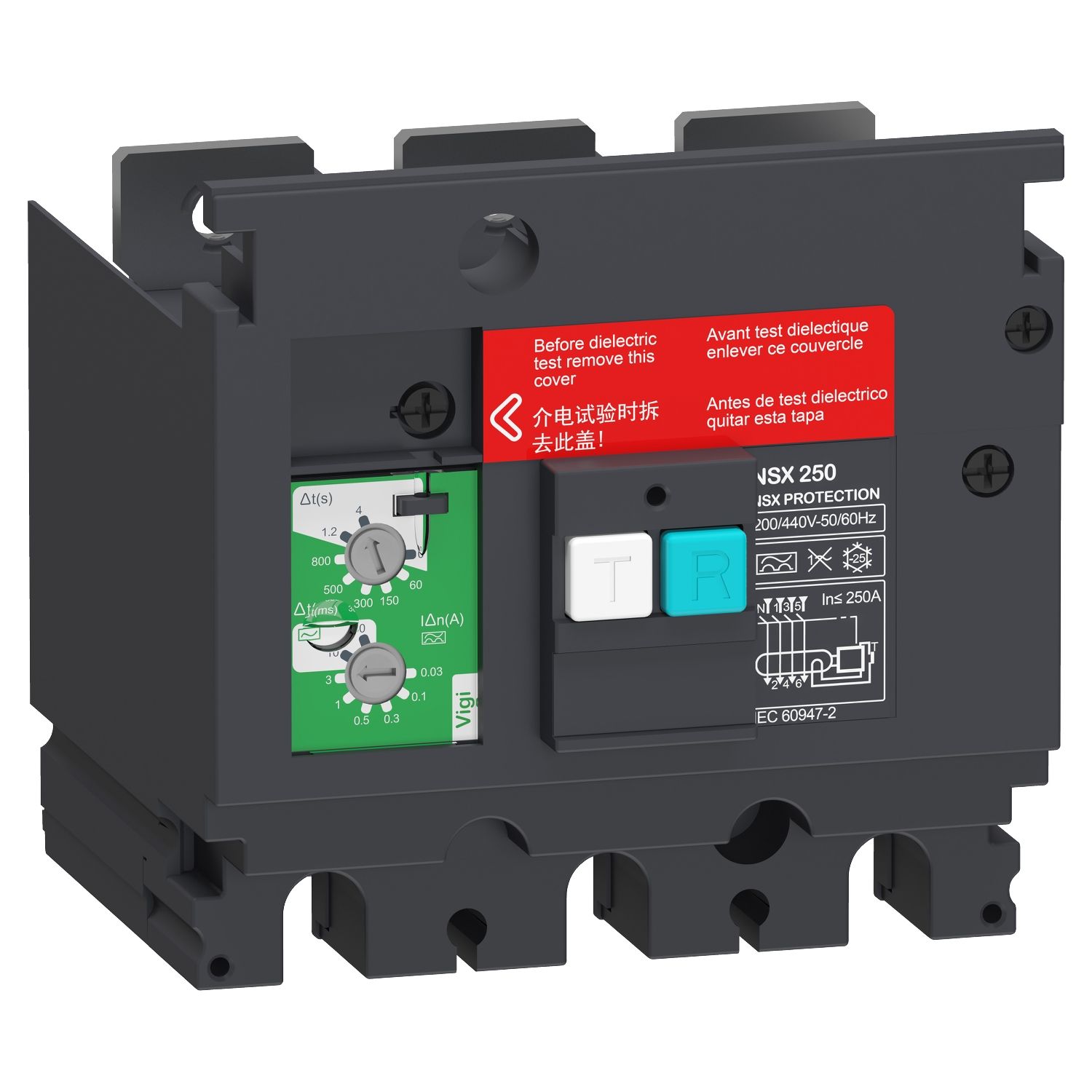

This is a Vigi add-on module for ComPact NSX 250 that provides an earth-leakage protection. It is used for 3 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | VigiPacT |
| Device application | wiring |
| Earth-leakage protection class | class AC, class A |
| Range of product | ComPact NSX100...250, ComPacT NSX100...250 new generation |
| Residual earth-leakage time delay adjustment type | adjustable |
| Poles description | 3P |
| Residual earth-leakage sensitity adjustment type | adjustable |
| [Δt] residual earth-leakage time delay adjustment | 4-4 s, 1.2-1.2 s, 800-800 ms, 500-500 ms, 300-300 ms, 150-150 ms, 60-60 ms, 0-0 ms |
| Product or component type | Vigi add-on |
| Earth-leakage sensitivity | 30 A for class AC, 10 A for class AC, 3 A for class A, 1 A for class A, 0.5 A for class A, 0.3 A for class A, 0.1 A for class A, 0.03 A for class A |
| Range compatibility | ComPact ComPact NSX250 circuit breaker, ComPacT new generation ComPacT NSX250 new generation circuit breaker |
| [In] rated current | 250 A |
| Complementary | |
| Earth-leakage protection | with |
| Overvoltage category | IV |
| Maximum breaking time | 800 ms |
| Network type | AC |
| [Ue] rated operational voltage | 200...440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Network frequency | 50/60 Hz |
| Environment | |
| Electrical shock protection class | class II |
| Standards | IEC 60947-2 |
