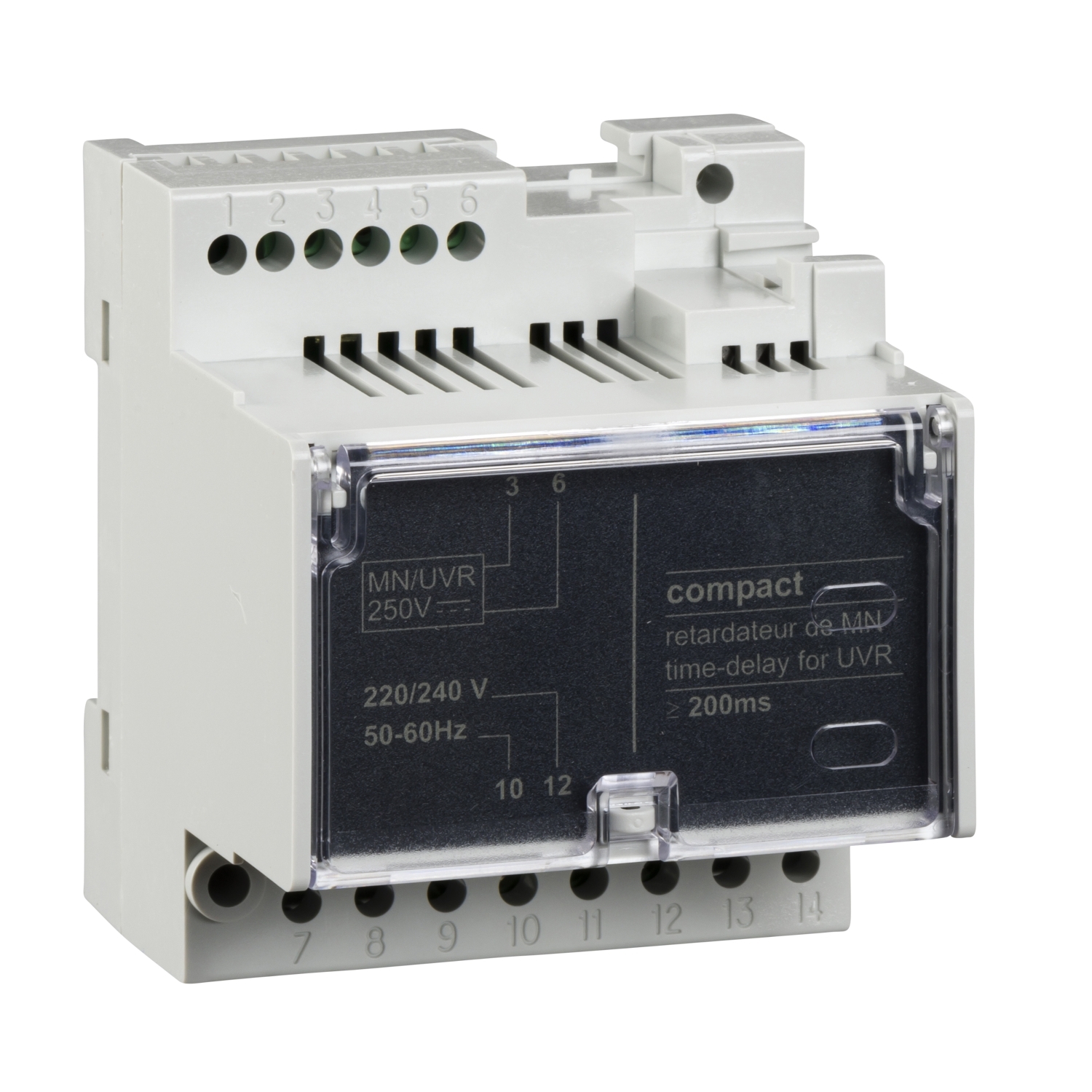

This time delay unit is an auxiliary that can be combined with an undervoltage release (MN). It must be associated with a 250VDC MN undervoltage release. It eliminates the risk of nuisance tripping due to transient voltage dips lasting from 200ms to 3s. Its power supply is 220/240VAC 50/60Hz. This time delay unit is fixed to 200ms. It is an external accessory and can be mounted in the switchboard.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MN delay unit |
| Device application | control |
| Voltage release type | undervoltage release |
| Range | ComPacT |
| Product or component type | time delay relay |
| Range compatibility | ComPact ComPact NSXm, EasyPact EasyPact CVS, ComPact ComPact NSX DC, PowerPact PowerPact Multistandard, ComPact ComPact NSX |
| Range of product | ComPact NSXm, ComPact NSX400...630 DC, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX100...250 |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz |
| Complementary | |
| Threshold tripping voltage | 0.85 x Un closing, 0.35...0.7 x Un opening |
| Response time | <= 200 ms |
| Mounting mode | external mounting |
| Time delay range | 200 ms |
| Impulse duration | 200 ms |
| Supply inrush power | 200 VA |
| Supply holding power | 4.5 VA |
