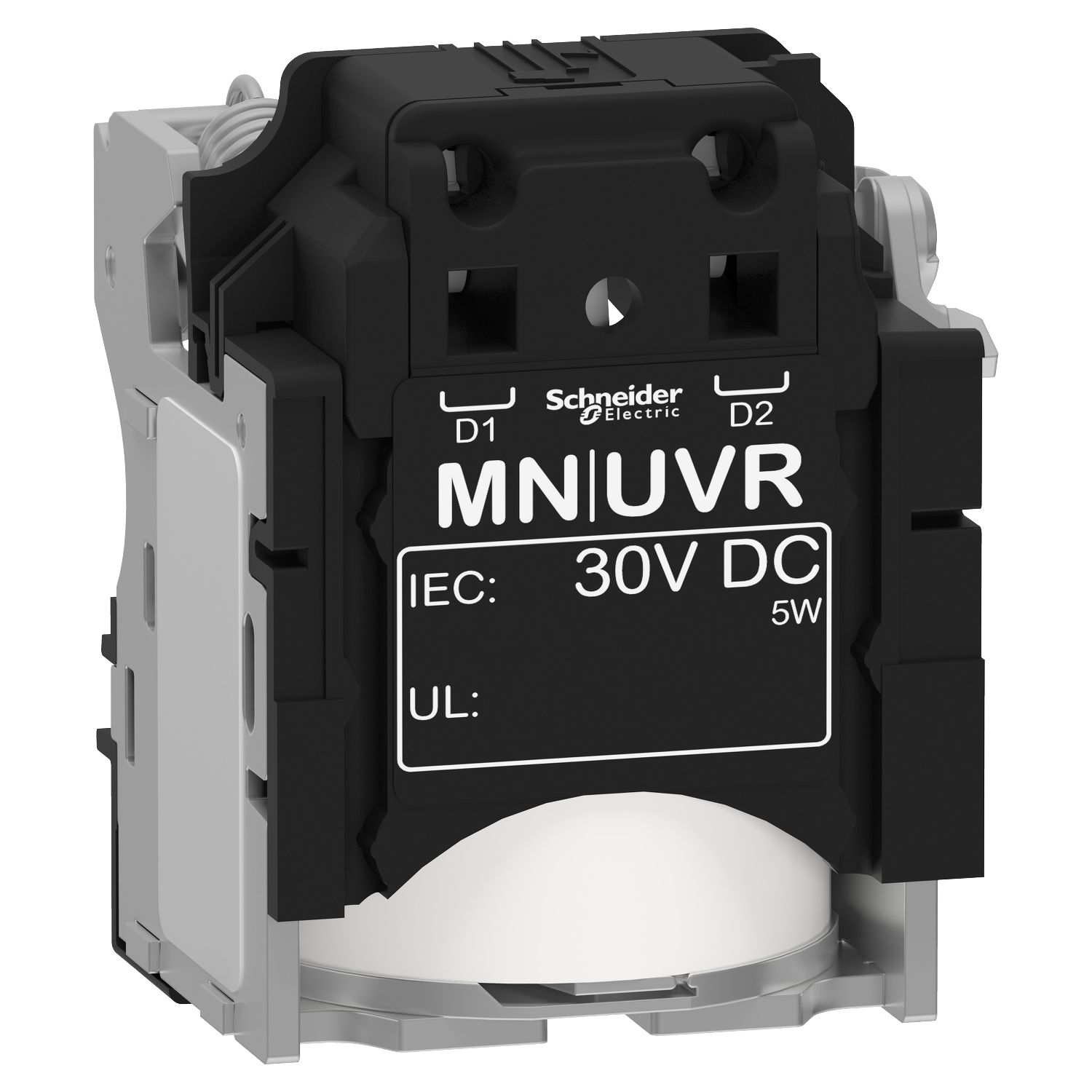

This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 30 VDC. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MN |
| Device application | control |
| Range | ComPacT |
| Range of product | ComPacT NSX400...630 DC PV new generation, ComPact NSX400...630 DC PV, ComPacT NSX400...630 DC new generation, ComPact NSX400...630 DC, ComPacT NSX100...250 DC PV new generation, ComPact NSX100...250 DC PV, ComPacT NSX100...250 DC new generation, ComPact NSX100...250 DC, ComPacT NSX400...630 new generation, ComPact NSX400...630, ComPacT NSX100...250 new generation, ComPact NSX100...250 |
| Voltage release type | undervoltage release, opening coil |
| Product or component type | voltage release |
| Range compatibility | PowerPact PowerPact Multistandard, EasyPact EasyPact CVS, ComPact ComPact NSX DC, ComPact ComPact NSX, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX new generation |
| [Uc] control circuit voltage | 30 V DC |
| Complementary | |
| Wire stripping length | 7 mm |
| Supply inrush power | 10 W |
| Auxiliary connection terminal | spring 0.5-1.5 mm² (AWG 20...AWG 16) |
| Supply holding power | 5 W |
| Threshold tripping voltage | 0.85 x Un closing, 0.35...0.7 x Un opening |
| Response time | 50 ms |
