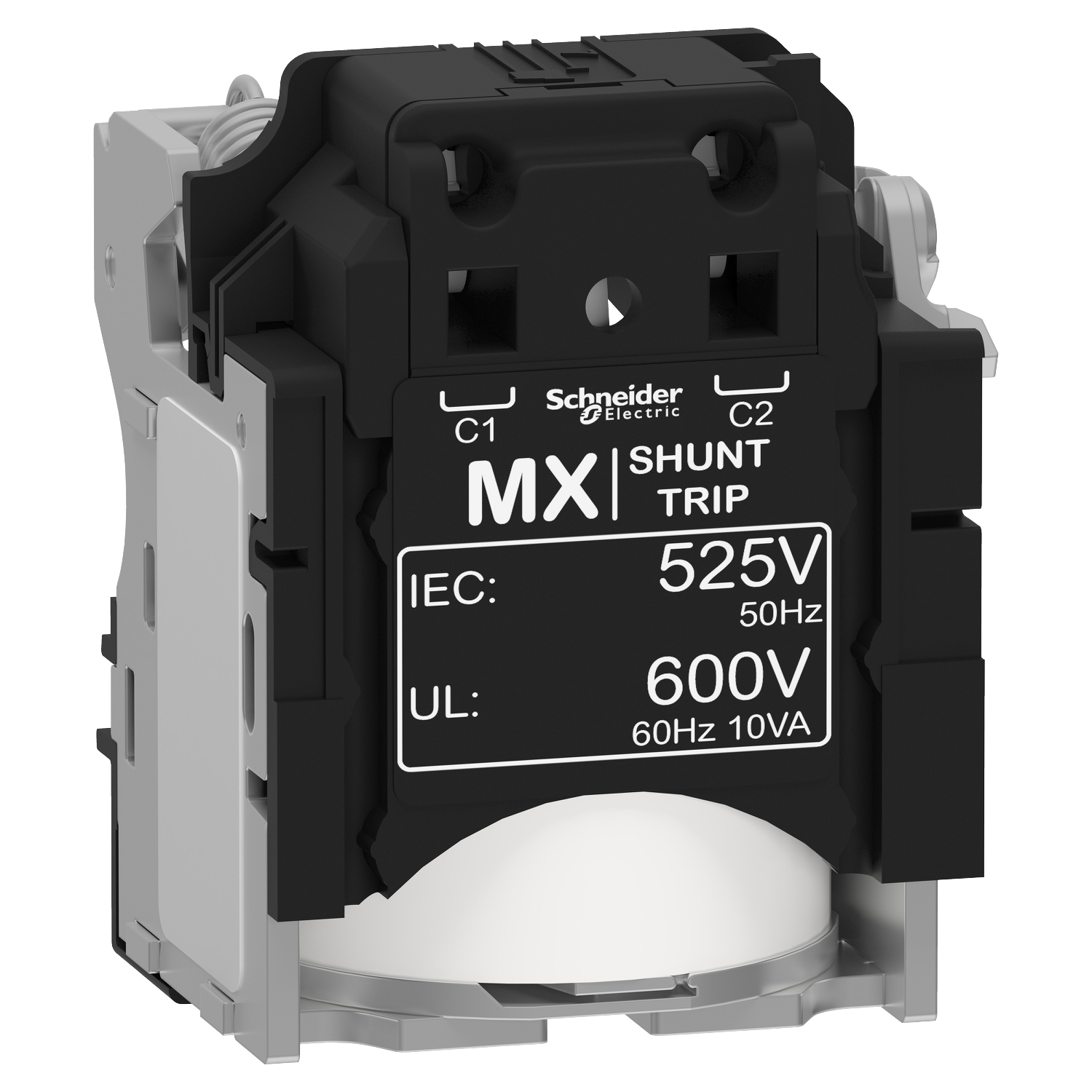

This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 525 VAC 50 Hz, or 600 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | control |
| Voltage release type | shunt trip release, opening coil |
| Range compatibility | PowerPact PowerPact Multistandard, EasyPact EasyPact CVS, ComPact ComPact NSX DC, ComPact ComPact NSX, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX new generation |
| Device short name | MX |
| Range | ComPacT |
| Range of product | ComPacT NSX400...630 DC PV new generation, ComPact NSX400...630 DC PV, ComPacT NSX400...630 DC new generation, ComPact NSX400...630 DC, ComPacT NSX100...250 DC PV new generation, ComPact NSX100...250 DC PV, ComPacT NSX100...250 DC new generation, ComPact NSX100...250 DC, ComPacT NSX400...630 new generation, ComPact NSX400...630, ComPacT NSX100...250 new generation, ComPact NSX100...250 |
| Product or component type | voltage release |
| [Uc] control circuit voltage | 600 V AC 60 Hz, 525 V AC 50 Hz |
| Complementary | |
| Control signal type | impulse, maintained |
| Threshold tripping voltage | 0.7...1.1 x Un opening |
| Impulse duration | >= 20 ms |
| Wire stripping length | 7 mm |
| Supply inrush power | 10 VA |
| Auxiliary connection terminal | spring 0.5-1.5 mm² (AWG 20...AWG 16) |
| Response time | 50 ms |
