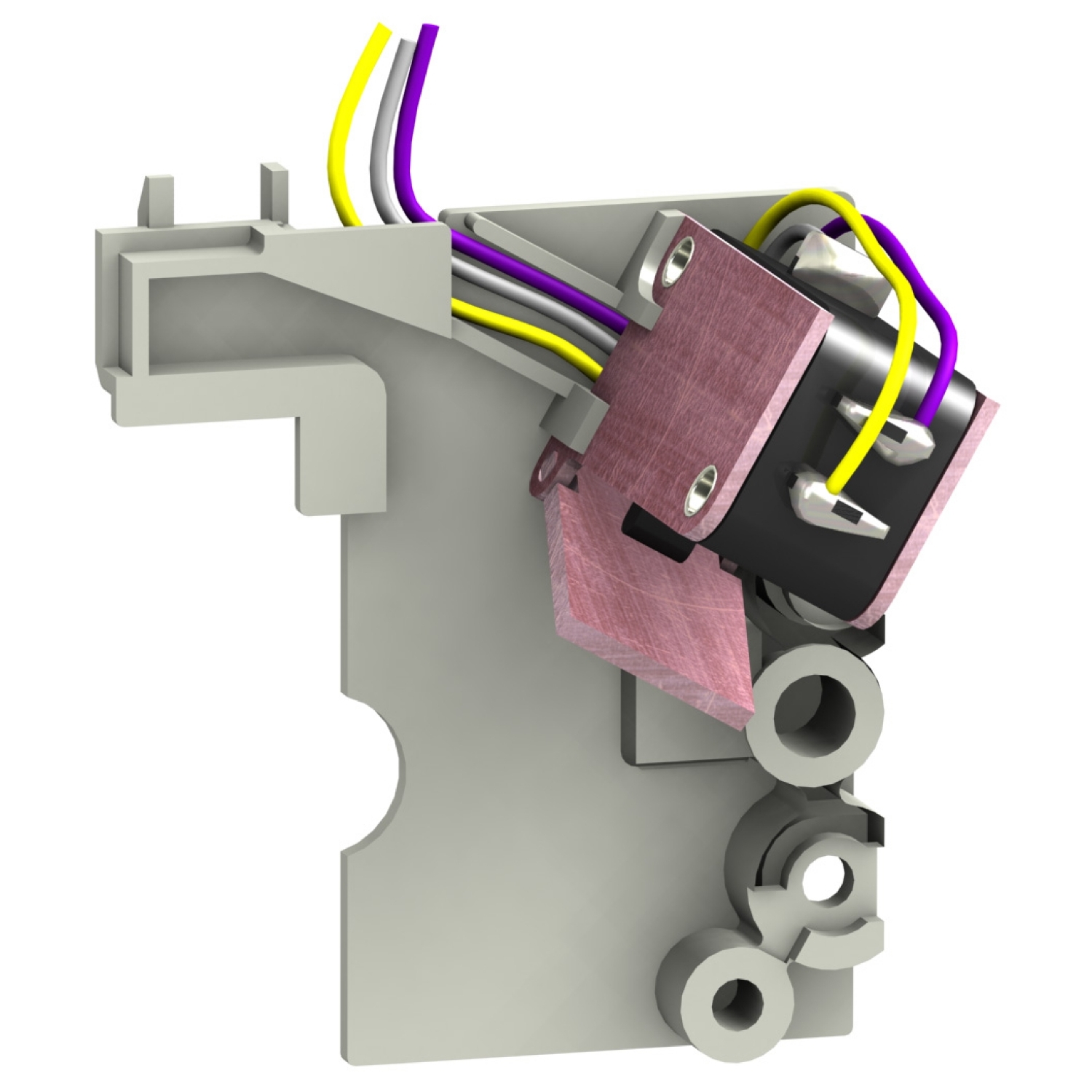

It is a single early break contact that indicates the position of the rotary handle for Compact NSX 100/160/250 and PowerPact Multistandard H/J circuit breakers. An early break contact (CAM), in conjunction with a rotary handle, can be used to anticipate device opening. The contact fits into the rotary handle unit. This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC. utilization categories are AC12/AC15/DC12/DC14. Compact NSX and PowerPact chassis can be equipped with 1 early break contact. It complies with IEC 60947-5-1 standard.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | early-break contact |
| Device application | control |
| Range | ComPacT |
| Product or component type | auxiliary contact |
| Range compatibility | PowerPact PowerPact J, PowerPact PowerPact H, ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100 |
| Range of product | ComPact NSX100...250 DC, ComPact NSX100...250 |
| Complementary | |
| Minimum load | 100 mA at 24 V DC |
| [Ie] rated operational current | DC-14: 1 A at 24 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 0.05 A at 110 V DC, DC-14: 0.03 A at 250 V DC, DC-12: 6 A at 24 V DC, DC-12: 2.5 A at 48 V DC, DC-12: 0.6 A at 110 V DC, DC-12: 0.3 A at 250 V DC, AC-15: 6 A at 48 V AC 50/60 Hz, AC-15: 6 A at 24 V AC 50/60 Hz, AC-15: 5 A at 110 V AC 50/60 Hz, AC-15: 4 A at 220/240 V AC 50/60 Hz, AC-15: 2 A at 380/440 V AC 50/60 Hz, AC-15: 1.5 A at 480 V AC 50/60 Hz, AC-15: 0.1 A at 660/690 V AC 50/60 Hz, AC-12: 6 A at 660/690 V AC 50/60 Hz, AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 48 V AC 50/60 Hz, AC-12: 6 A at 380/440 V AC 50/60 Hz, AC-12: 6 A at 24 V AC 50/60 Hz, AC-12: 6 A at 220/240 V AC 50/60 Hz, AC-12: 6 A at 110 V AC 50/60 Hz |
| Auxiliary contacts type | standard |
| Mounting mode | drawout |
| [Ith] conventional free air thermal current | 6 A |
| Auxiliary contacts operation | early-break |
