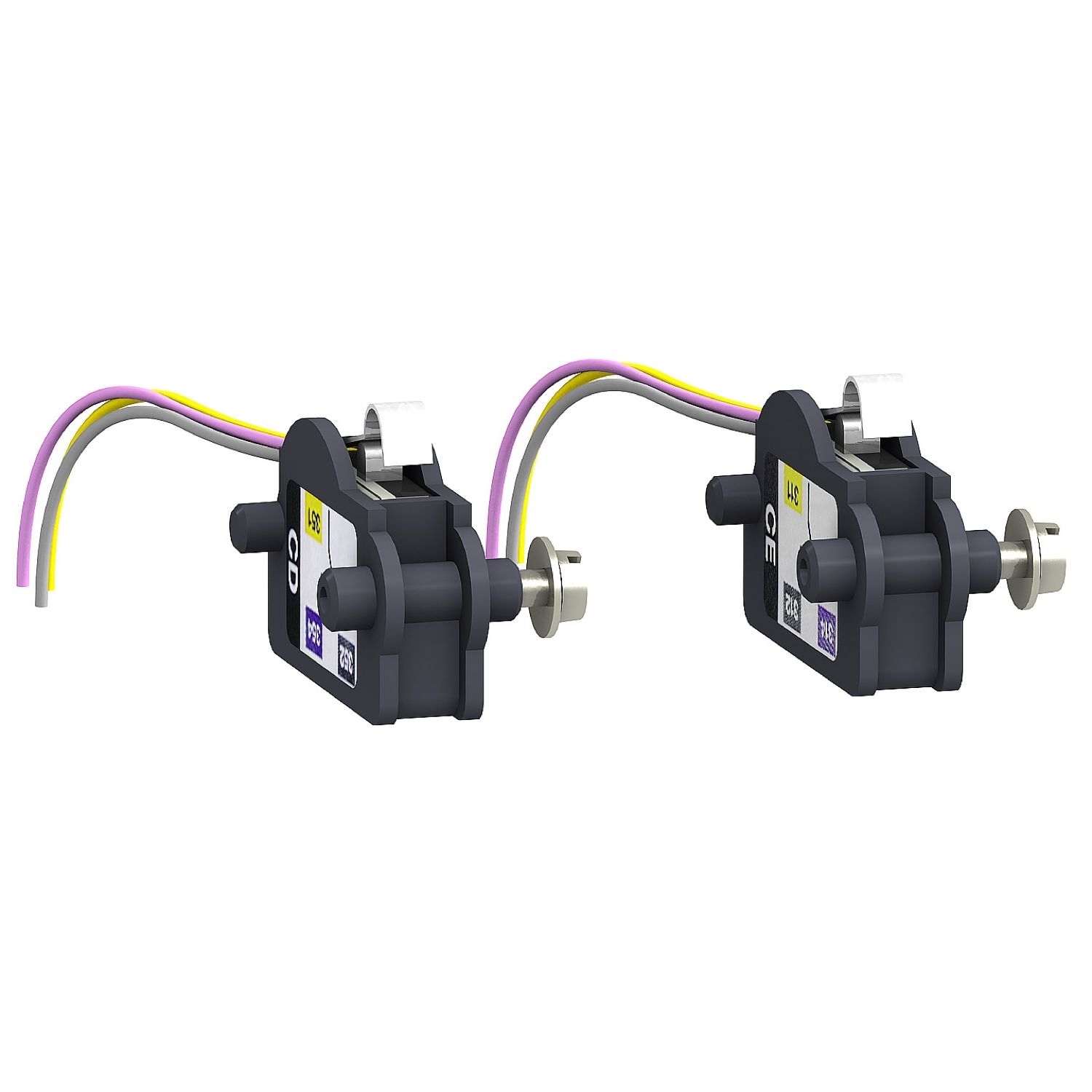

These are 2 carriage switches that provides CE and CD chassis position remote information for Compact NSX 100 to 630 and PowerPact Multistandard H/J/L circuit breakers. The CE contact indicates that the chassis is connected to the circuit breaker. The CD contact indicates that the chassis is disconnected from the circuit breaker. The contacts clip into the fixed part of the chassis. These auxiliaries are a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6A and the minimum load is 100mA at 24 VDC. utilization categories are AC12/AC15/DC12/DC14. Compact NSX and PowePact Multistantard chassis can be equipped with 1 CE and 1 CD carriage switches. It complies with IEC 60947-5-1 standard.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | CD, CE |
| Device application | monitoring |
| Signal contacts composition | 2 NO/NC |
| Range | ComPacT |
| Product or component type | carriage switch |
| Range compatibility | ComPact ComPact NSX630, ComPact ComPact NSX400, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100 |
| Range of product | ComPact NSX400...630, ComPact NSX100...250 |
| Complementary | |
| Minimum load | 100 mA at 24 V DC |
| Quantity per set | 2 |
| [Ie] rated operational current | DC-14: 1 A at 24 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 0.05 A at 110 V DC, DC-14: 0.03 A at 250 V DC, DC-12: 6 A at 24 V DC, DC-12: 2.5 A at 48 V DC, DC-12: 0.6 A at 110 V DC, DC-12: 0.3 A at 250 V DC, AC-15: 6 A at 48 V AC 50/60 Hz, AC-15: 6 A at 24 V AC 50/60 Hz, AC-15: 5 A at 110 V AC 50/60 Hz, AC-15: 4 A at 220/240 V AC 50/60 Hz, AC-15: 2 A at 380/440 V AC 50/60 Hz, AC-15: 1.5 A at 480 V AC 50/60 Hz, AC-15: 0.1 A at 660/690 V AC 50/60 Hz, AC-12: 6 A at 660/690 V AC 50/60 Hz, AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 48 V AC 50/60 Hz, AC-12: 6 A at 380/440 V AC 50/60 Hz, AC-12: 6 A at 24 V AC 50/60 Hz, AC-12: 6 A at 220/240 V AC 50/60 Hz, AC-12: 6 A at 110 V AC 50/60 Hz |
| Auxiliary contacts type | standard |
| Mounting mode | drawout |
| [Ith] conventional free air thermal current | 6 A |
| Auxiliary contacts operation | CE/CD |
