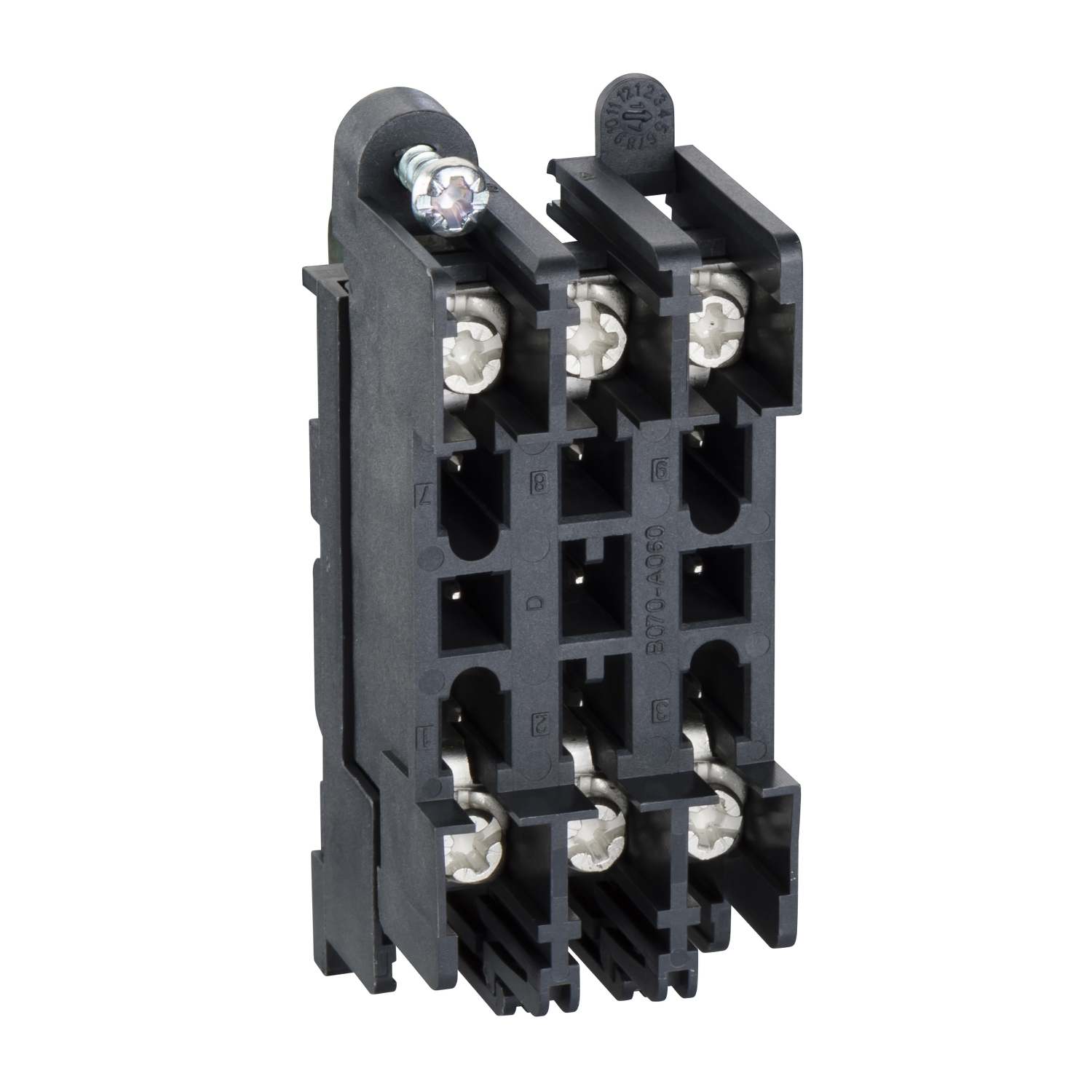

This is the fixed part of an automatic connector for Compact NSX 100 to 630 auxiliaries connection. It is adapted for plug-in base or withdrawable circuit breakers. This fixed part is mounted on the plug-in base. It is equipped with connectors for bare cable up to 2.5mm². Auxiliaries are indication contacts, voltage releases, motor-mechanisms and Micrologic options. Compact NSX 100/160/250 can be equipped with 2 automatic connectors with 9 wires each. Compact NSX 400/630 can be equipped with 3 automatic connectors with 9 wires each.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | 9-wire fixed connector |
| Device application | wiring |
| Range | ComPacT |
| Product or component type | connector kit |
| Range compatibility | ComPact ComPact NSX DC, ComPact ComPact NSX, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX new generation |
| Range of product | ComPact NSX400...630 DC, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX100...250, ComPacT NSX400...630 DC new generation, ComPacT NSX100...250 DC new generation, ComPacT NSX400...630 new generation, ComPacT NSX100...250 new generation |
| Complementary | |
| Total number of wires | 9 |
