EverLink connector with control wire terminal, ComPacT NSXm, for 1 cable 2.5mm² to 95mm², 160A max, 3 parts

    Previous Product
Next Product

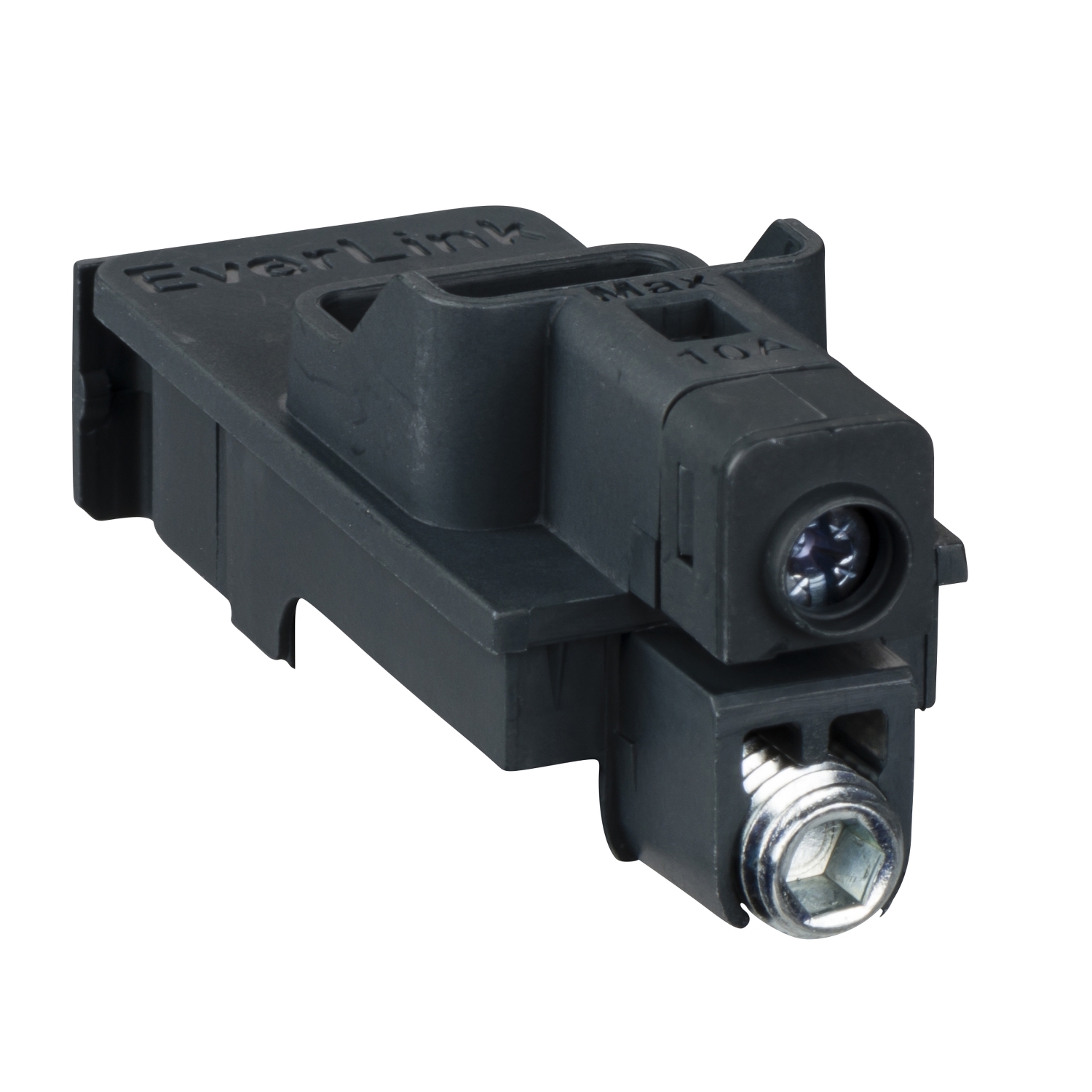

Picture of EverLink connector with control wire terminal, ComPacT NSXm, for 1 cable 2.5mm² to 95mm², 160A max, 3 parts
EverLink connector with control wire terminal, ComPacT NSXm, for 1 cable 2.5mm² to 95mm², 160A max, 3 parts
  • ComPacT NSXm has smaller frame size, incorporating new features and innovations
  • ComPacT NSXm is the smallest frame size in the rage, offering new features and innovations
  • Gain up to 40% in space when using with integrated earth leakage protection
  • Reduce up to 40% mounting and cabling time
  • Select, configure and commission easily with EcoStruxure Customer Lifecycle Software
  • DIN rail mounting product
  • EverLink connectors with patented creep compensating technology
  • New spring type auxiliaries and new wireless indication contact
Manufacturer: Schneider Electric
SKU: LV426970
GTIN: 3606481156303
Catalog
User guide
Instruction sheet
It is a set of 3 Everlink connectors with control wire for Compact NSXm and PowerPact B devices. They use the Everlink system with creep compensation (Schneider Electric patent). Everlink system makes possible to achieve accurate and durable tightening torque. For copper power connections, the current range is from 15A to 160 A and the torque is 5 N.m +/- 0.5 (2.5 to 10 mm²). For aluminium power connections, the current range is from 15A to 100 A and the torque is 9 N.m +/- 0.5 (16 to 95 mm²).
Old price: $84.04 inc GST
$56.23 inc GST
