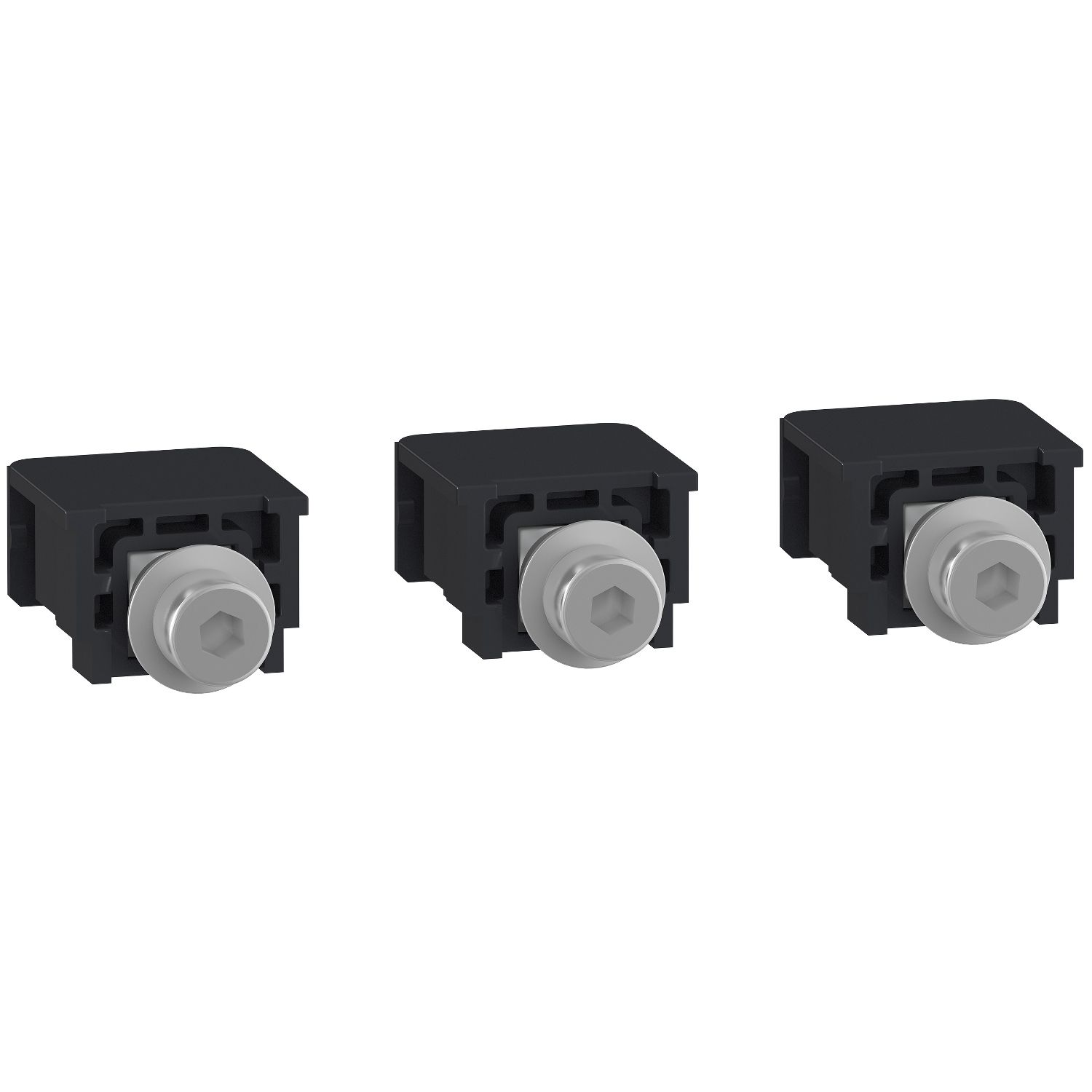

Compression lugs and busbar connectors, ComPacT NSXm, captive nuts and M6 screws, 160A max, set of 3 parts

Home
/ MCCB and Switches
/ ComPacT NSXm (2021)
/ Compression lugs and busbar connectors, ComPacT NSXm, captive nuts and M6 screws, 160A max, set of 3 parts

Previous Product

Next Product

ComPacT NSXm has smaller frame size, incorporating new features and innovations

ComPacT NSXm is the smallest frame size in the rage, offering new features and innovations

Gain up to 40% in space when using with integrated earth leakage protection

Reduce up to 40% mounting and cabling time

Select, configure and commission easily with EcoStruxure Customer Lifecycle Software

DIN rail mounting product

EverLink connectors with patented creep compensating technology

New spring type auxiliaries and new wireless indication contact

Manufacturer: Schneider Electric

SKU: LV426960

GTIN: 3606481156280

Catalog

User guide

Instruction sheet

Full Description

It is a set of 3 compression lugs/busbar connectors for Compact NSXm devices. They are used for a direct connection of insulated bares/cables or for a terminal extension. It offers a wide range of connection possibilities. These terminals are captive nuts with M6 screws. The current range is 15 to 160 A. The torque is 5 N.m +/- 0.5 for power connection ≤ 10 mm² or 9 N.M +/- 0.9 for power connection ≥ 16 mm². Interphase barriers or terminal shields are recommended.

Old price: $51.92 inc GST

Price: $34.74 inc GST
