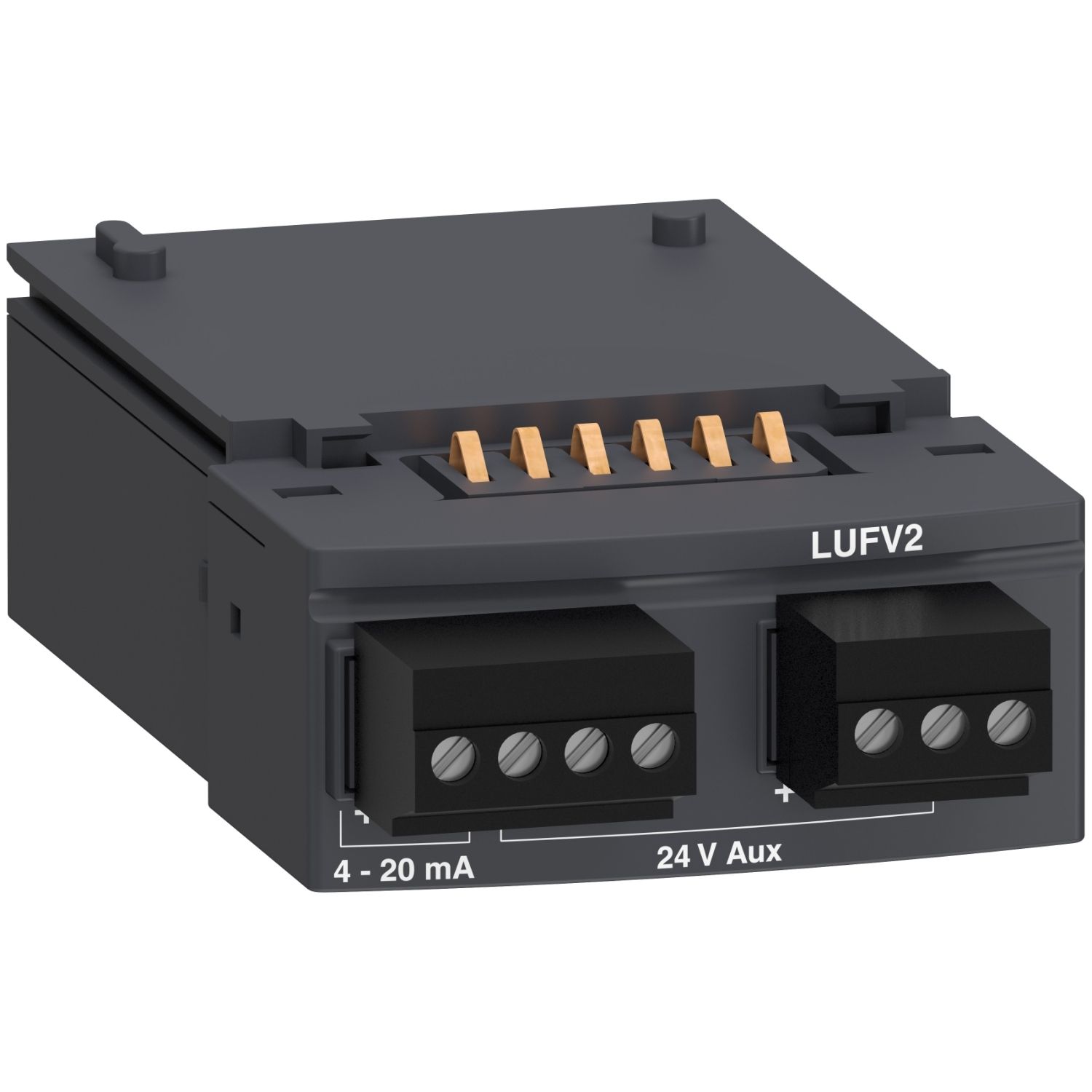

TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for motor load monitoring. It provides a 4-20mA output signal, image of the load ratio, to be connected to a load impedance 100 Ohm typical (500 Ohm max). It measures the phase currents and computes the ratio I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD, and of 0 to 3 for LUCC control units. It requires an external power supply 24V DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LUF |
| Product compatibility | LUCD, LUCB, LUCM, LUCC |
| Range | TeSys |
| Product or component type | function module |
| Range of product | TeSys Ultra |
| Complementary | |
| Tightening torque | 0.2-0.25 N.m - with screwdriver 2.5 mm flat |
| [Us] rated supply voltage | 24 V DC |
| Compatibility code | LUF |
| Load impedance ohmic | <= 500 Ohm, 100 Ohm typical |
| Mounting mode | plug-in |
| Measurement accuracy | +/- 6 % with advanced control unit, +/- 10 % with multifunction control unit - resolution: 1 % of Ir |
| Function available | indication of motor load |
| Mounting location | front side |
| Net weight | 0.05 kg |
| Connections - terminals | screw clamp terminals 2 cable(s) 0.5-0.5 mm² flexible with cable end, screw clamp terminals 2 cable(s) 0.25-0.34 mm² flexible with cable end, screw clamp terminals 2 cable(s) 0.14-0.75 mm² flexible without cable end, screw clamp terminals 2 cable(s) 0.14-0.5 mm² rigid without cable end, screw clamp terminals 1 cable(s) 0.25-1 mm² flexible with cable end, screw clamp terminals 1 cable(s) 0.25-0.5 mm² flexible with cable end, screw clamp terminals 1 cable(s) 0.14-1 mm² rigid without cable end, screw clamp terminals 1 cable(s) 0.14-1 mm² flexible without cable end |
| Analogue output current | 4-20 mA |
| Associated cable type | AWG 26...AWG 16 |
| Connection pitch | 3.81 mm |
| Type of output signal | value of I average/Ir ratio within the range of 0 to 3 for LUCC, value of I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD |
