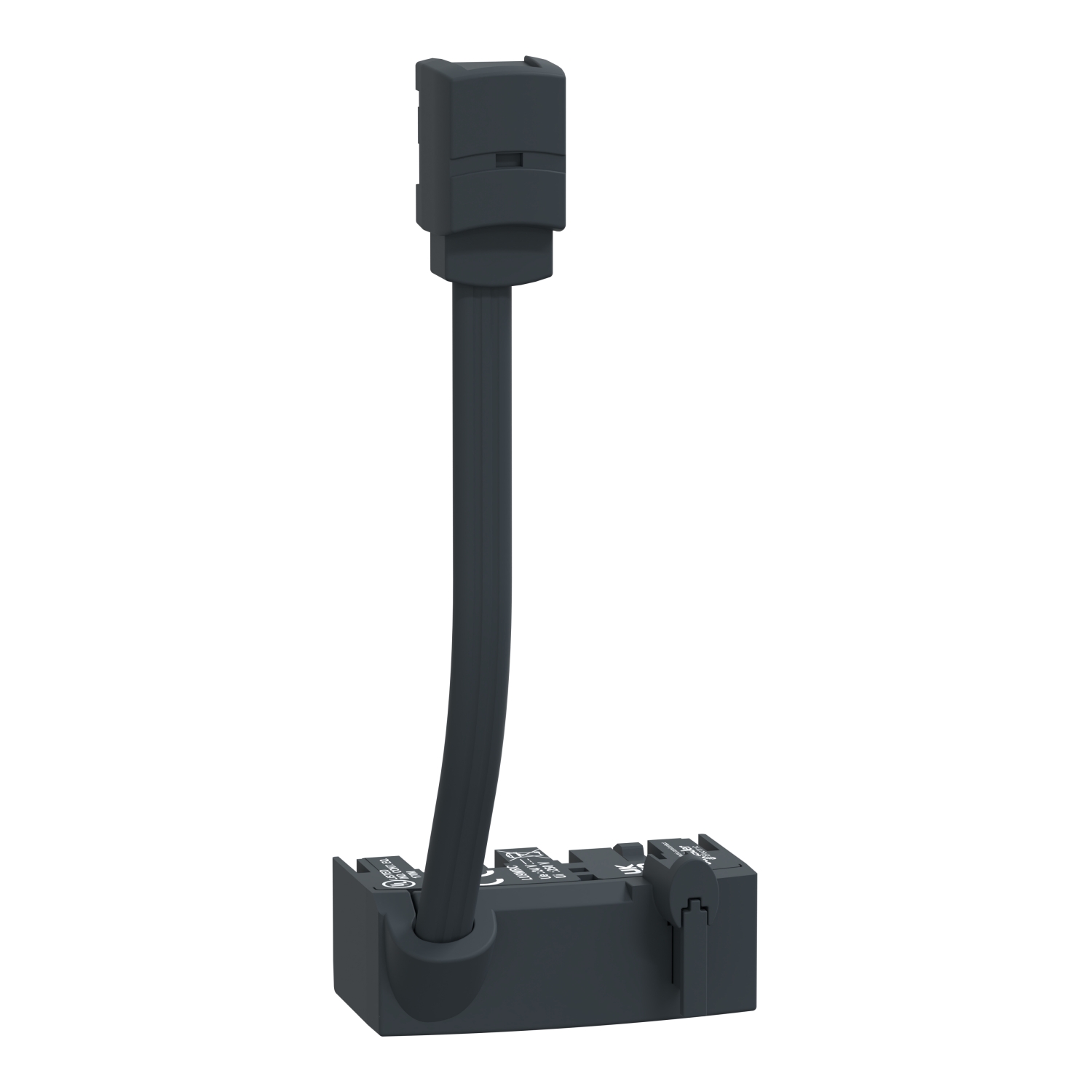

Pre-wired coil connection, TeSys Ultra, 2 direction, Long cable, side connection, Modbus, for LU2B

Manufacturer: Schneider Electric

SKU: LU9MRC

GTIN: 3389110367577

Catalog

Instruction sheet

Declaration of conformity

Old price: $119.46 inc GST

Price: $86.31 inc GST

Qty:

Supported cards

Full Description
Reviews

TeSys U control terminal block to be inserted in a reversing power base LU2B12*, LU2B32*, LU2B38* for the centralized control of the starter controller. To be used for ON/OFF control of reversing motor applications with Modbus, Ethernet, AS-Interface remote control. It provides screw clamp terminals to connect the internal auxiliary contacts 1NO+1NC, and a pre-wired control cable to be connected to a communication module LUFC00, LULC031, LULC033, ASILUFC5, ASILUFC51 (to be ordered separately). It is powered by the associated communication module. Green Premium compliant (RoHS/REACh).

Only registered users can write reviews

Pre-wired coil connection, TeSys Ultra, 2 direction, Long cable, side connection, Modbus, for LU2B

Name: Pre-wired coil connection, TeSys Ultra, 2 direction, Long cable, side connection, Modbus, for LU2B
SKU: LU9MRC
Price: 86.31 AUD
Availability: InStock
