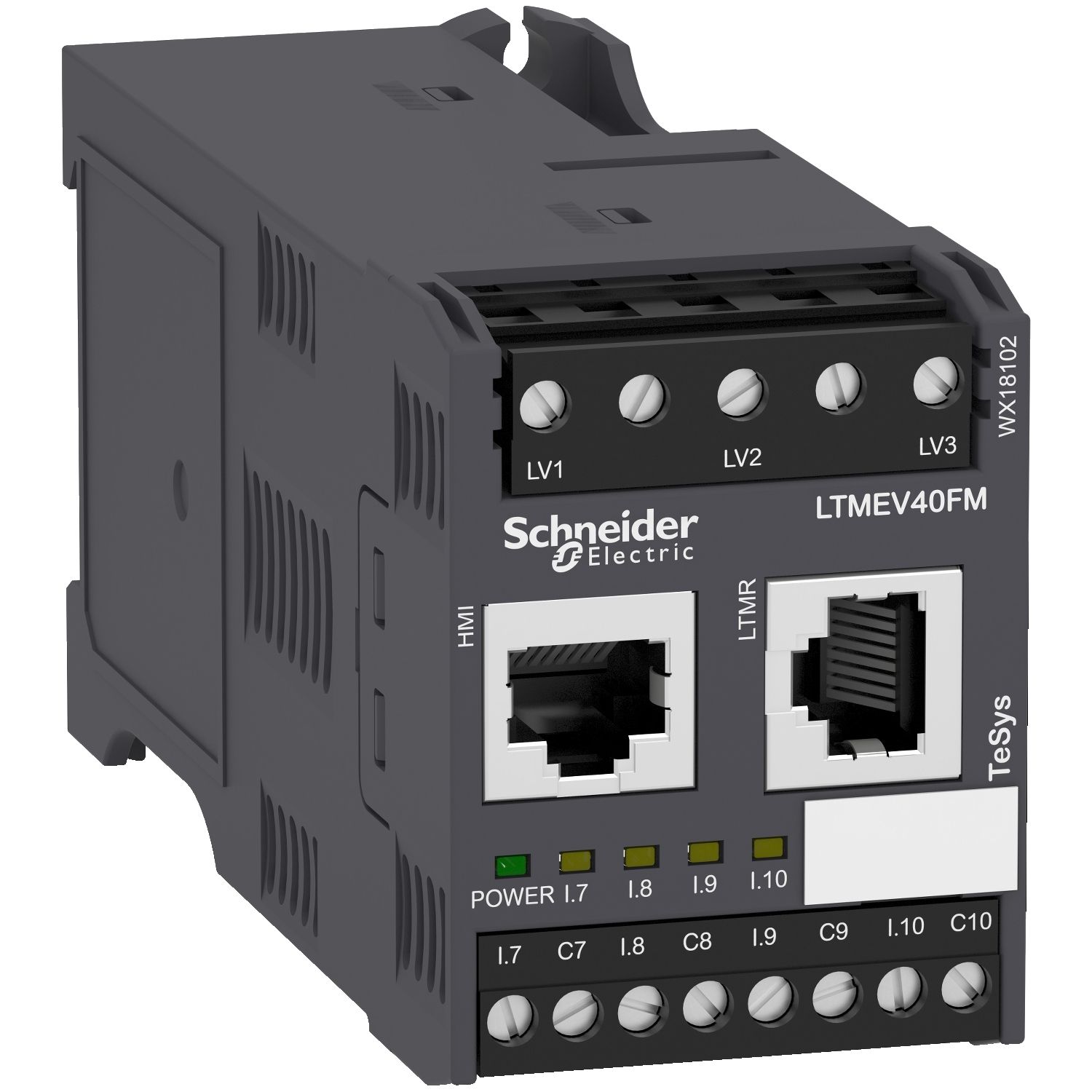

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. TeSys T has a number of components that increase the flexibility of the system. This expansion module adds functionalities to the TeSys T controller. It adds voltage mesurement between phases up to 690 V nominal and 4 additional inputs. Module has 4 discrete logic inputs. 120 to 240 VAC is used to power the module. Module has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LTME |
| Device application | equipment monitoring and control |
| [Us] rated supply voltage | 100...240 V AC 50/60 Hz |
| Range | TeSys |
| Product name | TeSys T |
| Product or component type | extension module |
| Supply | via the controller |
| Range compatibility | TeSys TeSys T LTMR motor controller |
| Complementary | |
| Metering type | power factor, frequency, reactive power Q, Q1, Q2, Q3, voltage U21, U32, U13, V1, V2, V3, calculated active and reactive energy (+/- W.h, +/- VAR.h), active power P, P1, P2, P3, imbalance voltage |
| Maximum operating frequency | 2 Hz |
| Depth | 120.7 mm |
| Tightening torque | control circuit: 0.5-0.6 N.m flat screwdriver 3 mm |
| Overvoltage category | III |
| Width | 45 mm |
| Compatibility code | LTME |
| [Ui] rated insulation voltage | 690 V conforming to UL 508, 690 V conforming to CSA C22.2 No 14, 690 V conforming to EN/IEC 60947-1 |
| Current state 0 guaranteed | logic input: 0...40 V and 2...15 mA for 25 ms |
| Measurement accuracy | 5 % active and reactive power, 3 % power factor, 1 % voltage (100...830 V) |
| Electromagnetic compatibility | control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5, voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5, communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6, fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4, fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4, electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 |
| [Uimp] rated impulse withstand voltage | 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1, 4 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1 |
| Net weight | 0.21 kg |
| Current state 1 guaranteed | logic input: 79...264 V and <= 15 mA for 25 ms |
| Input current | 7.5 mA at 240 V, 3.1 mA at 100 V |
| Connections - terminals | control circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) solid without cable end, control circuit: connector 2 cable(s) 0.5-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.2-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) flexible with cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) solid without cable end, control circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible with cable end |
| Maximum operating rate | 1800 cyc/h |
| Logic input number | 4 |
| Pollution degree | 3 |
| Connection pitch | 5.08 mm |
| Height | 61 mm |
| Contacts type and composition | without |
| Environment | |
| IP degree of protection | IP20 |
| Fire resistance | 960 °C conforming to UL 94, 650 °C conforming to EN/IEC 60695-2-12 |
| Operating altitude | <= 2000 m without derating |
| Protective treatment | TH conforming to EN/IEC 60068, 48 h conforming to EN/IEC 60070-2-11, 12 x 24 hour cycles conforming to EN/IEC 60068-2-30 |
| Ambient air temperature for storage | -40-80 °C |
| Standards | EN 60947-4-1, UL 508, IEC 60947-4-1, IACS E10, CSA C22.2 No 14 |
| Ambient air temperature for operation | -20-60 °C |
| Mechanical robustness | vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, shocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Product certifications | ABS, CCC, CSA, C-Tick, KERI, RINA, BV, DNV, UL, GL, RMRoS, EAC, NOM, ATEX, LROS (Lloyds register of shipping) |
Only registered users can write reviews
Related products

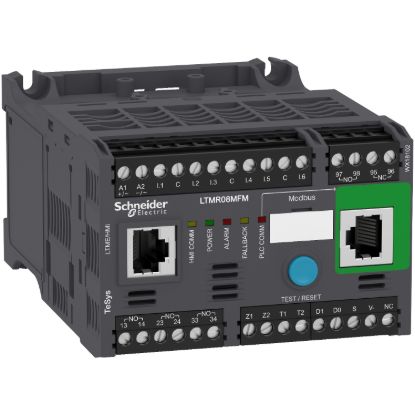

Motor controller, TeSys T, Motor Management, Modbus, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 100 to 240VAC
