Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IPxx B |
| Range | Linergy |

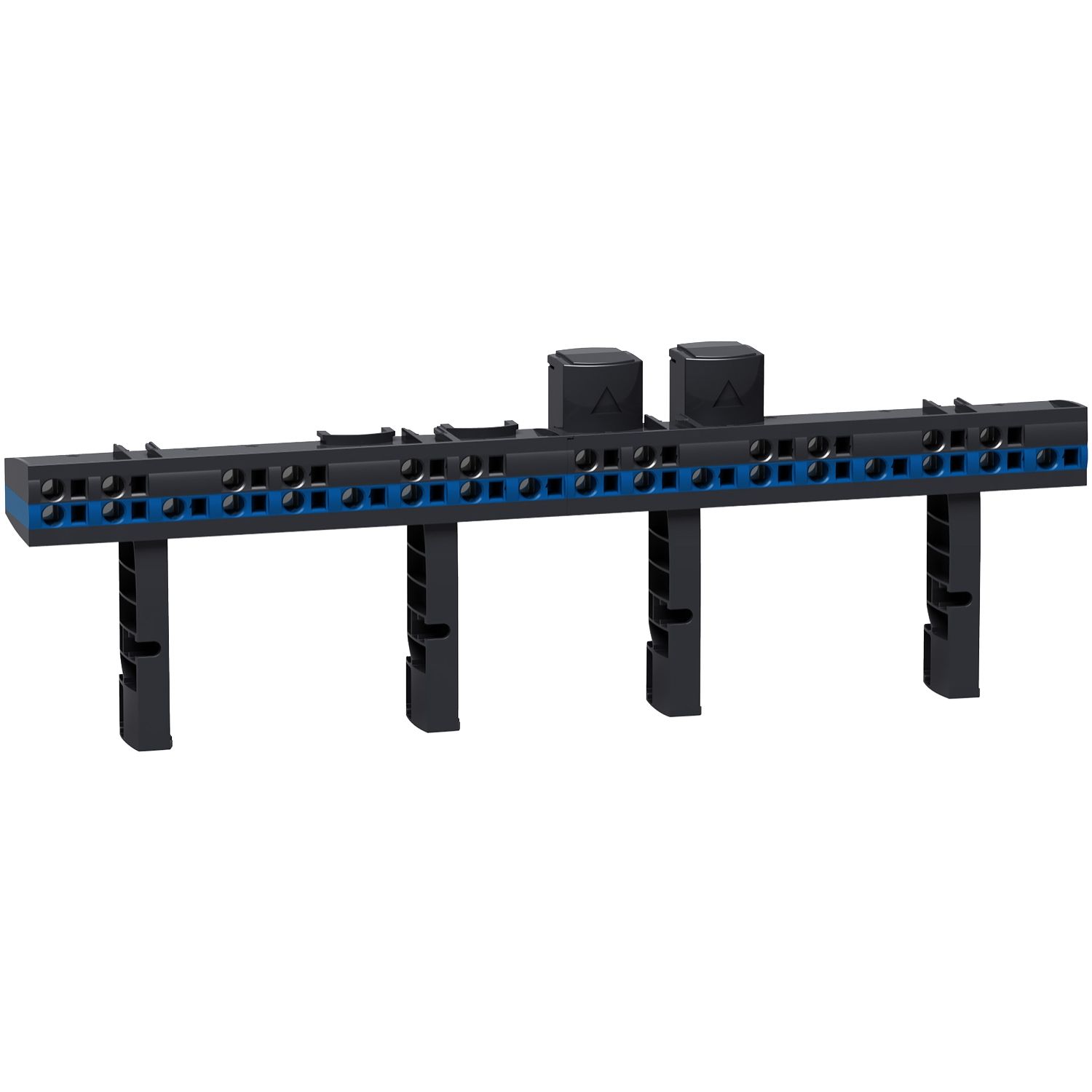

| Product name | Linergy FM |
| Product or component type | distribution block |
| Accessory / separate part category | current distribution accessory |
| Range compatibility | Prisma Prisma iPM M enclosure, Prisma Prisma iPM L enclosure |
| Range of product | Linergy |
| Complementary | |
| Depth | 50 mm |
| Width | 433 mm |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Compatibility code | MULTICLIP |
| Poles description | 2P |
| Mounting mode | clip-on, by screws |
| [Ie] rated operational current | 200 A |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz |
| 9 mm pitches | 48 |
| Total number of 18 mm modules | 24 |
| Mounting support | plain backplate, DIN rail, slotted backplate |
| [Ue] rated operational voltage | 690 V AC |
| Height | 24 mm |
| [In] rated current | 200 A at 40 °C |
| Connections - terminals | distribution: quick-connect terminal strips (neutral) , 12 x 1-10 mm² (rigid) , distribution: quick-connect terminal strips (neutral) , 12 x 1-10 mm² (flexible) , distribution: quick-connect terminal strips (phase) , 12 x 1-10 mm² (rigid) , distribution: quick-connect terminal strips (phase) , 12 x 1-10 mm² (flexible) , supply: flexible bars, 20 x 3 mm, supply: crimped lug50-50 mm² |
| Environment | |
| Standards | IEC 60947-7-1, IEC 61439-2, inside Prisma, IEC 61439-1, inside Prisma |
| Product certifications | ASEFA, CE, CCC |
