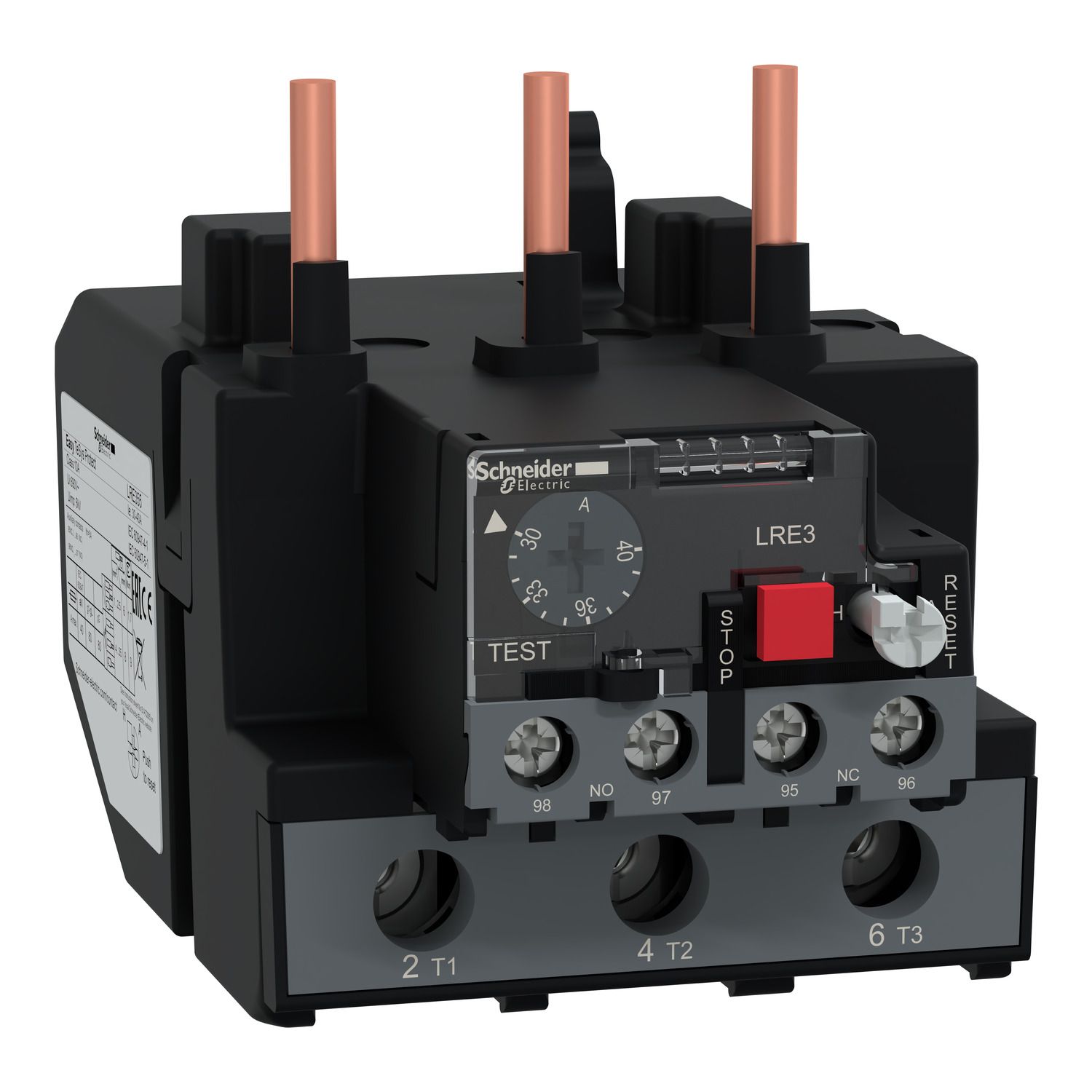

The LRE relay is a differential thermal overload relays for use with fuses or magnetic circuit-breakers GV2 L and GV3 L. Its thermal setting range is 30-40A 50/60Hz and the tripping class is 10A conforming to IEC 60947-4-1. It can be direct mounted on Easy TeSys Control contactors with screw clamp terminals connection. It protects unbalanced loads and motors with 18.5kW at 400VAC. It provides manual or automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LRE |
| Range | Easy TeSys |
| Product or component type | differential thermal overload relay |
| Relay application | motor protection |
| Phase failure sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 |
| Range of product | Easy TeSys Protect |
| Complementary | |
| Temperature compensation | -20-60 °C |
| Product compatibility | LC1E40...95 |
| Depth | 113 mm |
| Width | 70 mm |
| Control type | push-button green reset: , push-button red stop: |
| Mounting support | rail, with specific accessories, plate, with specific accessories, under contactor |
| Tightening torque | signalling circuit: 1.7 N.m - on screw clamp terminals, power circuit: 9 N.m - on screw clamp terminals |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Local signalling | trip indicator |
| Connections - terminals | power circuit: screw clamp terminals 1 4-35 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 4-35 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 4-35 mm² - cable stiffness: flexible without cable end, signalling circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end, signalling circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, signalling circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Net weight | 0.47 kg |
| Associated fuse rating | 5 A gG for signalling circuit, 100 A gG for power circuit, 40 A aM for power circuit |
| Thermal overload class | class 10A conforming to IEC 60947-4-1 |
| Network type | AC |
| Thermal protection adjustment range | 30-40 A |
| [Ue] rated operational voltage | <= 690 V AC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| Auxiliary contact composition | 1 NO + 1 NC |
| Height | 54 mm |
| Mechanical robustness | vibrations: 3 GN conforming to IEC 60068-2-6, shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7 |
| Signalling function | relay trip indicator |
| Network frequency | 50...60 Hz |
| Environment | |
| Fire resistance | 850 °C conforming to IEC 60068-2-1 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for storage | -60-80 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 6 kV at 50 Hz conforming to IEC 60255-5 |
| Ambient air temperature for operation | -20-70 °C with derating, -20-60 °C without derating conforming to IEC 60947-4-1 |
| Electromagnetic compatibility | surge withstand: 6 kV conforming to IEC 60801-5 |
| Standards | IEC 60947-5-1, IEC 60947-4-1 |
| Product certifications | EAC |
