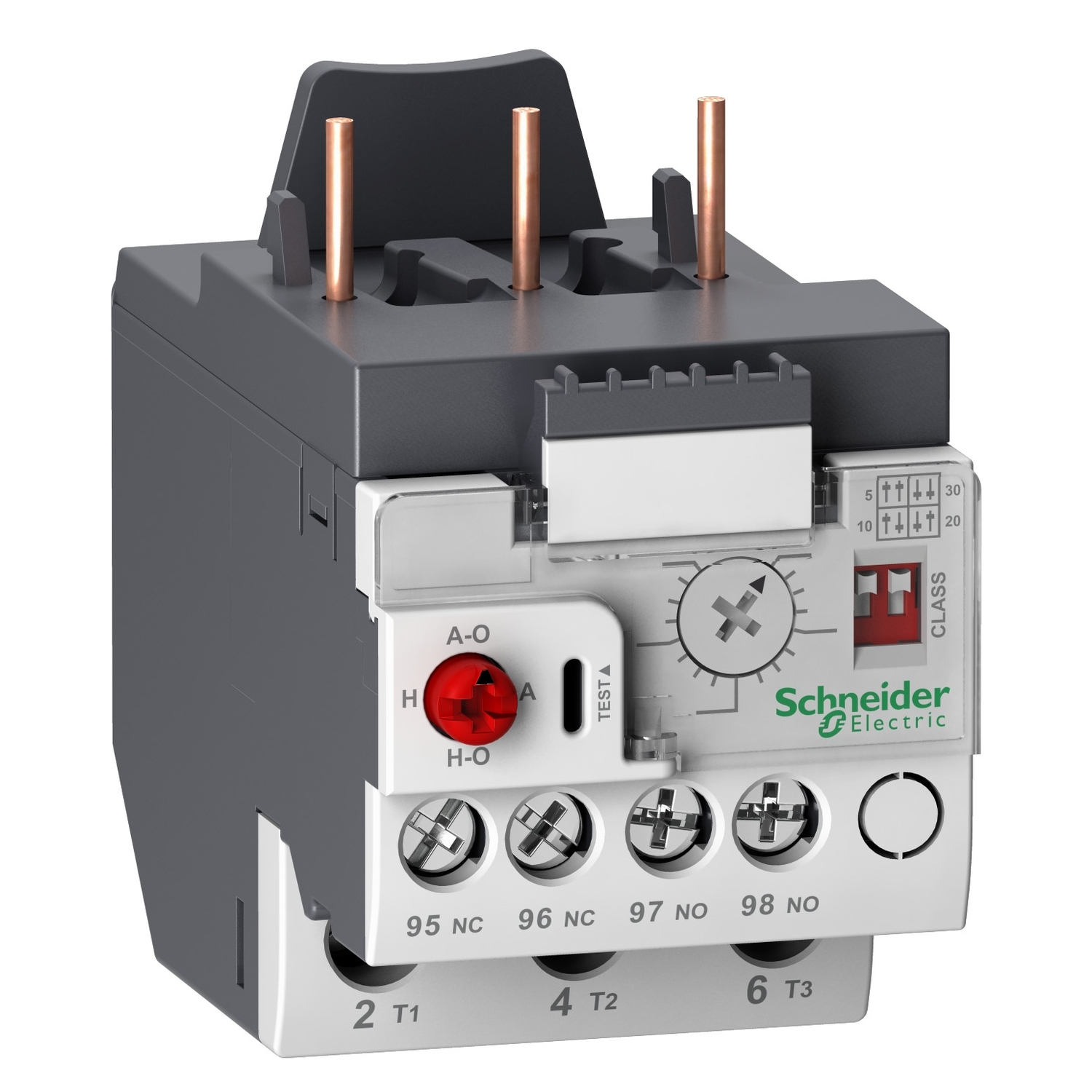

Electronic Thermal Overload Relay, TeSys LR9, 3P, 0.1...0.5 A

Manufacturer: Schneider Electric

SKU: LR9D01

GTIN: 3606485420929

Catalog

Instruction sheet

Brochure

Declaration of conformity

Old price: $202.62 inc GST

Price: $80.42 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys LR9D electronic overload relay, 0.5A/690V, thermal setting range 0.1-0.5A, selectable tripping class 5-10-20-30, for protection of 3-phase motors up to 0.12kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset as well as manual-automatic reset selector, dipswitches for tripping class selection, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from contactor, with use of the terminal block LAD7B205 (to be ordered separately). Multi-standards certified (IEC, UL, CSA, CCC), RoHs/Reach.

Products specifications

Attribute name	Attribute value
Main
Device short name	LR9D
Product compatibility	LC1D18, LC1D38, LC1D12, LC1D32, LC1D25, LC1D09
Mounting support	rail, with specific accessories, plate, with specific accessories, under contactor
Range	TeSys
Thermal overload class	class 5…30
Product name	TeSys LRD
Product or component type	electronic thermal overload relay
Relay application	motor protection
Power consumption in W	300 mW
Thermal protection adjustment range	0.1-0.5 A
Complementary
Depth	79.9 mm
Width	45 mm
Control type	white dial: full-load current adjustment, red knob: automatic reset, white 2 microswitches: adjustable trip class, red push-button: stop and manual reset
Tripping threshold	1.25 In conforming to IEC 60947-4-1
[Ui] rated insulation voltage	signalling circuit: 690 V, power circuit: 1000 V
Connections - terminals	power circuit: screw clamp terminals 1 cable 16-16 mm² - cable stiffness: solid or flexible - without cable end, control circuit: screw clamp terminals 1 cable 2.5-2.5 mm² - cable stiffness: solid or flexible - without cable end
[Uimp] rated impulse withstand voltage	6 kV
Net weight	0.18 kg
Associated fuse rating	5 A BS for signalling circuit, 5 A gG for signalling circuit
Electromagnetic compatibility	immunity to fast transients: 2 kV conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference: 10 V/m conforming to IEC 61000-4-3, resistance to electrostatic discharge: 8 kV conforming to IEC 61000-4-2, surge withstand: 2 kV common mode conforming to IEC 61000-4-5
[Ue] rated operational voltage	660 V for signalling circuit, 690 V for power circuit
Phase failure sensitivity	phase difference > 40% 3-3 s conforming to IEC 60947-4-1
Tightening torque	power circuit: 3.1 N.m on screw clamp terminals, control circuit: 0.8 N.m on screw clamp terminals
[Ith] conventional free air thermal current	5 A for signalling circuit
Height	72.5 mm
Time range	1.5...4 min - automatic reset time
Environment
Operating altitude	2000 m without derating
IP degree of protection	IP20 front face conforming to IEC 60529
Ambient air temperature for storage	-55-80 °C
Dielectric strength	6 kV 50 Hz conforming to IEC 60255-5
Ambient air temperature for operation	-25-70 °C conforming to IEC 60255-8
Standards	GB/T 14048.5, GB/T 14048.4, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Mechanical robustness	shocks 11 ms: 15 gn conforming to IEC 60068-2-7, vibrations 10...150 Hz: 6 Gn conforming to IEC 60068-2-6
Product certifications	CCC, CSA, UL, IECEE CB Scheme
