TeSys Deca thermal overload relays,30...40A,class 20,for D80/95(3P)

Manufacturer: Schneider Electric

SKU: LR2D3555

GTIN: 3389110229097

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Old price: $1,227.60 inc GST

Price: $487.23 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

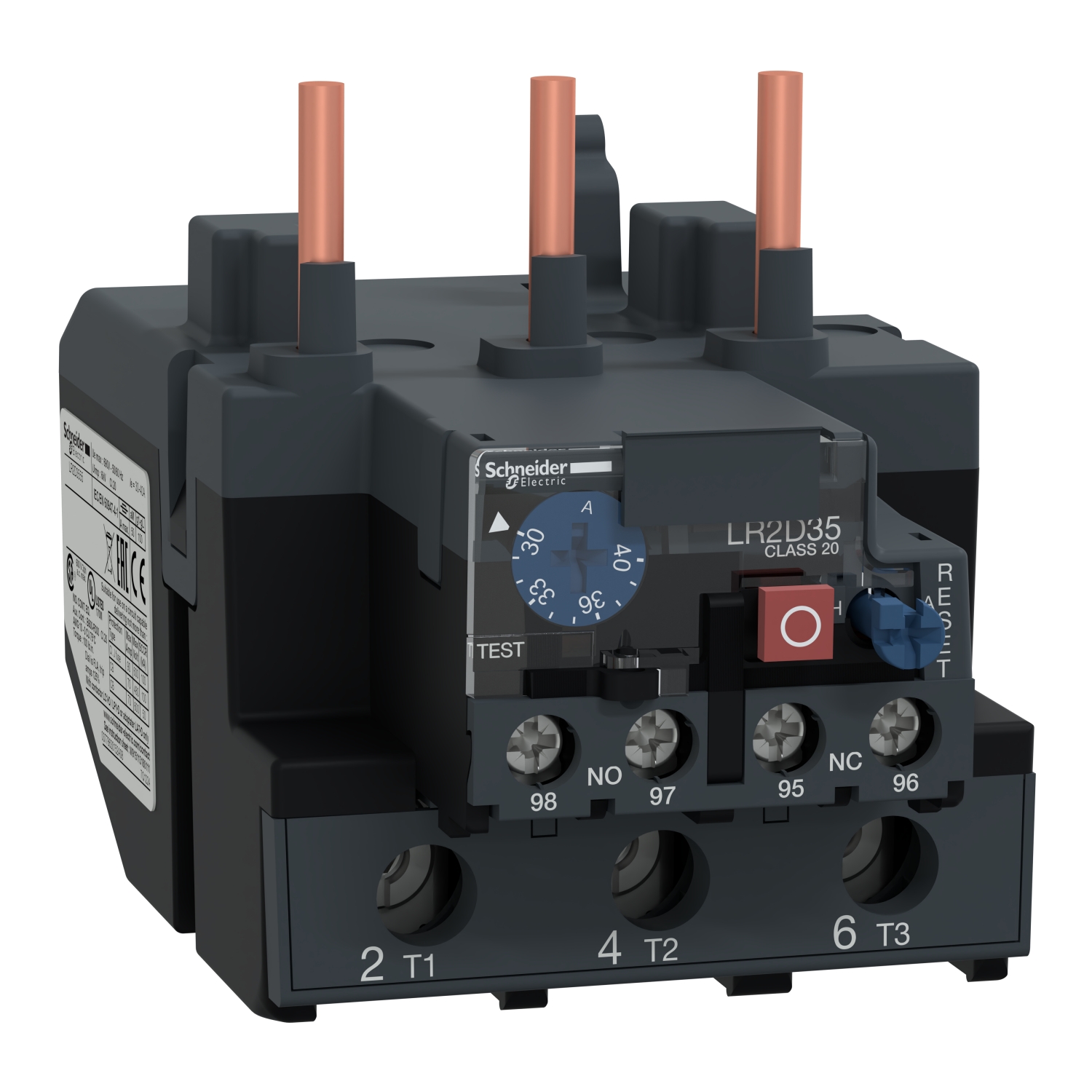

TeSys LRD thermal overload relay, 40A/1000V, thermal setting range 30-40A, tripping class 20, for protection of 3-phase motors 18.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Products specifications

Attribute name	Attribute value
Main
Device short name	LR2D
Product compatibility	LC1D80, LC1D95
Range	TeSys
Thermal overload class	class 20 conforming to IEC 60947-4-1
[Ui] rated insulation voltage	power circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to UL, power circuit: 600 V conforming to CSA
Product name	TeSys Deca, TeSys LRD
Product or component type	differential thermal overload relay
Relay application	motor protection
Network type	AC, DC
Thermal protection adjustment range	30-40 A
Complementary
Compatibility code	LR2D
Tightening torque	power circuit: 9 N.m - on screw clamp terminals, control circuit: 1.7 N.m - on screw clamp terminals
Tripping threshold	1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Associated fuse rating	4 A BS for signalling circuit, 4 A gG for signalling circuit
Phase failure sensitivity	tripping current 130 % of Ir on two phase, the last one at 0
[Ith] conventional free air thermal current	5 A for signalling circuit
Height	100 mm
Temperature compensation	-20-60 °C
Depth	121 mm
Width	75 mm
Mounting support	under contactor, rail, with specific accessories, plate, with specific accessories
Control type	blue push-button: reset, red push-button: stop
Permissible current	0.06 A at 440 V DC-13 for signalling circuit, 0.72 A at 500 V AC-15 for signalling circuit
[Uimp] rated impulse withstand voltage	6 kV
Net weight	0.535 kg
[Ue] rated operational voltage	1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Connections - terminals	control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 4-35 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 4-35 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 4-35 mm² flexible without cable end
Auxiliary contact composition	1 NO + 1 NC
Network frequency	0...400 Hz
Environment
Ambient air temperature for storage	-60-70 °C
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-20-60 °C without derating conforming to IEC 60947-4-1
Climatic withstand	conforming to IACS E10
Mechanical robustness	shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7, vibrations: 6 Gn conforming to IEC 60068-2-6
Flame retardance	V1 conforming to UL 94
Dielectric strength	2.2 kV at 50 Hz conforming to IEC 60947-1
Standards	CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Product certifications	UKCA, LROS (Lloyds register of shipping), DNV-GL, EAC, CSA, UL, IEC
