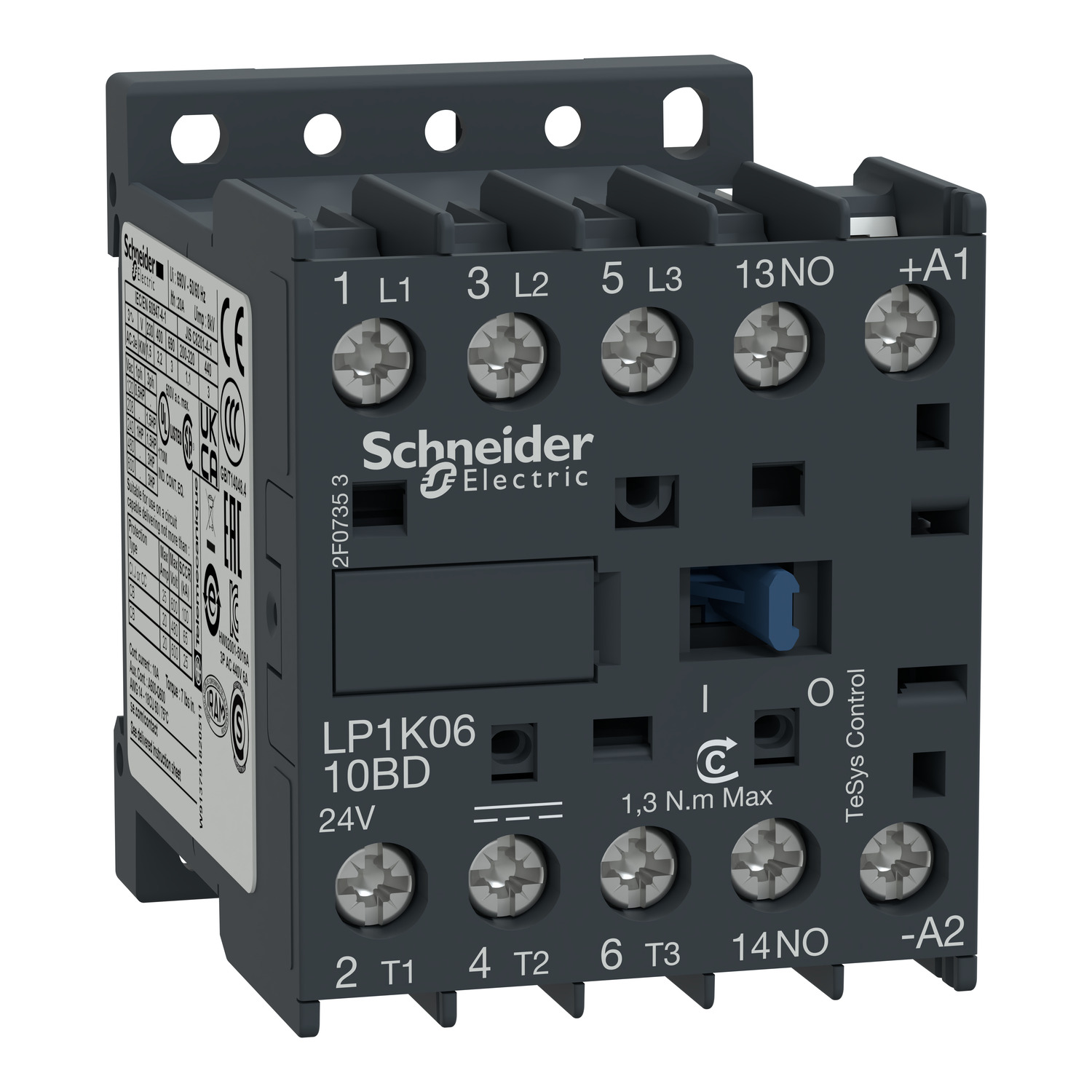

Contactor, TeSys K, 3P, AC-3/AC-3e, <=440V, 12A , aux. 1NO, 110V DC coil

Manufacturer: Schneider Electric

SKU: LP1K1210FD

GTIN: 3389110247909

Catalog

Instruction sheet

Environmental Disclosure

CAD

Circularity Profile

Declaration of conformity

Old price: $221.65 inc GST

Price: $87.97 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys K contactor, 4 poles (4NO), for motor control applications up to 12A/690V AC-3 (4kW@440V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 110V DC coil, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Products specifications

Attribute name	Attribute value
Main
Device short name	LP1K
Range	TeSys
Range of product	TeSys K
Product or component type	contactor
Contactor application	resistive load, motor control
Complementary
Heat dissipation	1.3-1.3 W
[Icw] rated short-time withstand current	110 A - 100 ms for signalling circuit, 90 A - 500 ms for signalling circuit, 80 A - 1 s for signalling circuit, 25 A 50 °C - >= 15 min for power circuit, 50 A 50 °C - 3 min for power circuit, 55 A 50 °C - 1 min for power circuit, 75 A 50 °C - 30 s for power circuit, 100 A 50 °C - 10 s for power circuit, 105 A 50 °C - 5 s for power circuit, 115 A 50 °C - 1 s for power circuit
Tightening torque	0.8-1.3 N.m - on screw clamp terminals pozidriv No 2, 0.8-1.3 N.m - on screw clamp terminals flat Ø 6 mm, 0.8-1.3 N.m - on screw clamp terminals Philips No 2
Compatibility code	LP1K
Mechanical durability	10 Mcycles
Electrical durability	0.02 Mcycles 72 A AC-4 at Ue <= 440 V, 0.3 Mcycles 20 A AC-1 at Ue <= 690 V, 1.3 Mcycles 12 A AC-3e at Ue <= 440 V, 1.3 Mcycles 12 A AC-3 at Ue <= 440 V
Minimum switching voltage	17 V for signalling circuit
Connections - terminals	power circuit: screw clamp terminals 2 cable(s) 1.5-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 0.34-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1.5-4 mm²solid
Motor power kW	5.5 kW at 440 V AC 50/60 Hz AC-4, 5.5 kW at 380...415 V AC 50/60 Hz AC-4, 3 kW at 220...230 V AC 50/60 Hz AC-4, 4 kW at 690 V AC 50/60 Hz AC-3e, 5.5 kW at 440 V AC 50/60 Hz AC-3e, 5.5 kW at 380...415 V AC 50/60 Hz AC-3e, 3 kW at 220...230 V AC 50/60 Hz AC-3e, 4 kW at 690 V AC 50/60 Hz AC-3, 5.5 kW at 440 V AC 50/60 Hz AC-3, 5.5 kW at 380...415 V AC 50/60 Hz AC-3, 3 kW at 220...230 V AC 50/60 Hz AC-3
Associated fuse rating	10 A gG for signalling circuit conforming to VDE 0660, 10 A gG for signalling circuit conforming to IEC 60947, 25 A aM for power circuit, 25 A gG at <= 440 V for power circuit
Irms rated making capacity	110 A AC for signalling circuit conforming to IEC 60947, 144 A AC for power circuit conforming to IEC 60947
Rated breaking capacity	70 A at 660...690 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947
Safety reliability level	B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit type	DC standard
[Ith] conventional free air thermal current	10 A (at 50 °C) for signalling circuit, 20 A (at 60 °C) for power circuit
Control circuit voltage limits	drop-out: >= 0.10 Uc (at <50 °C), operational: 0.8...1.15 Uc (at <50 °C)
Height	58 mm
[Ui] rated insulation voltage	signalling circuit: 600 V conforming to CSA C22.2 No 14, power circuit: 600 V conforming to CSA C22.2 No 14, signalling circuit: 600 V conforming to UL 508, signalling circuit: 690 V conforming to IEC 60947-5-1, signalling circuit: 690 V conforming to IEC 60947-4-1, power circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to UL 508
Depth	57 mm
Overvoltage category	III
Width	45 mm
Operating time	10 ms coil de-energisation and NO opening, 30...40 ms coil energisation and NO closing
Poles description	3P
Auxiliary contacts type	type instantaneous 1 NO
Inrush power in W	3-3 W (at 20 °C)
Maximum operating rate	3600 cyc/h
[Ie] rated operational current	20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit, 12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category	AC-4, AC-1, AC-3e, AC-3
Pole contact composition	3 NO
[Uimp] rated impulse withstand voltage	8 kV
Net weight	0.225 kg
Insulation resistance	> 10 MOhm for signalling circuit
Hold-in power consumption in W	3-3 W at 20 °C
Mounting support	plate, rail
Auxiliary contact composition	1 NO
Average impedance	3 mOhm - Ith 20 A 50 Hz for power circuit
[Ue] rated operational voltage	signalling circuit: <= 690 V AC <= 400 Hz, power circuit: <= 690 V AC <= 400 Hz
[Uc] control circuit voltage	110 V DC
Minimum switching current	5 mA for signalling circuit
Environment
IP degree of protection	IP2X
Ambient air temperature for storage	-50-80 °C
Standards	GB/T 14048.4, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Ambient air temperature for operation	-25-50 °C
Operating altitude	2000 m without derating
Flame retardance	requirement 2 conforming to NF F 16-102, requirement 2 conforming to NF F 16-101, V1 conforming to UL 94
Product certifications	UKCA, CE, EAC, CSA, UL, CCC, CB Scheme
