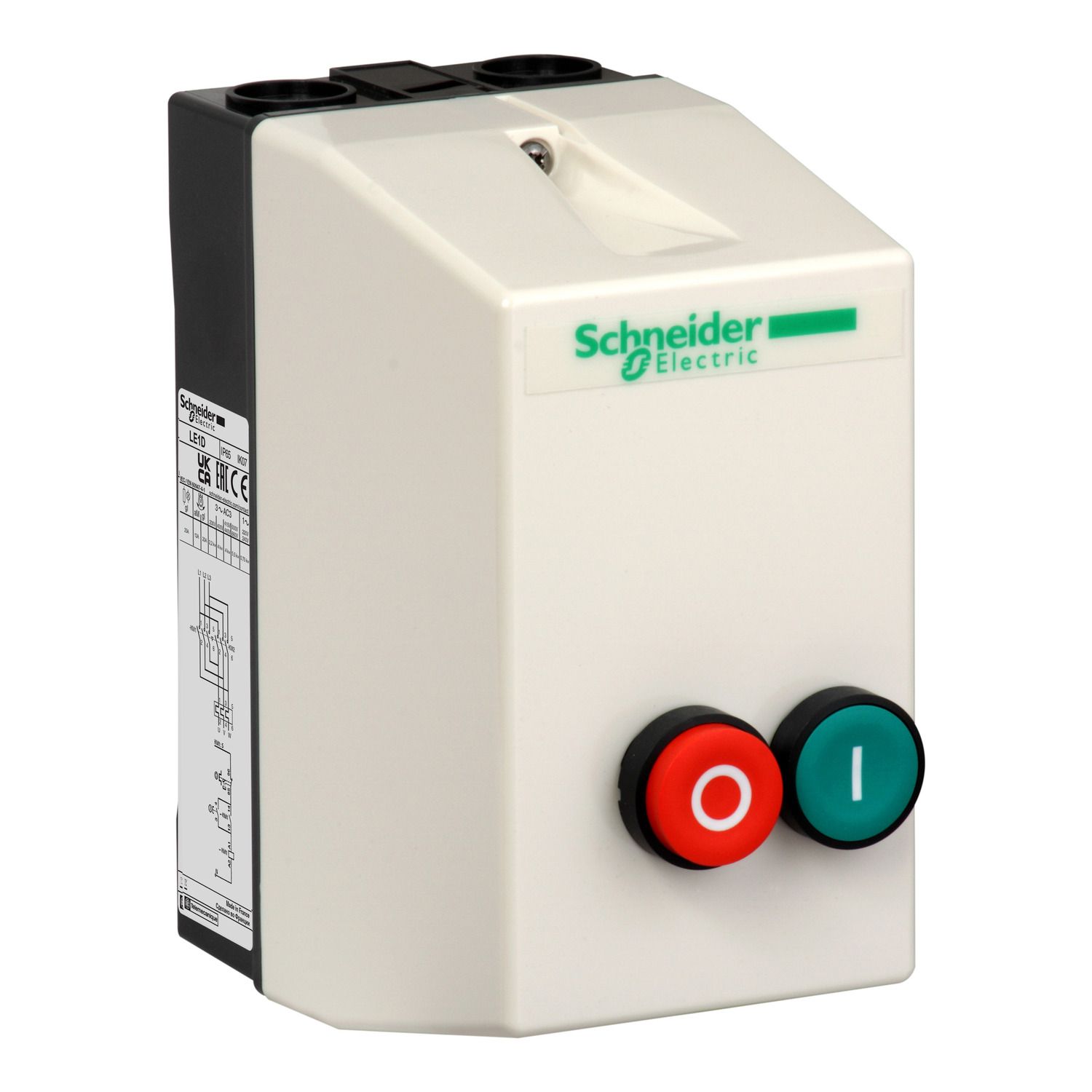

TeSys LE enclosed DOL starter for 3P non-reversing motor control up to 15kW at 400V. It includes a contactor LC1D with a 110V AC 50/60Hz control circuit. ON/OFF motor control by a green start push-button (I) and a red stop/reset push-button (O). Polycarbonate enclosure providing IP65 protection. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. To operate, it must be fitted with a LRD thermal overload relay depending on the motor power (to be ordered separately). Conforming to IEC 60947-4-1, environmental compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LE1D |
| Device application | standard |
| Range | TeSys |
| Control type | push-button stop/reset red O, push-button start green I |
| Utilisation category | AC-3 |
| Device composition | contactor, thermal overload relay ordered separately |
| Product name | TeSys LE |
| Product or component type | enclosed DOL starter |
| Complementary | |
| Compatibility code | LE1D |
| Height | 201 mm |
| [Ithe] conventional enclosed thermal current | 26.5 A |
| Motor power kW | 18.5 kW at 660/690 V AC 50/60 Hz, 18.5 kW at 500 V AC 50/60 Hz, 7.5 kW at 220/230 V AC 50/60 Hz, 15 kW at 440 V AC 50/60 Hz, 15 kW at 415 V AC 50/60 Hz, 15 kW at 380/400 V AC 50/60 Hz |
| Depth | 153.5 mm |
| Width | 101 mm |
| Cable entry number | 2 ISO25 bottom, 2 ISO20 bottom, 2 ISO25 top, 2 ISO20 top |
| Net weight | 4.32 kg |
| [Uc] control circuit voltage | 110 V AC 50/60 Hz |
| Environment | |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Environmental characteristic | standard environment |
| Ambient air temperature for operation | -5-40 °C |
| IK degree of protection | IK07 conforming to IEC 60529 |
| Material | polycarbonate |
| Standards | IEC 60947-4-1 |
| Product certifications | UKCA |
