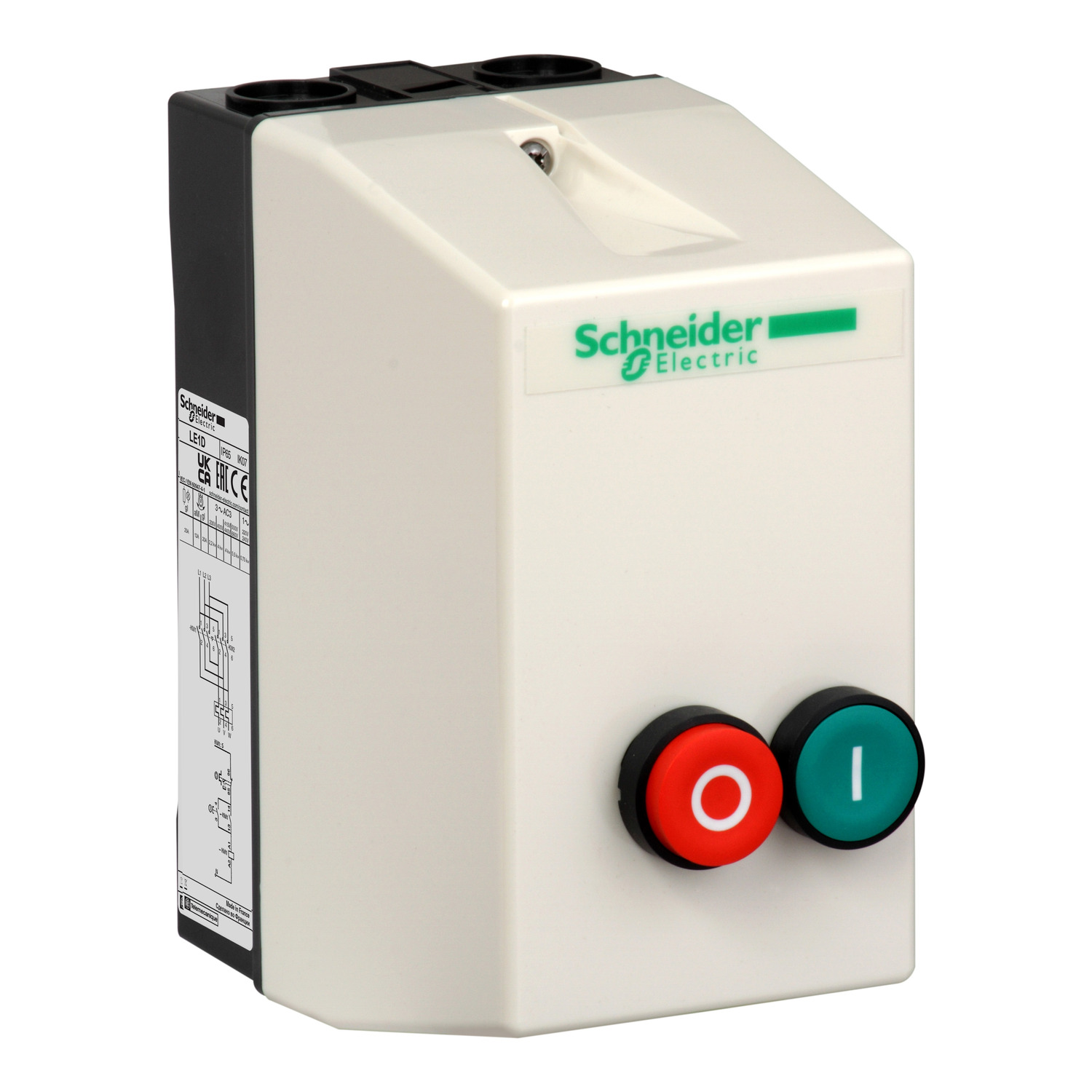

TeSys Control enclosed starter with contactor for 3P motors up to 7.5kW@400V (17A AC-3). To be completed with Deca overload relay for motor protection against overload. ON/OFF motor starters: 1-way rotation control of 3-phase motor, by green & red pushbuttons. Self-extinguishing ABS material enclosure, IP65 protection. It includes a pre-wired contactor LC1D with a control circuit 220V 50/60Hz. It conforms to IEC 60947-4-1,environmental compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LE1D |
| Device application | standard |
| Range | TeSys |
| Control type | push-button stop/reset red O, push-button start green I |
| Utilisation category | AC-3 |
| Device composition | contactor, thermal overload relay ordered separately |
| Product name | TeSys LE |
| Product or component type | enclosed DOL starter |
| Complementary | |
| Compatibility code | LE1D |
| Height | 201 mm |
| [Ithe] conventional enclosed thermal current | 17 A |
| Motor power kW | 7.5 kW at 380/400 V AC 50/60 Hz, 9 kW at 440 V AC 50/60 Hz, 9 kW at 415 V AC 50/60 Hz, 4 kW at 220/230 V AC 50/60 Hz, 10 kW at 660/690 V AC 50/60 Hz, 10 kW at 500 V AC 50/60 Hz |
| Depth | 153.5 mm |
| Width | 101 mm |
| Cable entry number | 2 ISO25 bottom, 2 ISO20 bottom, 2 ISO25 top, 2 ISO20 top |
| Net weight | 1.015 kg |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Environment | |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Environmental characteristic | standard environment |
| Ambient air temperature for operation | -5-40 °C |
| IK degree of protection | IK07 conforming to IEC 60529 |
| Material | polycarbonate |
| Standards | IEC 60947-4-1 |
| Product certifications | UKCA |
