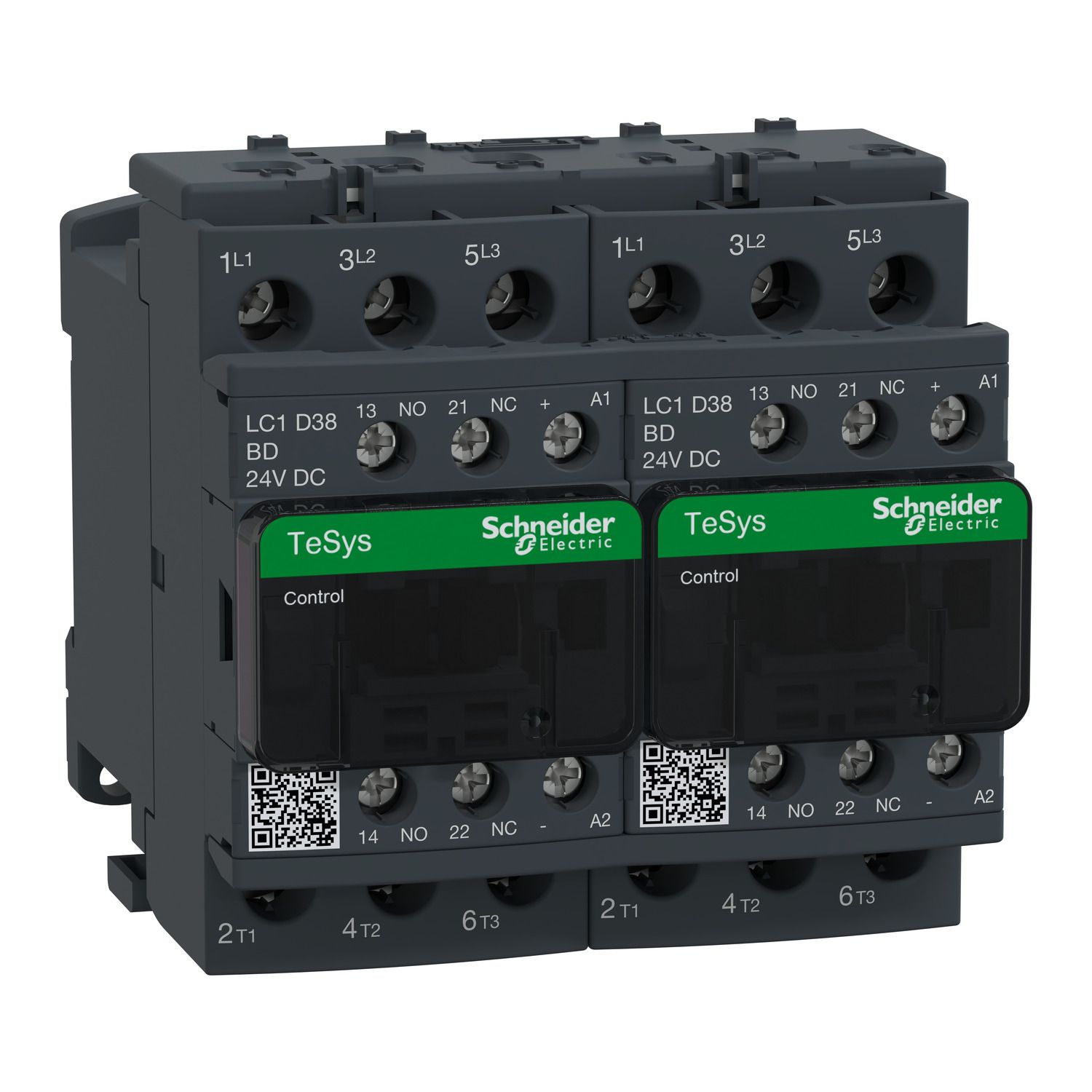

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 38A/440V AC-3/3e (18.5kW@400V). It provides 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Electrical durability | 1.4 Mcycles 38 A AC-3e at Ue <= 440 V, 1.4 Mcycles 38 A AC-3 at Ue <= 440 V, 1.4 Mcycles 50 A AC-1 at Ue <= 440 V |
| Device presentation | preassembled with reversing power busbar |
| Connections - terminals | power circuit: screw clamp terminals 2 cable(s) 2.5-10 mm²solid, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm²solid, power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm²flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1-10 mm²flexible with cable end, power circuit: screw clamp terminals 2 cable(s) 2.5-10 mm²flexible without cable end, power circuit: screw clamp terminals 1 cable(s) 2.5-10 mm²flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end |
| Associated fuse rating | 63 A gG at <= 690 V coordination type 2 for power circuit, 63 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1 |
| Standards | IEC 60335-1, UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14 |
| Control circuit type | DC standard |
| Protective cover | with |
| [Ui] rated insulation voltage | signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified, power circuit: 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Operating time | 16...24 ms opening, 53.55...72.45 ms closing |
| [Ie] rated operational current | 38 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| Utilisation category | AC-3e, AC-1, AC-3 |
| Auxiliary contact composition | 1 NO + 1 NC |
| Average impedance | 2 mOhm - Ith 50 A 50 Hz for power circuit |
| Power dissipation per pole | 3 W AC-3e, 3 W AC-3, 5 W AC-1 |
| [Uc] control circuit voltage | 24 V DC |
| Product certifications | CB, UKCA, BV, GL, LROS (Lloyds register of shipping), DNV, CCC, GOST, RINA, CSA, UL |
| [Icw] rated short-time withstand current | 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 310 A 40 °C - 10 s for power circuit, 150 A 40 °C - 1 min for power circuit, 430 A 40 °C - 1 s for power circuit, 60 A 40 °C - 10 min for power circuit |
| Device short name | LC2D |
| Mechanical durability | 30 Mcycles |
| Tightening torque | power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2, power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm |
| Range | TeSys Deca, TeSys |
| Irms rated making capacity | 550 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity | 550 A at 440 V for power circuit conforming to IEC 60947 |
| Safety reliability level | B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 |
| [Ith] conventional free air thermal current | 50 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit |
| Range of product | TeSys Deca |
| Interlocking type | mechanical |
| Motor power kW | 18.5 kW at 660...690 V AC 50...60 Hz, 18.5 kW at 500 V AC 50...60 Hz, 18.5 kW at 440 V AC 50...60 Hz, 18.5 kW at 415 V AC 50...60 Hz, 18.5 kW at 380...400 V AC 50...60 Hz, 9 kW at 220...230 V AC 50...60 Hz |
| Motor power hp | 5 hp at 240 V AC 60 Hz for 1 phase motors |
| Poles description | 3P |
| Maximum operating rate | 3600 cyc/h 60 °C |
| Pole contact composition | 3 NO |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Product name | TeSys Deca |
| Product or component type | reversing contactor |
| Contactor application | resistive load, motor control |
| Mounting support | plate, rail |
| [Ue] rated operational voltage | power circuit: <= 300 V DC, power circuit: <= 690 V AC 25...400 Hz |
| Complementary | |
| Compatibility code | LC2D |
| Signalling circuit frequency | 25...400 Hz |
| Auxiliary contacts type | type mirror contact 1 NC conforming to IEC 60947-4-1, type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 |
| Coil technology | built-in bidirectional peak limiting diode suppressor |
| Minimum switching current | 5 mA for signalling circuit |
| Non-overlap time | 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact |
| Minimum switching voltage | 17 V for signalling circuit |
| Time constant | 28 ms |
| Control circuit voltage limits | 1...1.25 Uc (60-70 °C):operational DC, 0.7...1.25 Uc (-40-60 °C):operational DC, 0.1...0.25 Uc (-40-70 °C):drop-out DC |
| Inrush power in W | 5.4-5.4 W (at 20 °C) |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Hold-in power consumption in W | 5.4-5.4 W at 20 °C |
| Contact compatibility | M4 |
| Environment | |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Ambient air temperature for storage | -60-80 °C |
| Climatic withstand | conforming to IEC 60947-1 Annex Q category D, conforming to IACS E10 |
| Height | 85 mm |
| Ambient air temperature for operation | 60-70 °C with derating, -40-60 °C |
| Operating altitude | 0...3000 m |
| Net weight | 1.137 kg |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Pollution degree | 3 |
| Mechanical robustness | shocks contactor open: 8 Gn for 11 ms, shocks contactor closed: 15 Gn for 11 ms, vibrations contactor closed: 4 Gn, 5...300 Hz, vibrations contactor open: 2 Gn, 5...300 Hz |
| Depth | 101 mm |
| Width | 90 mm |
| Flame retardance | V1 conforming to UL 94 |
