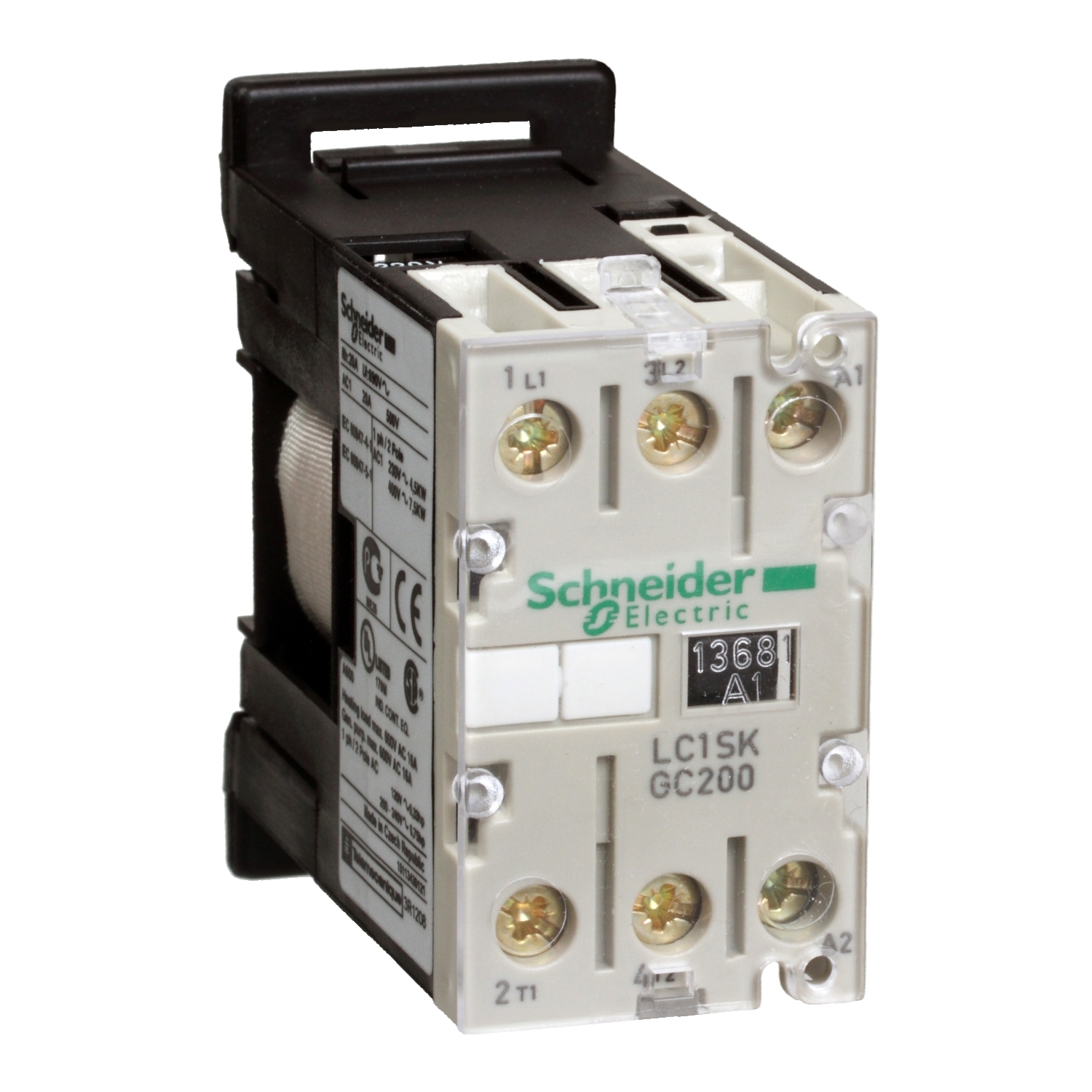

Mini contactor, TeSys SK, 2P(2NO), AC-3, 690V 5A, 240V AC coil

Manufacturer: Schneider Electric

SKU: LC1SKGC200U7

GTIN: 3389110563085

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Old price: $99.11 inc GST

Price: $39.34 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys SKGC mini-contactor, 2 poles (2NO), for non-inductive load applications up to 20A/690V AC-1, and for 1-phase motor control applications up to 5A/690V AC-3. It provides a 240V 50/60Hz AC control circuit, a transparent protective cover to prevent front face access, connection by screw terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. For use in modular panels, compact (27mm width), clipping on 35mm DIN rail. Location available to insert a suppressor module LA4SK (to be ordered separately). Multi standards certified (IEC, UL, CSA).

Products specifications

Attribute name	Attribute value
Main
Device short name	LC1SKGC
Range	TeSys
Range of product	TeSys SK
Poles description	2P
[Ie] rated operational current	20 A (at <50 °C) AC AC-1, 5 A at <= 400 V AC AC-3
Utilisation category	AC-1, AC-3
Pole contact composition	2 NO
Product name	TeSys SK
Product or component type	mini contactor
Contactor application	resistive load, motor control
[Ue] rated operational voltage	power circuit: 690 V AC 50/60 Hz
Complementary
Heat dissipation	1.4-1.4 W at 50/60 Hz
[Icw] rated short-time withstand current	40 A 55 °C for power circuit
Compatibility code	LC1SKGC
Mechanical durability	10 Mcycles
Tightening torque	power circuit: 0.8 N.m - on connector - with screwdriver pozidriv No 1
Connections - terminals	connector 2 cable(s) 0.35-1.5 mm²flexible with cable end, connector 1 cable(s) 0.35-6 mm²flexible with cable end, connector 2 cable(s) 0.35-2.5 mm²flexible without cable end, connector 1 cable(s) 0.5-6 mm²flexible without cable end, connector 2 cable(s) 1.5-4 mm²solid, connector 1 cable(s) 1.5-6 mm²solid
Associated fuse rating	20 A gI at <= 440 V for power circuit
Irms rated making capacity	50 A AC conforming to IEC 60947, 50 A AC conforming to NF C 63-110
Rated breaking capacity	40 A at <= 400 V conforming to IEC 60947, 40 A at <= 400 V conforming to NF C 63-110
Control circuit type	AC at 50/60 Hz
[Ith] conventional free air thermal current	20 A (at 55 °C) for power circuit
Control circuit voltage limits	drop-out: 0.2...0.75 Uc at 50/60 Hz (at <55 °C), operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C)
[Ui] rated insulation voltage	power circuit: 690 V conforming to CSA C22.2 No 14, power circuit: 690 V conforming to VDE 0110 group C, power circuit: 690 V conforming to UL 508, power circuit: 690 V conforming to IEC 60947, power circuit: 690 V conforming to BS 5424
Operating time	7...14 ms coil energisation and NO closing, 6...8 ms coil de-energisation and NO opening
Hold-in power consumption in VA	4.2-4.2 VA 50/60 Hz (at 20 °C)
Maximum operating rate	1200 cyc/h
Inrush power in VA	16-16 VA 50/60 Hz (at 20 °C)
Mounting support	rail
Standards	CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Average impedance	4 mOhm - Ith 20 A 50 Hz for power circuit
[Uc] control circuit voltage	240 V AC 50/60 Hz
Product certifications	cULus, EAC, UKCA, CE, CB Scheme
Environment
IP degree of protection	IP2X conforming to VDE 0106
Protective treatment	TC conforming to DIN 50015, TC conforming to IEC 60068
Ambient air temperature for storage	-50-70 °C
Ambient air temperature for operation	-20-50 °C
Height	56 mm
Depth	55.5 mm
Width	27 mm
Operating altitude	2000 m without derating
Net weight	0.132 kg
