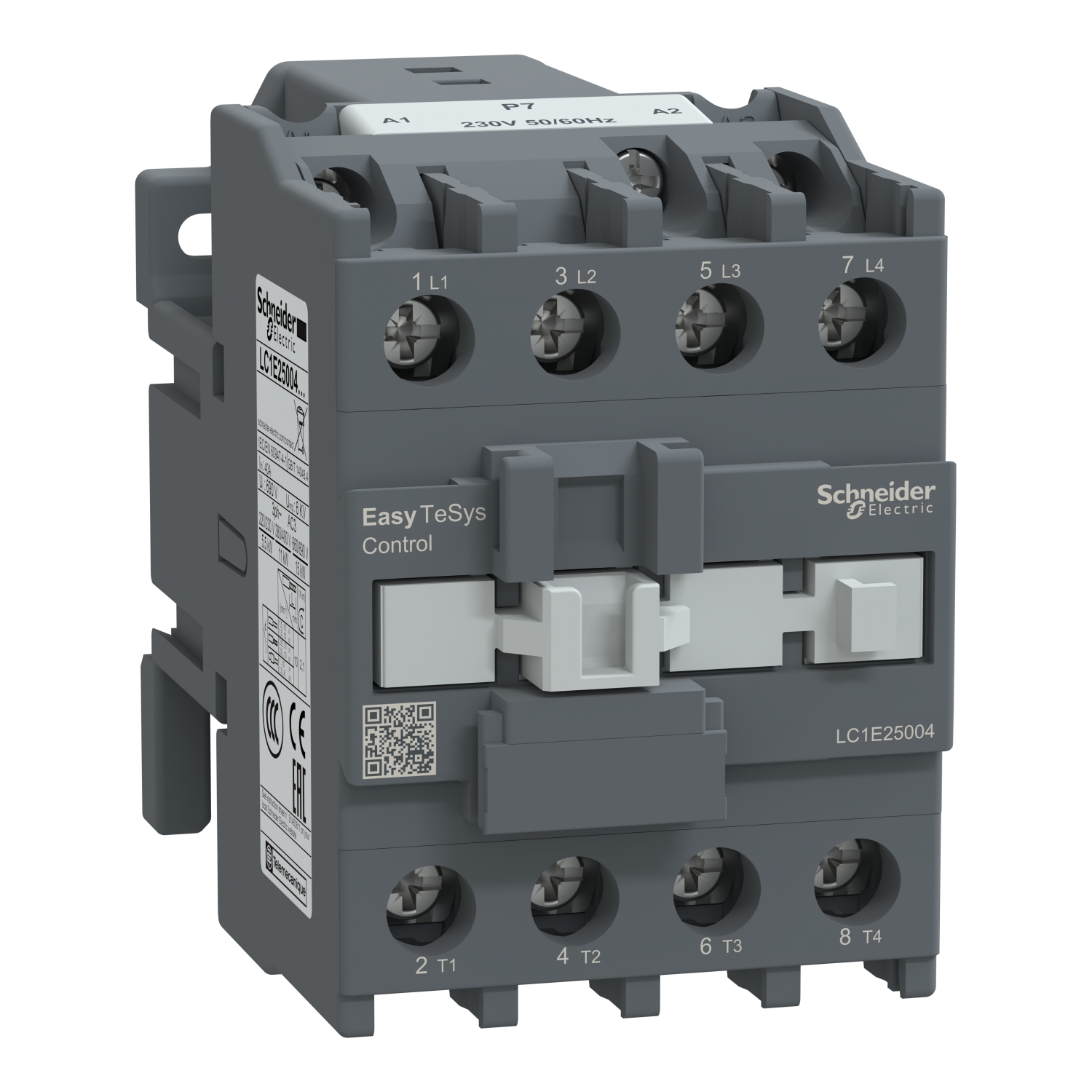

Easy TeSys Control contactor 4 poles for category AC-1 applications up to 40A. It provides a 230V 50/60Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 56mm width for standard. It provides standard reliability and durability with 0.35 Mcycles electrical durability AC-1 and 10 Mcycles mechanical durability. Operating rates up to 1800 cycles per hour. It can cover -5°C to 55°C working temperature and mounted by DIN-rail. No derating up to 3000m altitude. Available worldwide, it is multi-standards certified (CB scheme,CE,CCC,EAC) and Environmental compliant (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LC1E |
| Poles description | 4P |
| [Ie] rated operational current | 40 A (at <60 °C) at <= 415 V AC AC-1 for power circuit |
| Utilisation category | AC-1 |
| Range | Easy TeSys |
| Product or component type | contactor |
| Contactor application | resistive load |
| Range of product | Easy TeSys Control |
| [Ue] rated operational voltage | power circuit: <= 690 V AC 50/60 Hz |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Complementary | |
| Heat dissipation | 2-3 W for control circuit |
| [Icw] rated short-time withstand current | 50 A 40 °C - 600 s for power circuit, 120 A 40 °C - 60 s for power circuit, 240 A 40 °C - 10 s for power circuit |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Hold-in power consumption in VA | 8.5-8.5 VA 60 Hz cos phi 0.3 (at 20 °C), 8.3-8.3 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 350000 cycles AC-1, 1200000 cycles AC-3 |
| Tightening torque | power circuit: 1.5 N.m, control circuit: 1.2 N.m |
| Maximum operating rate | 1800 cyc/h 60 °C |
| Operating time | 4...19 ms on opening, 12...22 ms on closing |
| Connections - terminals | power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-6 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end |
| Pole contact composition | 4 NO |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Inrush power in VA | 95-95 VA 60 Hz cos phi 0.75 (at 20 °C), 95-95 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Associated fuse rating | 40 A gG at <= 690 V coordination type 1 for power circuit conforming to IEC 60947-5-1 |
| Irms rated making capacity | 250 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 200 A at 440 V for power circuit conforming to IEC 60947 |
| Insulation resistance | > 10 MOhm for control circuit |
| Pollution degree | 3 |
| Control circuit type | AC at 50/60 Hz |
| Mounting support | DIN rail, plate |
| Control circuit voltage limits | 0.3...0.6 Uc (-5-55 °C):drop-out 50/60 Hz, 0.85...1.1 Uc (-5-55 °C):operational 50/60 Hz |
| [Ith] conventional free air thermal current | 40 A (at 60 °C) for power circuit |
| Average impedance | 2.5 mOhm - Ith 40 A 50 Hz for power circuit |
| Power dissipation per pole | 3.2 W AC-1, 1.6 W AC-3 |
| Environment | |
| Permissible ambient air temperature around the device | -5-55 °C operation, -60-80 °C storage, -20-70 °C at Uc |
| Depth | 93 mm |
| Width | 56 mm |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Operating altitude | 3000 m without derating |
| Mechanical robustness | shocks contactor open (6 Gn for 11 ms) , shocks contactor closed (10 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , vibrations contactor open (1.5 Gn, 5...300 Hz) |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Net weight | 0.52 kg |
| Standards | IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1 |
| Height | 64 mm |
| Product certifications | CE, EAC |
