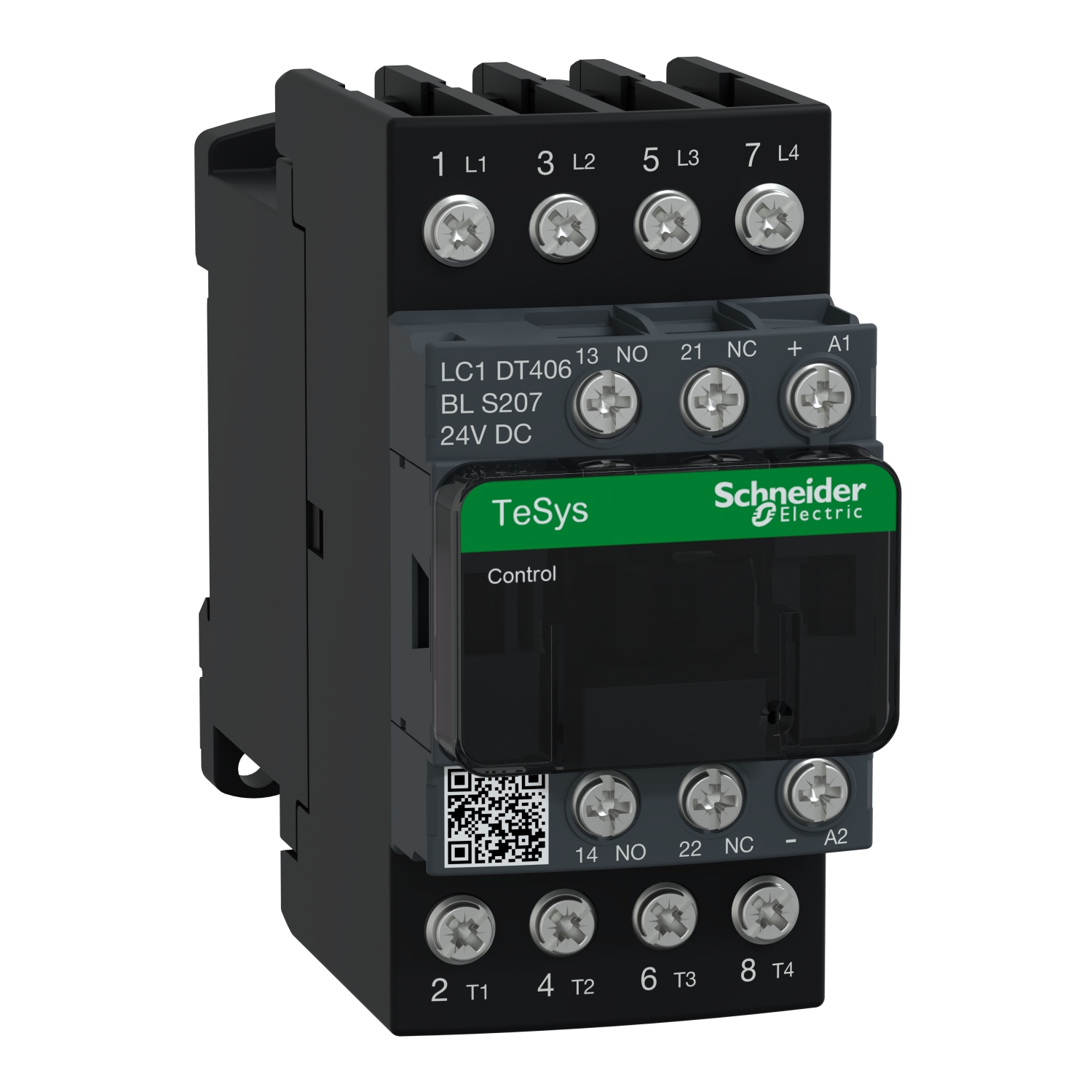

TeSys Deca railway contactor, 4 poles (4NO), for resistive load applications up to 40A/440V AC-1. It is fully compliant with railway standards. It provides a 24V DC low consumption coil, 1NO+1NC built-in auxiliary contact, connection by lug-ring terminals. It procures high reliability and durability with operating rates up to 3600 cycles/hour and environment temperature 60°C. It provides IP20 protection on front face confirming to IEC 60529 Multi international standards certified.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LC1D |
| Range | TeSys Deca, TeSys |
| Range of product | TeSys Deca |
| Poles description | 4P |
| [Ie] rated operational current | 40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
| Utilisation category | AC-4, AC-3e, AC-3, AC-1 |
| Product or component type | contactor |
| Contactor application | resistive load |
| [Ue] rated operational voltage | power circuit: <= 690 V AC 25...400 Hz |
| Complementary | |
| [Icw] rated short-time withstand current | 120 A 40 °C - 1 min for power circuit, 50 A 40 °C - 10 min for power circuit, 380 A 40 °C - 1 s for power circuit, 240 A 40 °C - 10 s for power circuit, 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit |
| Compatibility code | LC1D |
| Mechanical durability | 30 Mcycles |
| Electrical durability | 1.4 Mcycles 40 A AC-1 at Ue <= 440 V |
| Tightening torque | power circuit: 1.8 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5, power circuit: 1.8 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5, control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5, control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5 |
| Signalling circuit frequency | 25...400 Hz |
| Minimum switching voltage | 17 V for signalling circuit |
| Operating time | 25 ±20 % ms opening, 77 ±15 % ms closing |
| Time constant | 37 ms |
| Associated fuse rating | 40 A gG at <= 690 V coordination type 2 for power circuit, 63 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1 |
| Irms rated making capacity | 450 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity | 450 A at 440 V for power circuit conforming to IEC 60947 |
| Safety reliability level | B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 |
| Standards | DIN 5510-2, EN 45545: R26 HL3, EN 45545: R22 HL3, EN/IEC 60947-5-1, EN/IEC 60947-4-1 |
| Control circuit type | DC low consumption |
| Control circuit voltage limits | 0.7...1.25 Uc (-40-70 °C):operational DC, 0.1...0.25 Uc (-40-70 °C):drop-out DC |
| [Ith] conventional free air thermal current | 40 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit |
| Protective cover | with |
| [Ui] rated insulation voltage | signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Operating altitude | 0...3000 m |
| Auxiliary contacts type | type mirror contact 1 NC conforming to IEC 60947-4-1, type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 |
| Inrush power in W | 4-4 W (at 20 °C) |
| Maximum operating rate | 3600 cyc/h 60 °C |
| Coil technology | with integral suppression device |
| Connections - terminals | power circuit: lugs-ring terminals - external diameter: 9 mm, control circuit: lugs-ring terminals - external diameter: 8 mm |
| Pole contact composition | 4 NO |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Product name | TeSys Deca |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Hold-in power consumption in W | 4-4 W at 20 °C |
| Contact compatibility | M5 |
| Mounting support | plate, rail |
| Auxiliary contact composition | 1 NO + 1 NC |
| Average impedance | 2 mOhm - Ith 40 A 50 Hz for power circuit |
| Power dissipation per pole | 1.25 W AC-3, 3.2 W AC-1 |
| [Uc] control circuit voltage | 24 V DC |
| Minimum switching current | 5 mA for signalling circuit |
| Non-overlap time | 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact |
| Product certifications | CB, UKCA, TR, UA, EAC, CCC, IEC |
| Environment | |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | shocks contactor open (8 Gn for 11 ms) , shocks contactor closed (15 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz) |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Ambient air temperature for storage | -60-80 °C |
| Pollution degree | 3 |
| Climatic withstand | conforming to IEC 60947-1 Annex Q category D, conforming to IACS E10 |
| Height | 91 mm |
| Ambient air temperature for operation | -40-70 °C |
| Depth | 107 mm |
| Width | 45 mm |
| Flame retardance | V0 conforming to UL 94 |
| Net weight | 0.425 kg |
