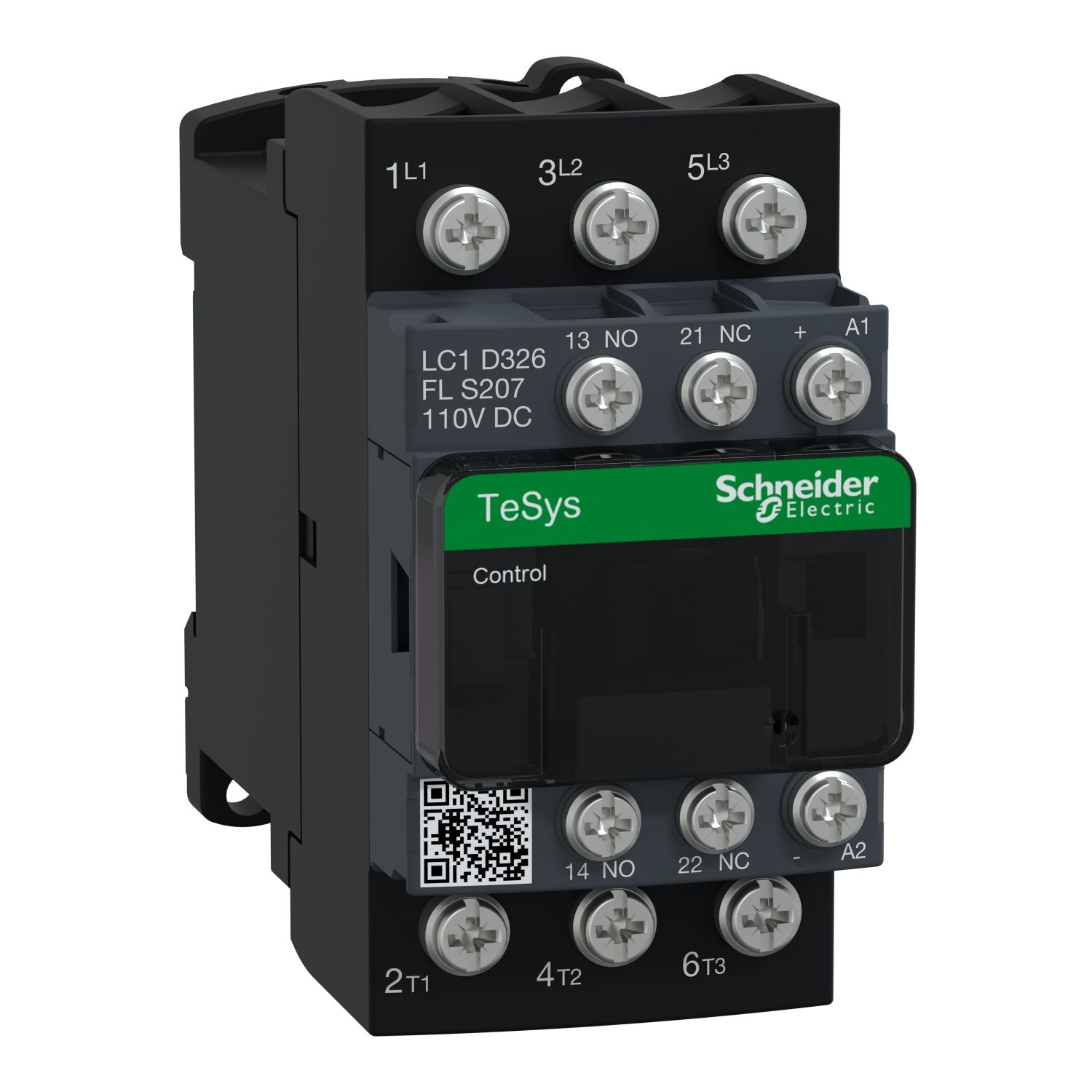

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Ue] rated operational voltage | power circuit: <= 690 V AC 25...400 Hz |
| Contactor application | resistive load, motor control |
| Product or component type | contactor |
| Poles description | 3P |
| Range of product | TeSys Deca |
| Range | TeSys, TeSys Deca |
| Device short name | LC1D |
| Utilisation category | AC-3, AC-1, AC-3e |
| [Ie] rated operational current | 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 32 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Complementary | |
| Mounting support | plate, rail |
| Contact compatibility | M5 |
| Hold-in power consumption in W | 4-4 W at 20 °C |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Product name | TeSys Deca |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Pole contact composition | 3 NO |
| Connections - terminals | control circuit: lugs-ring terminals - external diameter: 8 mm, power circuit: lugs-ring terminals - external diameter: 12 mm |
| Maximum operating rate | 3600 cyc/h 60 °C |
| Inrush power in W | 4-4 W (at 20 °C) |
| Motor power kW | 7.5 kW at 220/230 V AC 50 Hz (AC-3), 15 kW at 380/400 V AC 50 Hz (AC-3), 15 kW at 415 V AC 50 Hz (AC-3), 15 kW at 440 V AC 50 Hz (AC-3), 18.5 kW at 500 V AC 50 Hz (AC-3), 18.5 kW at 660/690 V AC 50 Hz (AC-3), 7.5 kW at 220/230 V AC 50 Hz (AC-3e), 15 kW at 380/400 V AC 50 Hz (AC-3e), 15 kW at 415 V AC 50 Hz (AC-3e), 15 kW at 440 V AC 50 Hz (AC-3e), 18.5 kW at 500 V AC 50 Hz (AC-3e), 18.5 kW at 660/690 V AC 50 Hz (AC-3e) |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) for signalling circuit, 50 A (at 60 °C) for power circuit |
| Control circuit voltage limits | 0.1...0.25 Uc (-40-70 °C):drop-out DC, 0.7...1.25 Uc (-40-70 °C):operational DC |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Rated breaking capacity | 550 A at 440 V for power circuit conforming to IEC 60947 |
| Irms rated making capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 550 A at 440 V for power circuit conforming to IEC 60947 |
| Time constant | 37 ms |
| Operating time | 77 ±15 % ms closing, 25 ±20 % ms opening |
| Minimum switching voltage | 17 V for signalling circuit |
| Tightening torque | control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5, control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5, power circuit: 2.5 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M4, power circuit: 2.5 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M4 |
| Mechanical durability | 30 Mcycles |
| [Icw] rated short-time withstand current | 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit, 260 A 40 °C - 10 s for power circuit, 430 A 40 °C - 1 s for power circuit, 60 A 40 °C - 10 min for power circuit, 138 A 40 °C - 1 min for power circuit |
| Product certifications | IEC, CCC, EAC, UA, TR, UKCA, CB |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| Minimum switching current | 5 mA for signalling circuit |
| [Uc] control circuit voltage | 110 V DC |
| Power dissipation per pole | 2 W AC-3, 5 W AC-1, 2 W AC-3e |
| Average impedance | 2 mOhm - Ith 50 A 50 Hz for power circuit |
| Auxiliary contact composition | 1 NO + 1 NC |
| Coil technology | with integral suppression device |
| Auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1, type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Operating altitude | 0...3000 m |
| Overvoltage category | III |
| [Ui] rated insulation voltage | power circuit: 690 V conforming to IEC 60947-4-1, signalling circuit: 690 V conforming to IEC 60947-1 |
| Protective cover | with |
| Control circuit type | DC low consumption |
| Standards | EN/IEC 60947-4-1, EN/IEC 60947-5-1, EN 45545: R22 HL3, EN 45545: R26 HL3, DIN 5510-2 |
| Associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1, 63 A gG at <= 690 V coordination type 1 for power circuit, 63 A gG at <= 690 V coordination type 2 for power circuit |
| Signalling circuit frequency | 25...400 Hz |
| Electrical durability | 1.65 Mcycles 32 A AC-3 at Ue <= 440 V, 1.4 Mcycles 50 A AC-1 at Ue <= 440 V, 1.65 Mcycles 32 A AC-3e at Ue <= 440 V |
| Compatibility code | LC1D |
| Environment | |
| Flame retardance | V0 conforming to UL 94 |
| Width | 45 mm |
| Depth | 101 mm |
| Pollution degree | 3 |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Net weight | 0.375 kg |
| Ambient air temperature for operation | -40-70 °C |
| Height | 85 mm |
| Climatic withstand | conforming to IACS E10, conforming to IEC 60947-1 Annex Q category D |
| Ambient air temperature for storage | -60-80 °C |
| Mechanical robustness | vibrations contactor open (2 Gn, 5...300 Hz) , vibrations contactor closed (4 Gn, 5...300 Hz) , shocks contactor closed (15 Gn for 11 ms) , shocks contactor open (8 Gn for 11 ms) |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Contractual warranty | |
| Warranty | 18 |
