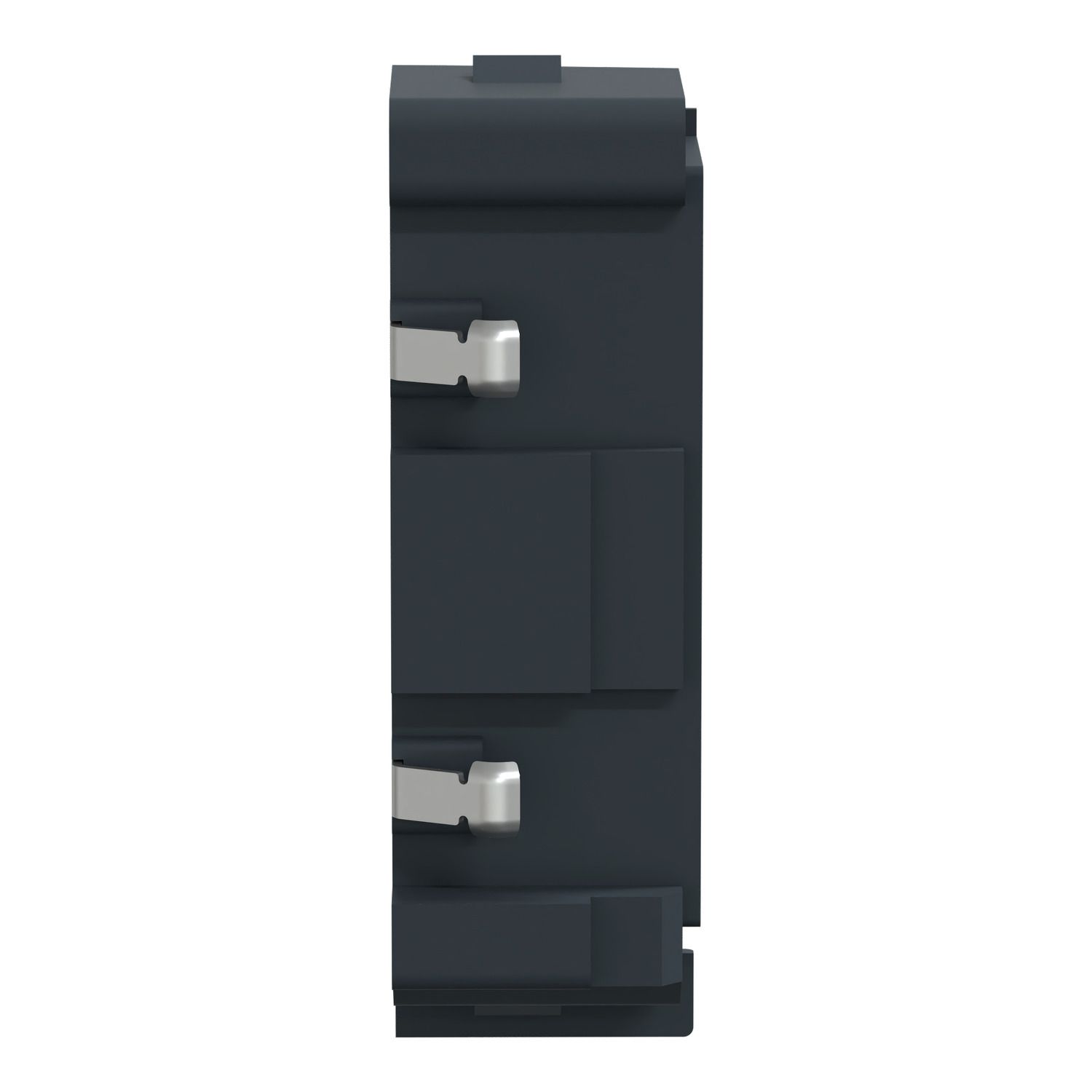

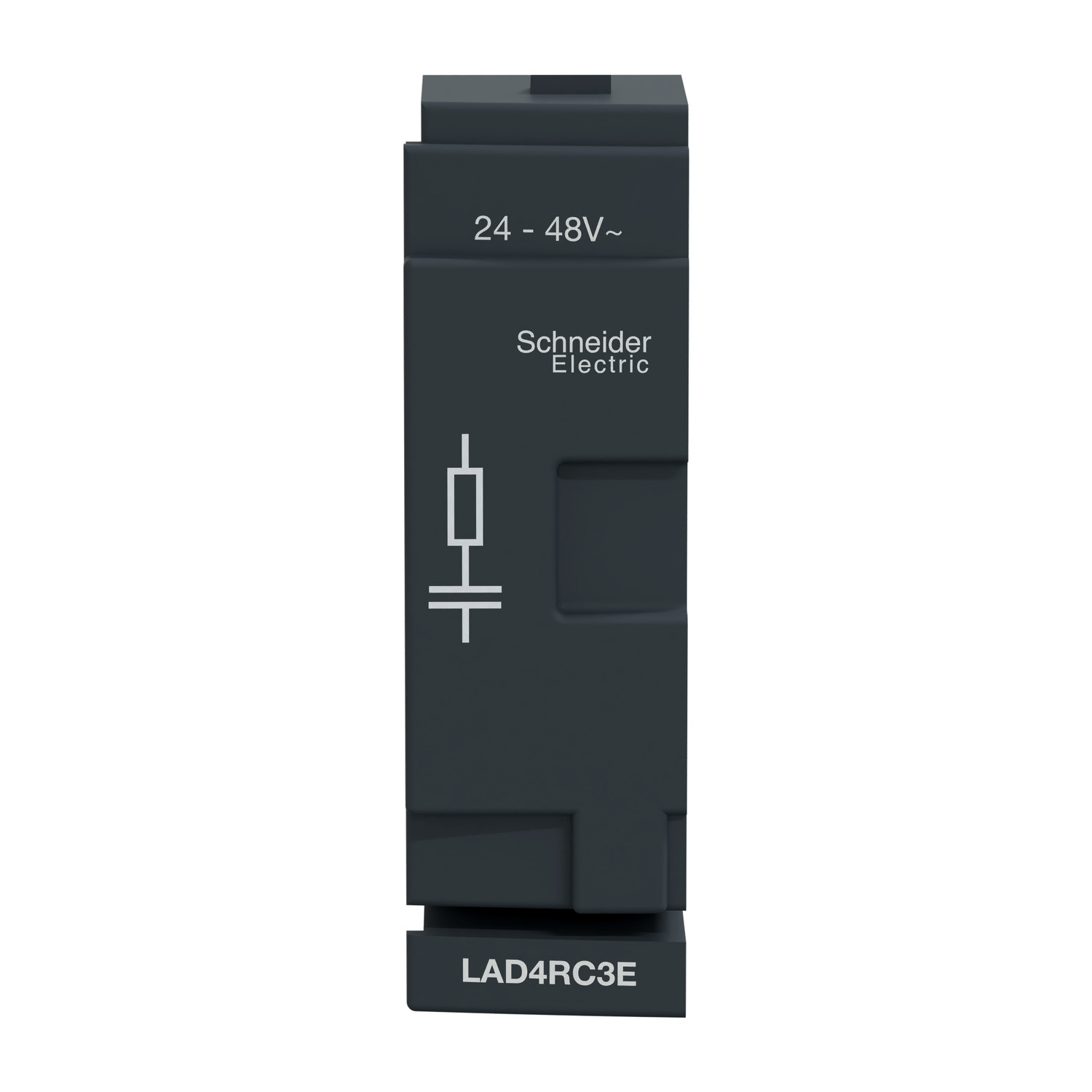

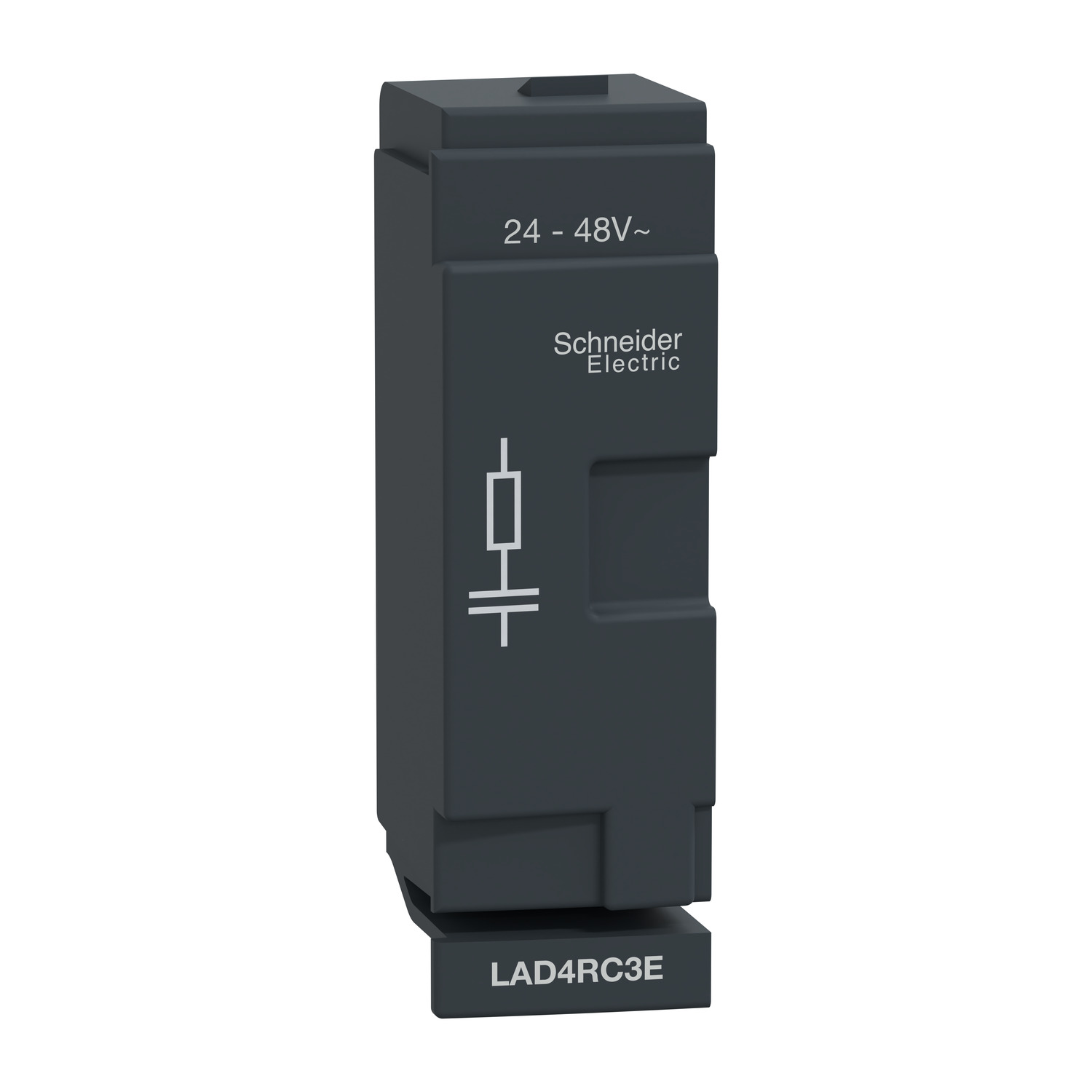

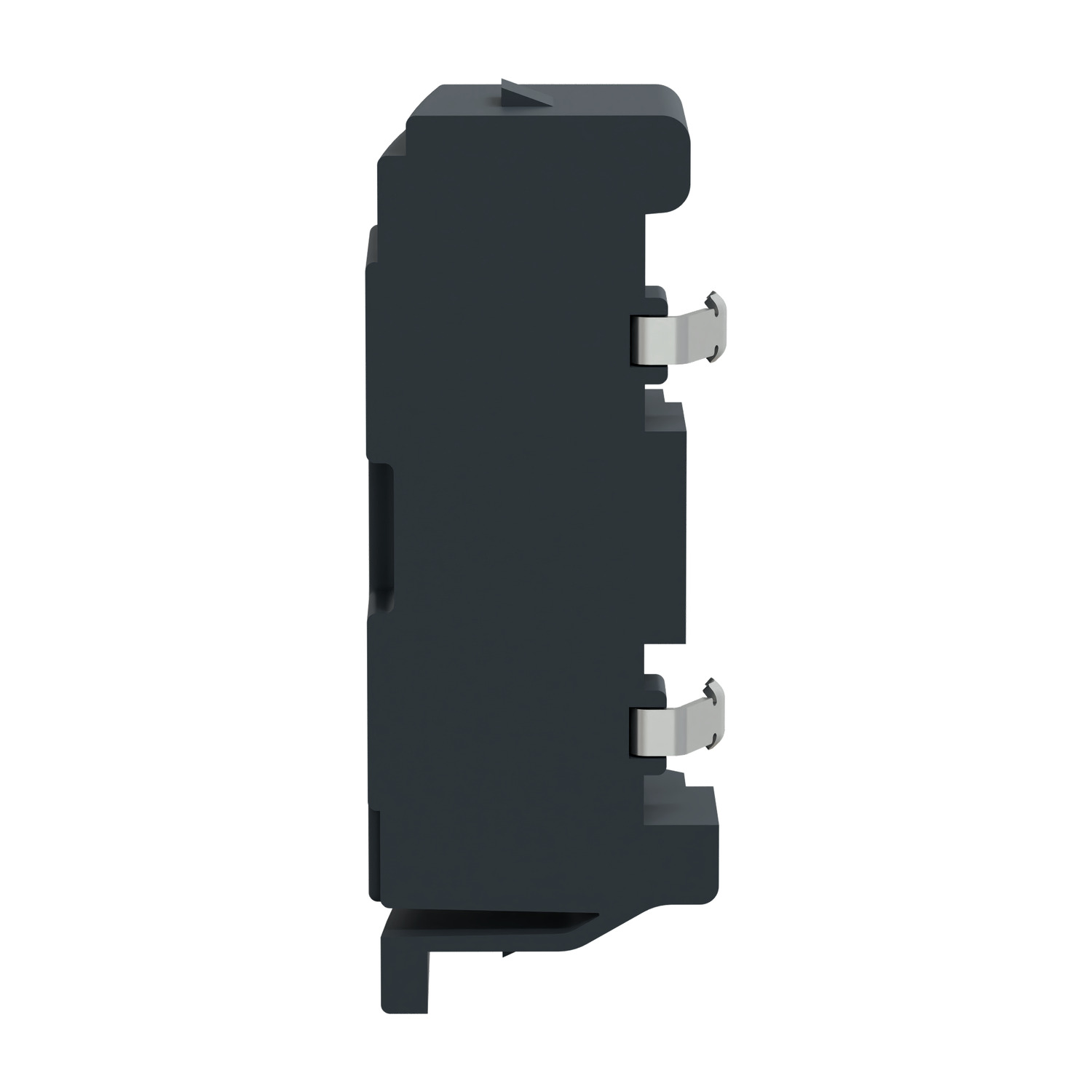

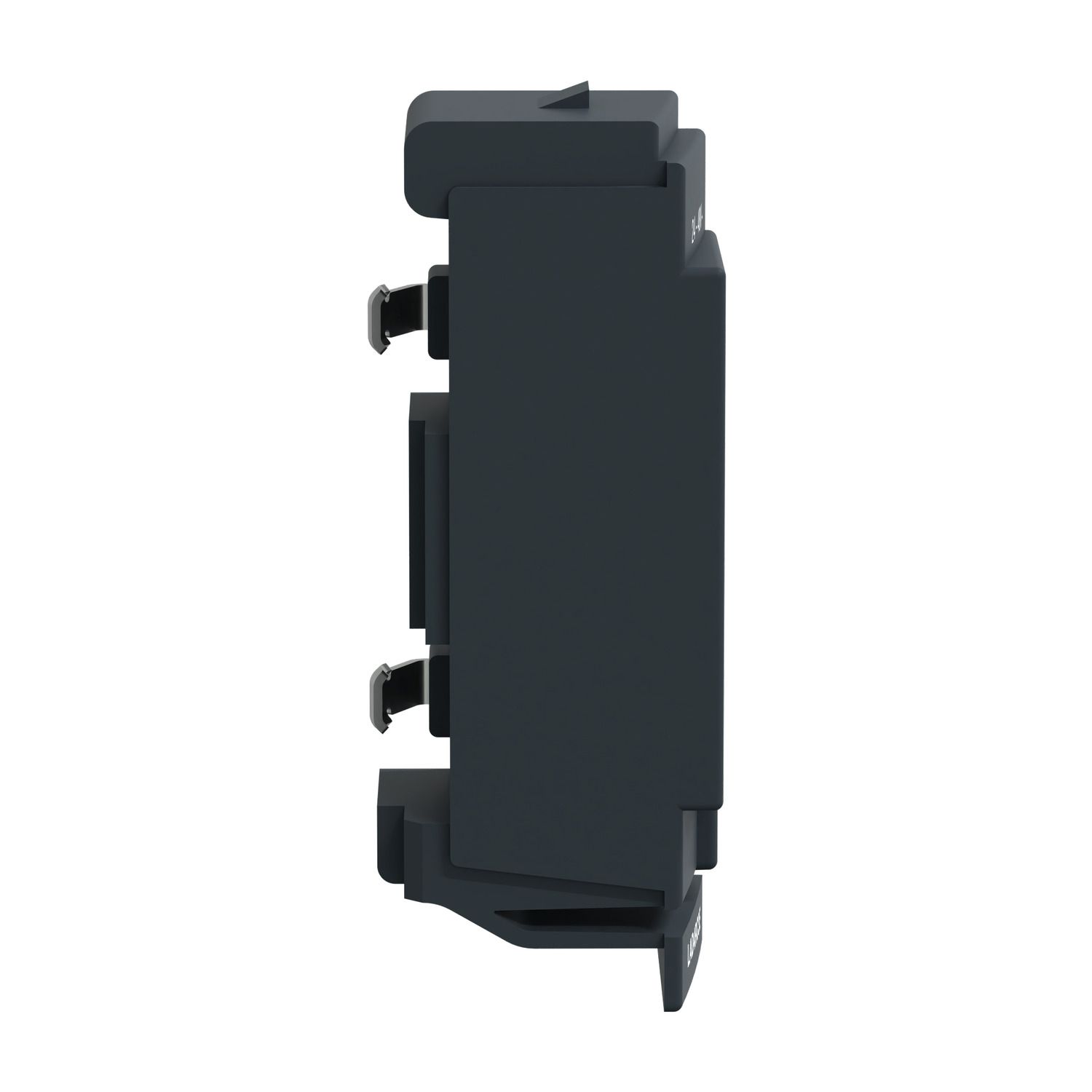

TeSys Deca suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 24-48V AC control circuit voltage, it provides a RC protection limiting the transient voltage to 3 Uc max. Clip-on front mounting, overall size of the contactor is unchanged. Sustainability compliant.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LAD4 |
| Product compatibility | 4P LC1DT60A...DT80A, 3P LC1D40A...D80A |
| Range | TeSys Deca, TeSys |
| Product or component type | suppressor module |
| Range of product | TeSys Deca |
| Complementary | |
| Suppressor technology | RC circuit |
| Colour | dark grey |
| Compatibility code | LAD4 |
| Mounting mode | by clips |
| Maximum peak voltage | 3 Uc |
| Mounting location | front |
| Net weight | 0.02 kg |
| [Uc] control circuit voltage | 24...48 V AC |
| Environment | |
| Ambient air temperature for storage | -40-80 °C |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Standards | GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, EN 60947-5-1, IEC 60947-5-1 |
| Ambient air temperature for operation | -25-55 °C |
| Product certifications | CSA, UL |
Only registered users can write reviews
Related products

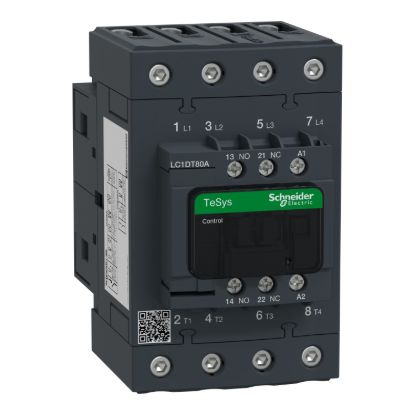

Contactor, TeSys D, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 80A, 48V AC 50/60Hz coil
LC1DT80AE7
Contactor, TeSys D, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 80A, 48V AC 50/60Hz coil
$1,628.00 inc GST
$646.15 inc GST
Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 48V AC 50/60Hz coil, spring terminals
LC1D40A3E7
Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 48V AC 50/60Hz coil, spring terminals
$409.75 inc GST
$162.63 inc GST

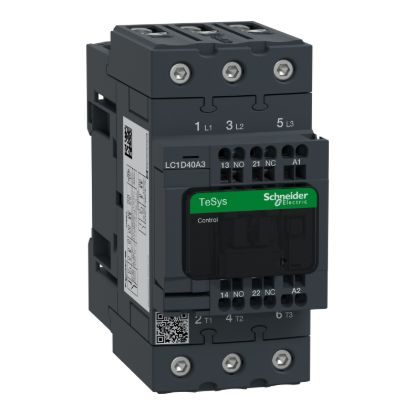

Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 24V AC 50/60Hz coil, spring terminals
LC1D40A3B7
Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, <=400V, 40A, 24V AC 50/60Hz coil, spring terminals
$409.75 inc GST
$162.63 inc GST
Contactor, TeSys D, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 80A, 24V AC 50/60Hz coil
LC1DT80AB7
Contactor, TeSys D, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 80A, 24V AC 50/60Hz coil
$1,689.60 inc GST
$670.60 inc GST

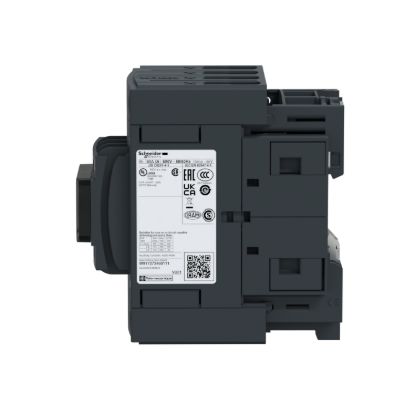

Contactor, TeSys D, TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 60A, 48VAC 50/60Hz coil
