Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA9Z |
| Quantity per set | set of 2 |
| Number of ways | 2 ways |
| Range | Linergy |
| Product name | BZ |

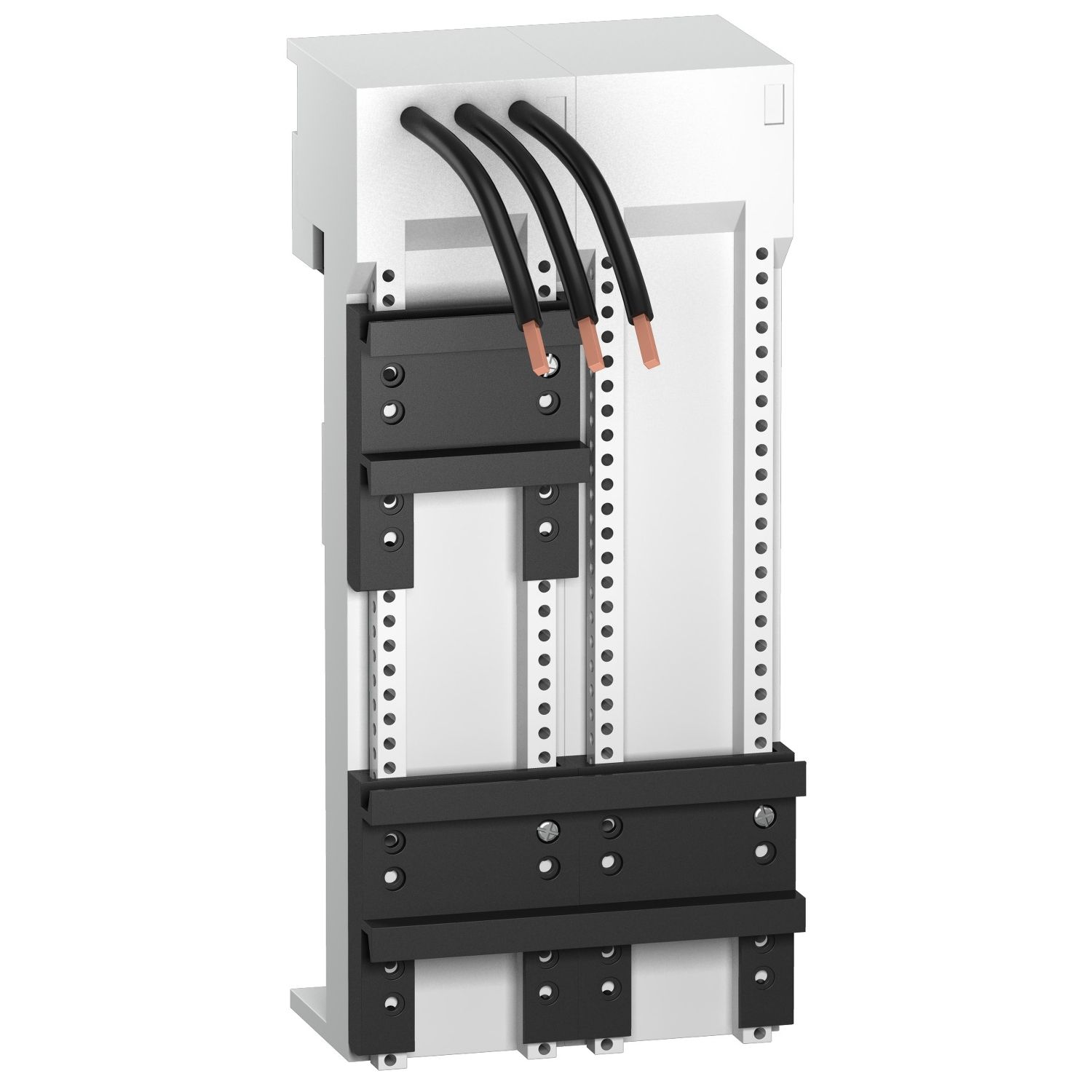

| Product or component type | adaptors for busbar systems |
| Range of product | TeSys, PowerPact multistandard |
| Complementary | |
| Product compatibility | LC1D, GV2ME, GV2LE, GV2P |
| Depth | 63 mm |
| Range compatibility | Spacial, TeSys D, TeSys GV2, Prisma Pack, Prisma PH, Prisma P, Prisma G |
| Width | 90 mm |
| Colour | grey |
| Poles description | 3P |
| [Ui] rated insulation voltage | 690 V |
| Permissible current | 32 A |
| Cable cross section | 6-6 mm² - AWG 10 |
| Height | 200 mm |
| Busbar pitch | 60 mm |
| Environment | |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | IEC, UL |
