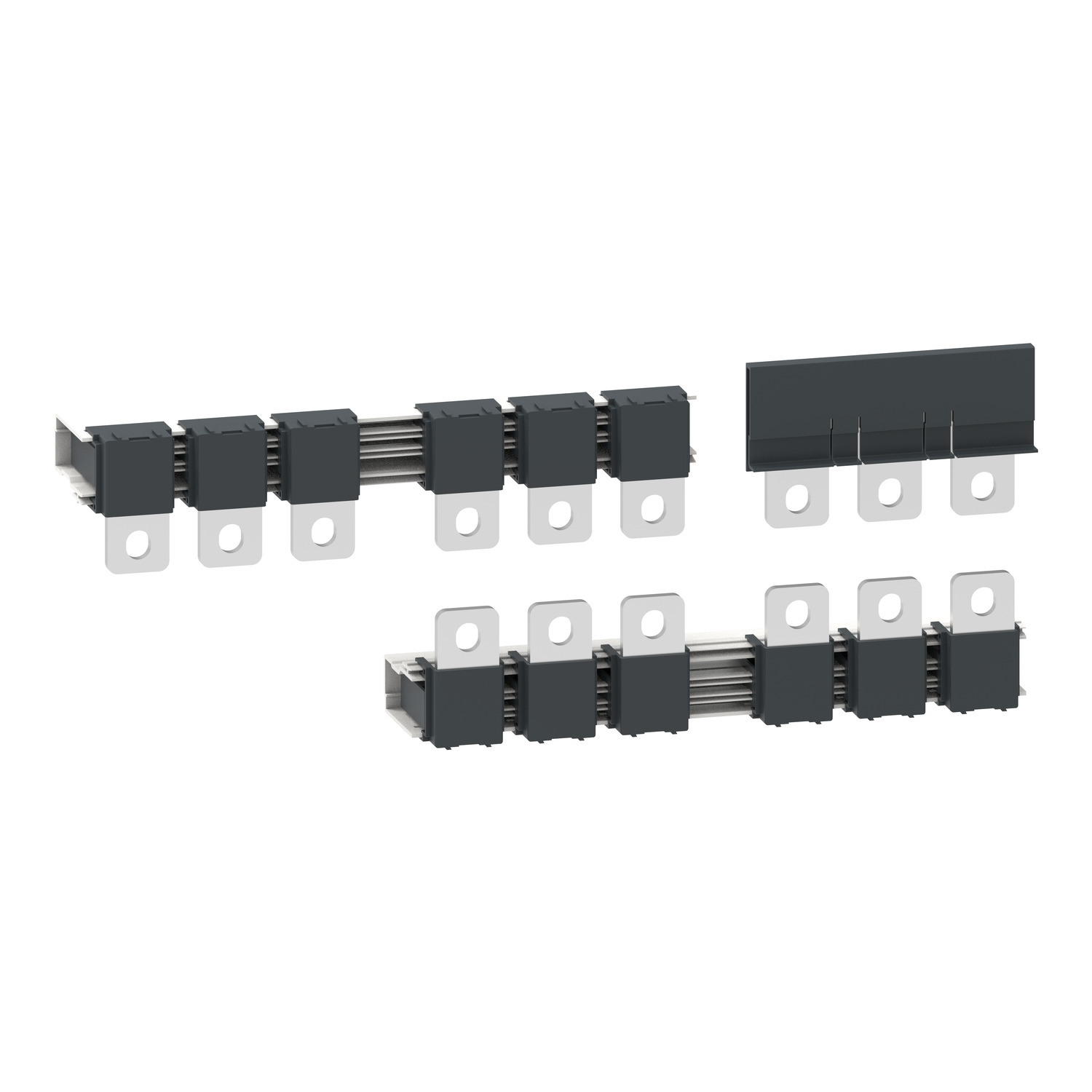

These accessories are star delta connection Kit for TeSys Giga contactor. To be used by Line-Delta bars for TeSys Giga 630-800 contactor and Star bars for TeSys Giga 265-500 contactor. They are sold by set of 1 part. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA9G |
| Electrical circuit type | star-delta |
| Quantity per set | set of 1 |
| Range | TeSys |
| Product or component type | set of connections |
| Accessory / separate part category | connection accessory |
| Complementary | |
| Product compatibility | LC1G265...500 |
| Depth | 88 mm |
| Width | 176 mm |
| Poles description | 3P |
| Net weight | 10.38 kg |
| Range compatibility | TeSys Giga |
| Height | 648.5 mm |
| Environment | |
| Operating altitude | 5000 m with derating factor, 3000 m without derating |
| Ambient air temperature for storage | -60-80 °C |
| Standards | EN/IEC 60947-4-1 |
