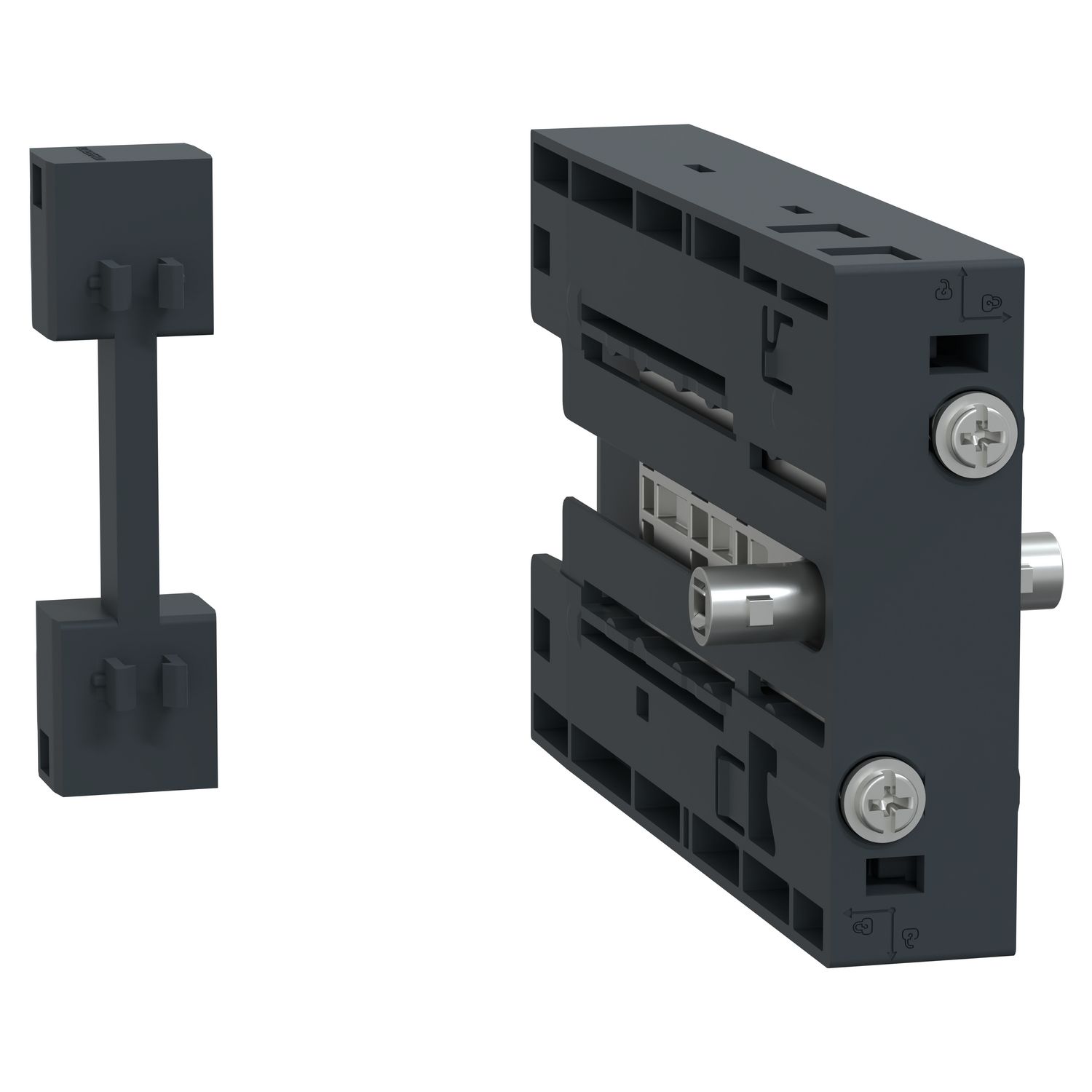

These accessories are mechanical interlock for Tesys Giga contactor identical frame. To be used for reversing and changeover assemblings. Without electrical interlocking. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Sustainability compliant.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA9G |
| Product compatibility | LC1G205...475, LC1G115...500 |
| Range compatibility | TeSys Giga |
| Electrical circuit type | changeover, star-delta, reversing |
| Poles description | 4P, 3P |
| Range | TeSys |
| Product or component type | mechanical interlock |
| Accessory / separate part category | interlocking accessory |
| Range of product | TeSys Giga |
| Interlocking type | mechanical |
| Complementary | |
| Depth | 120 mm |
| Width | 80 mm |
| Net weight | 0.25 kg |
| Height | 50 mm |
| Environment | |
| Operating altitude | 5000 m with derating factor, 3000 m without derating |
| Ambient air temperature for storage | -60-80 °C |
| Pollution degree | 3 conforming to IEC 60947-1 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | GB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1 |
| Ambient air temperature for operation | -25-60 °C |
