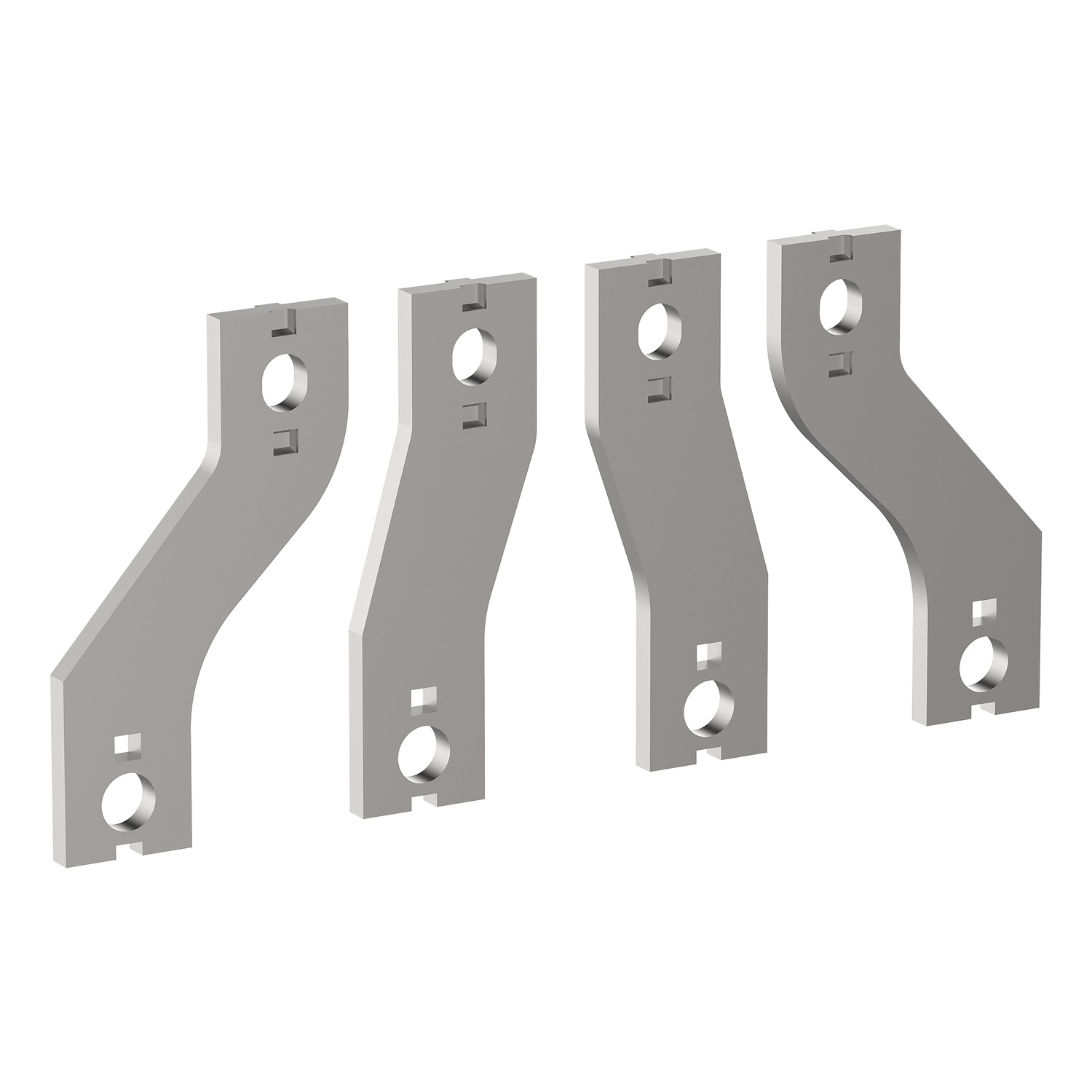

These accessories are spreader kit for TeSys Giga 265-330 contactor, 45mm-70mm connection. It is used to 4 Poles electrical circuit. They are screwed to the contactor terminals to increase the pitch between poles from 45mm to 70mm. The rated current is up to 500 A. Sustainability compliant. Green Premium compliant (RoHs/Reach).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA9G |
| Quantity per set | set of 4 |
| Poles description | 4P |
| Range | TeSys |
| Product or component type | spreader |
| Accessory / separate part category | connection accessories |
| Range compatibility | TeSys LR9G, TeSys LC1G |
| Range of product | TeSys G |
| Complementary | |
| Product compatibility | LC1G265...500 |
| Depth | 30 mm |
| Width | 68 mm |
| Net weight | 0.70 kg |
| Connection pitch | 70 mm |
| Height | 75 mm |
| Environment | |
| Operating altitude | 5000 m with derating factor, 3000 m without derating |
| Ambient air temperature for storage | -60-80 °C |
| Pollution degree | 3 conforming to IEC 60947-1 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Standards | GB/T 14048, CSA C22.2 No 60947-1, UL 60947-1, EN/IEC 60947-1 |
| Ambient air temperature for operation | -40-60 °C |
| Product certifications | cULus |
