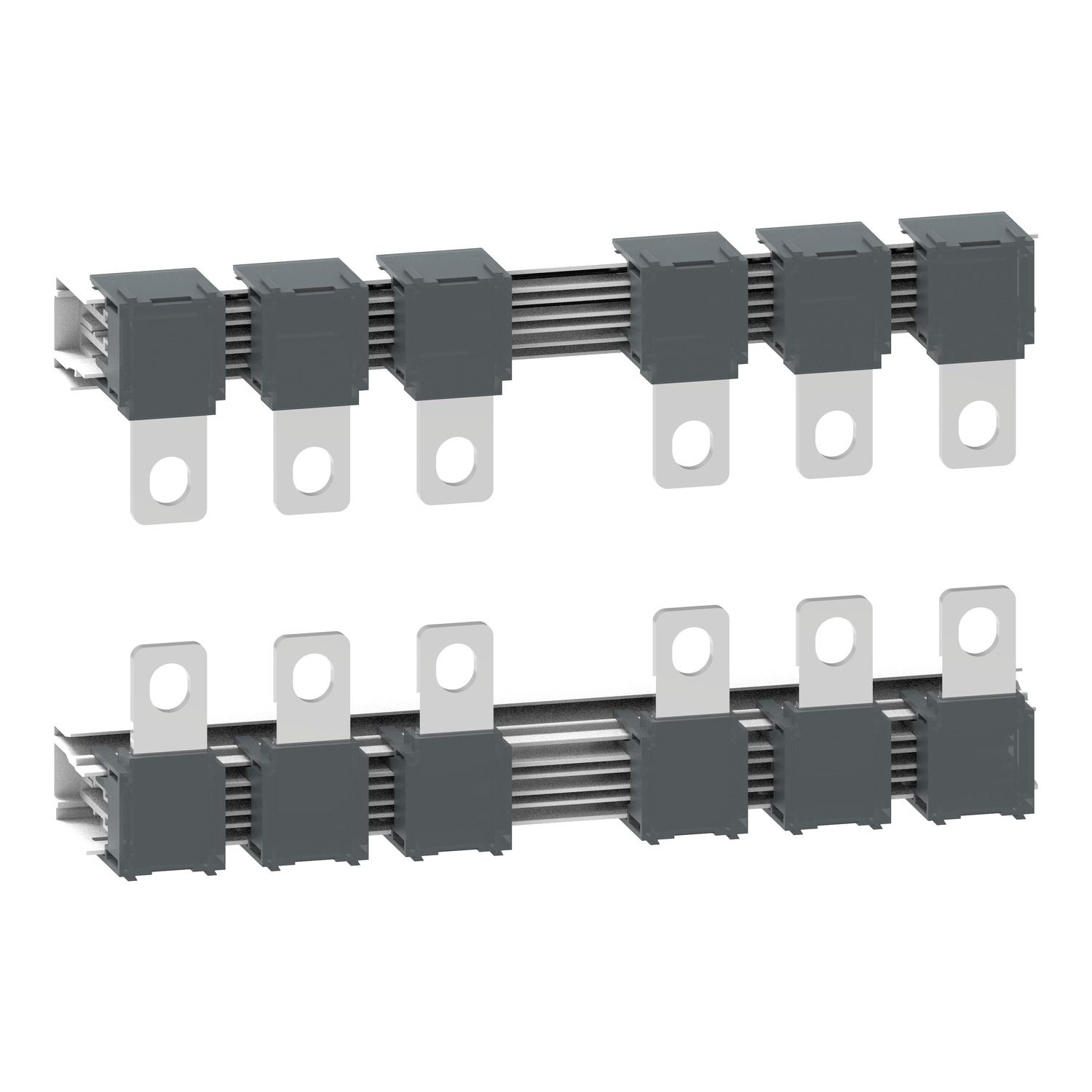

These accessories are reverser bars for TeSys Giga 630-800 contactor. It is used to 3 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 800 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA9G |
| Electrical circuit type | reversing |
| Quantity per set | set of 1 |
| Range | TeSys |
| Product or component type | set of connections |
| Accessory / separate part category | connection accessory |
| Complementary | |
| Product compatibility | LC1G620, LC1G630...800 |
| Depth | 88 mm |
| Width | 176 mm |
| Poles description | 3P |
| Net weight | 10.41 kg |
| Range compatibility | TeSys Giga |
| Height | 440.5 mm |
| Environment | |
| Operating altitude | 5000 m with derating factor, 3000 m without derating |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for storage | -60-80 °C |
| Product certifications | RMRoS, RINA, RCM, LROS (Lloyds register of shipping), KC, EAC, DNV-GL, CE, cUL, CCS, CCC, CB, BV, ABS |
| Standards | GB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1 |
| Ambient air temperature for operation | -40-60 °C |
