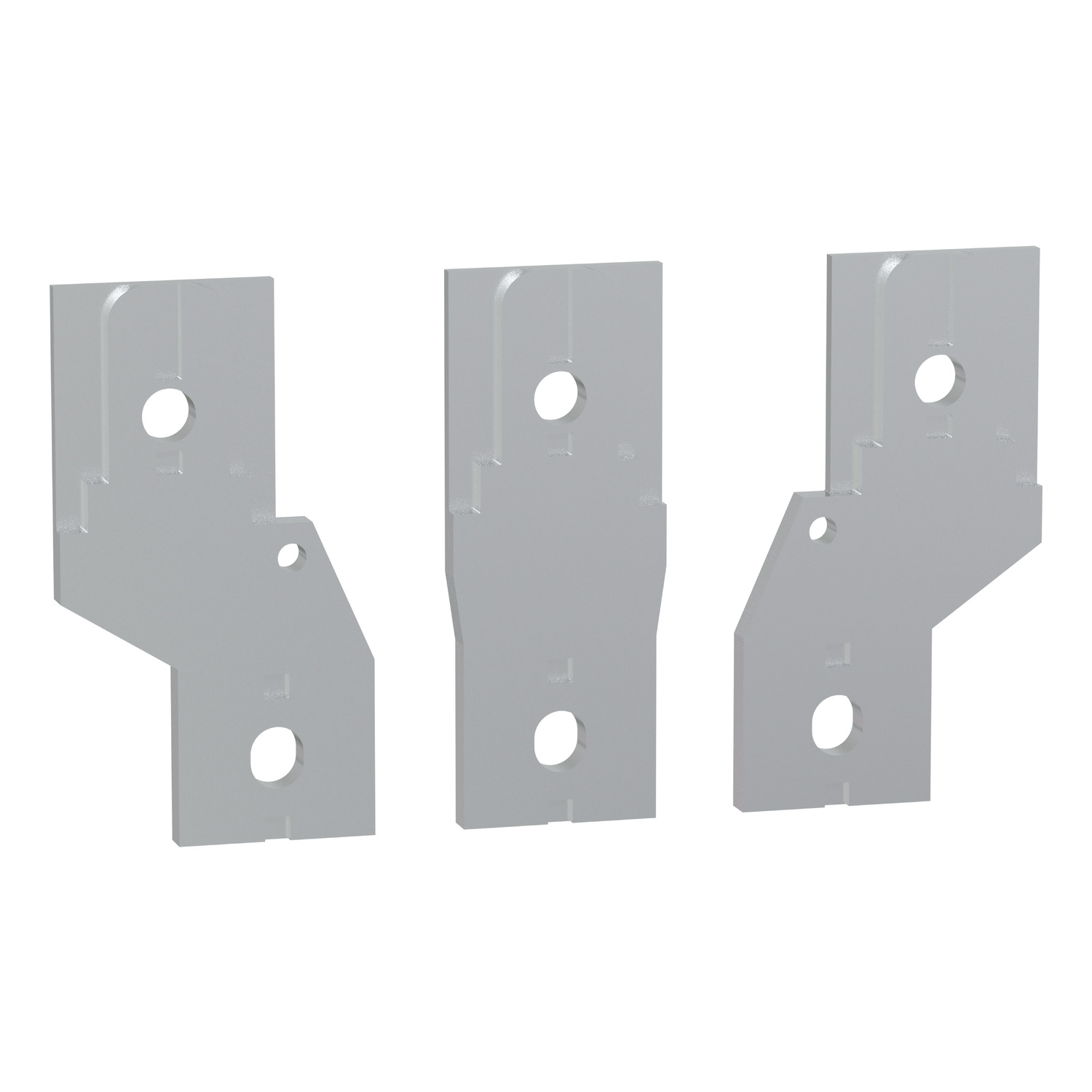

These accessories are terminal adapters for TeSys Giga 630-800 contactor. It is used to 3 Poles electrical circuit. They are screwed to the contactor terminals to increase the pitch for 80mm wide poles. The rated current is up to 800 A. Sustainability compliant. Green Premium compliant (RoHs/Reach).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA9G |
| Quantity per set | set of 3 |
| Poles description | 3P |
| Range | TeSys |
| Product or component type | spreader |
| Accessory / separate part category | connection accessories |
| Range compatibility | TeSys LR9G, TeSys LC1G |
| Range of product | TeSys G |
| Complementary | |
| Product compatibility | LC1G630...800 |
| Depth | 33 mm |
| Width | 76 mm |
| Net weight | 1.44 kg |
| Height | 135 mm |
| Environment | |
| Operating altitude | 5000 m with derating factor, 3000 m without derating |
| Ambient air temperature for storage | -60-80 °C |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Standards | GB/T 14048, CSA C22.2 No 60947-1, UL 60947-1, EN/IEC 60947-1 |
| Ambient air temperature for operation | -40-60 °C |
| Product certifications | UL |
