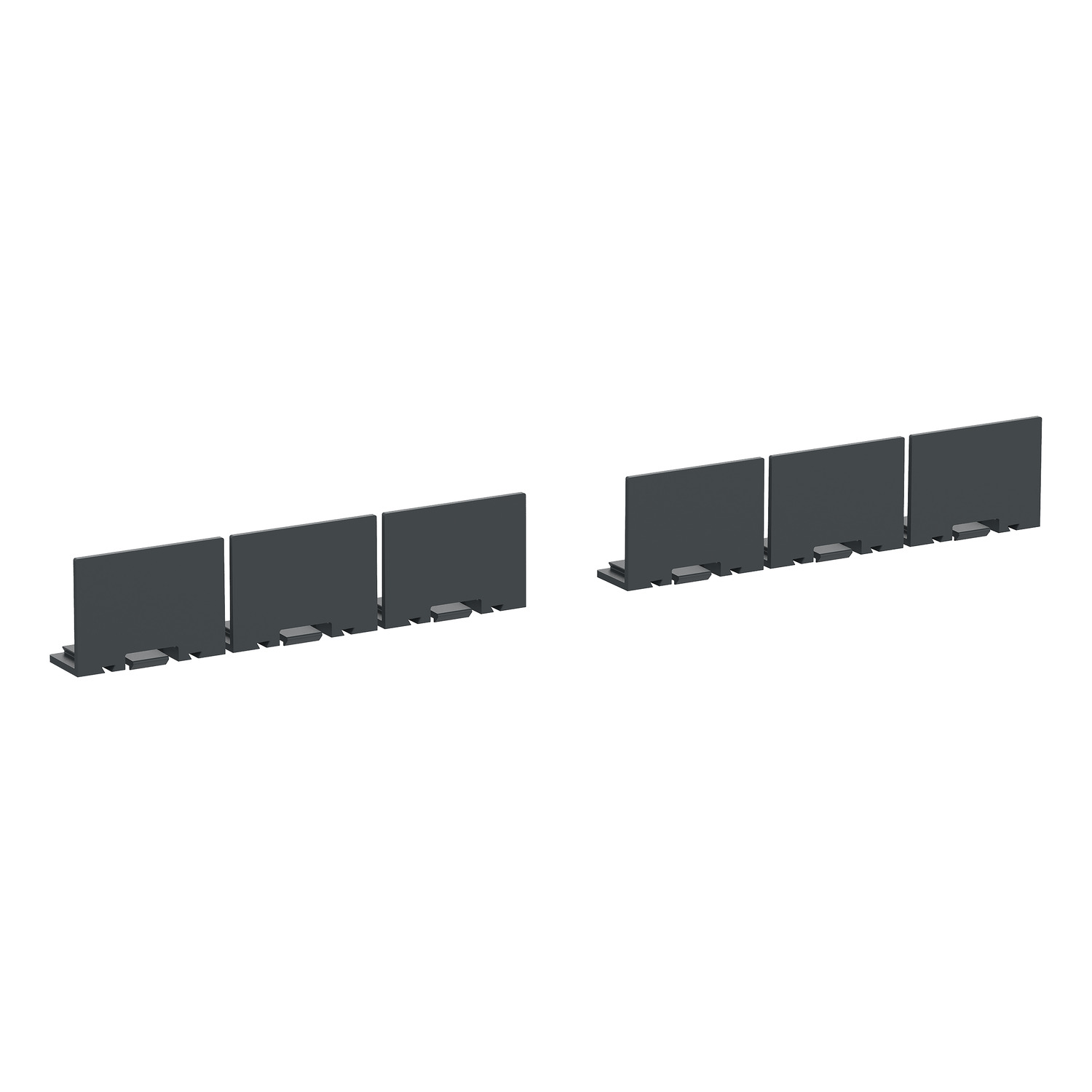

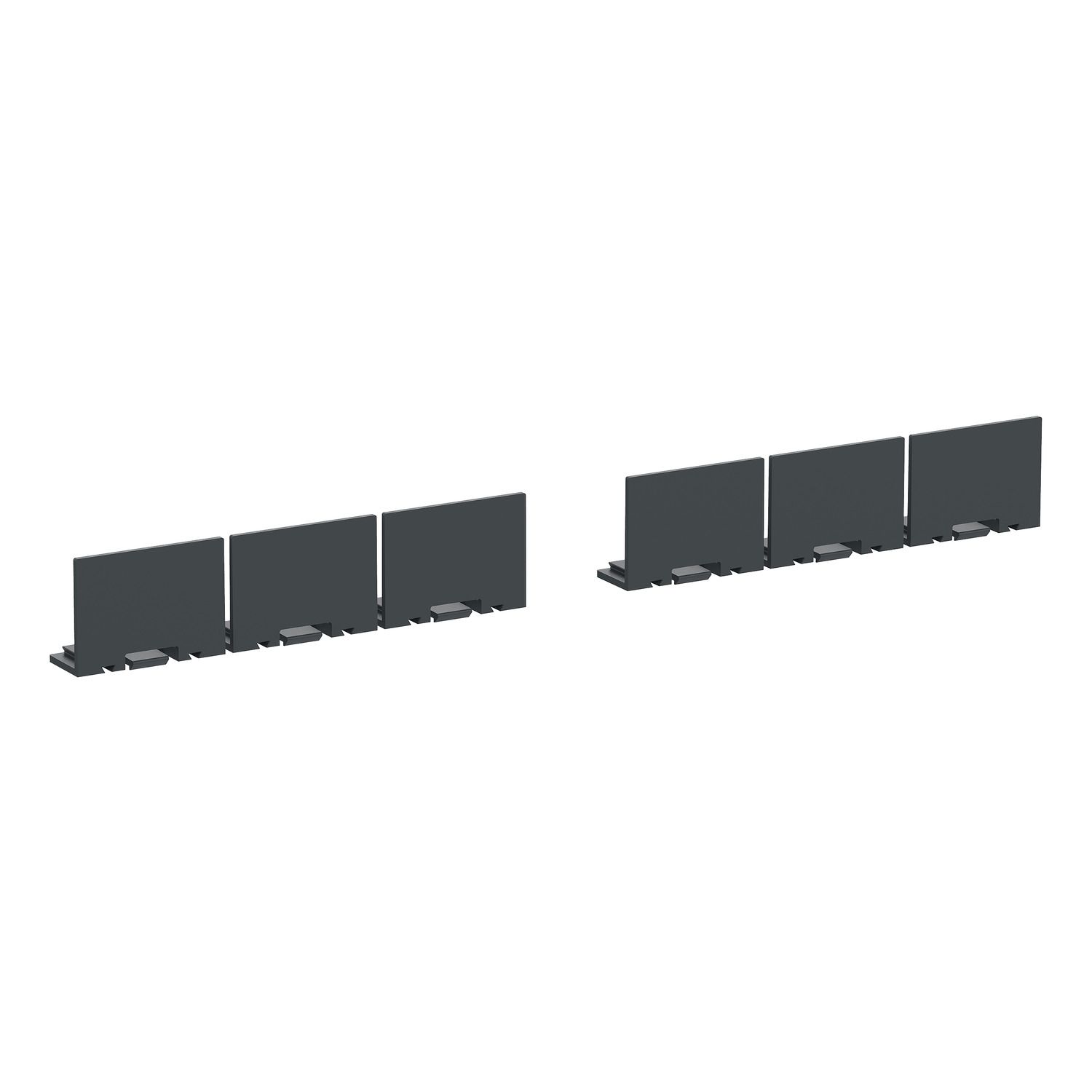

These accessories are lug cover for TeSys Giga 115-800 contactor. It is used to 3 Poles electrical circuit. It provides IP20 protection conforming to IEC 60529. It could be assembled by coupling. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA9G |
| Quantity per set | set of 6 |
| Poles description | 3P |
| Range | TeSys |
| Product or component type | lug shield |
| Range of product | TeSys G |
| Complementary | |
| Product compatibility | LC1G630...800, LC1G265...500, LC1G115...225 |
| Depth | 35 mm |
| Width | 30 mm |
| Range compatibility | TeSys G |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Net weight | 0.055 kg |
| Height | 40 mm |
| Environment | |
| Operating altitude | 5000 m with derating factor, 3000 m without derating |
| Ambient air temperature for storage | -60-80 °C |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Standards | GB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1 |
| Ambient air temperature for operation | -25-60 °C |
