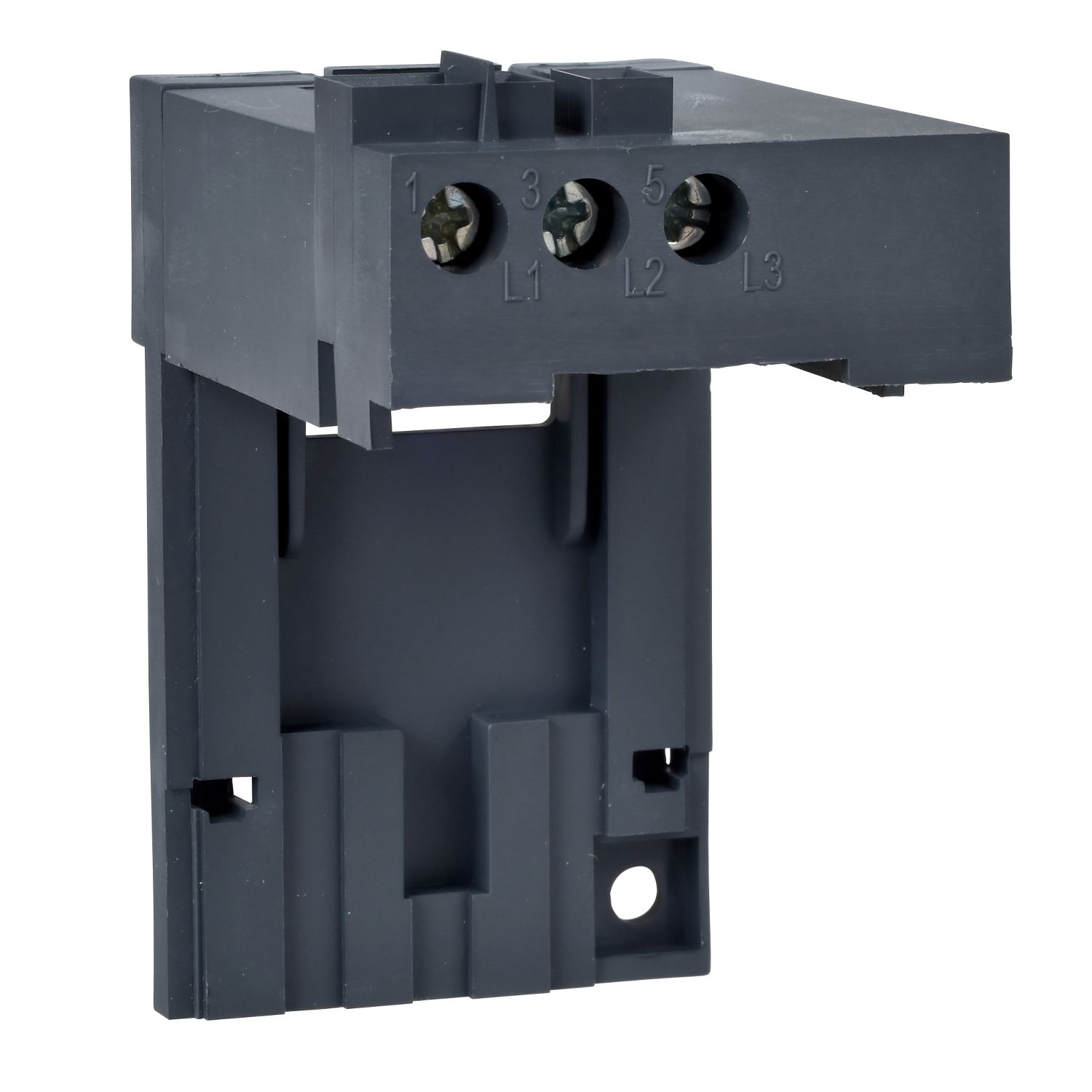

TeSys LRK terminal block, for thermal overload relays LR2K, LR7K. To be used for a separate mounting of overload relay and contactor. It provides top connections by screw clamp terminals, clip-on fixing on 35 mm DIN-rail. It conforms to RoHS/REACh regulation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA7K |
| Product compatibility | LR7K, LR2K |
| Mounting support | rail |
| Range | TeSys |
| Product or component type | terminal block |
| Accessory / separate part category | connection accessory |
| Complementary | |
| Depth | 75 mm |
| Width | 45 mm |
| Quantity per set | set of 10 |
| Compatibility code | LA7K |
| Tightening torque | 0.8 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 0.8 N.m - on screw clamp terminals - with screwdriver Philips No 2 |
| Connections - terminals | screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 0.34-2.5 mm²flexible with cable end, screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 0.75-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm²solid, screw clamp terminals 1 cable(s) 1.5-4 mm²solid |
| Net weight | 0.1 kg |
| Height | 80 mm |
