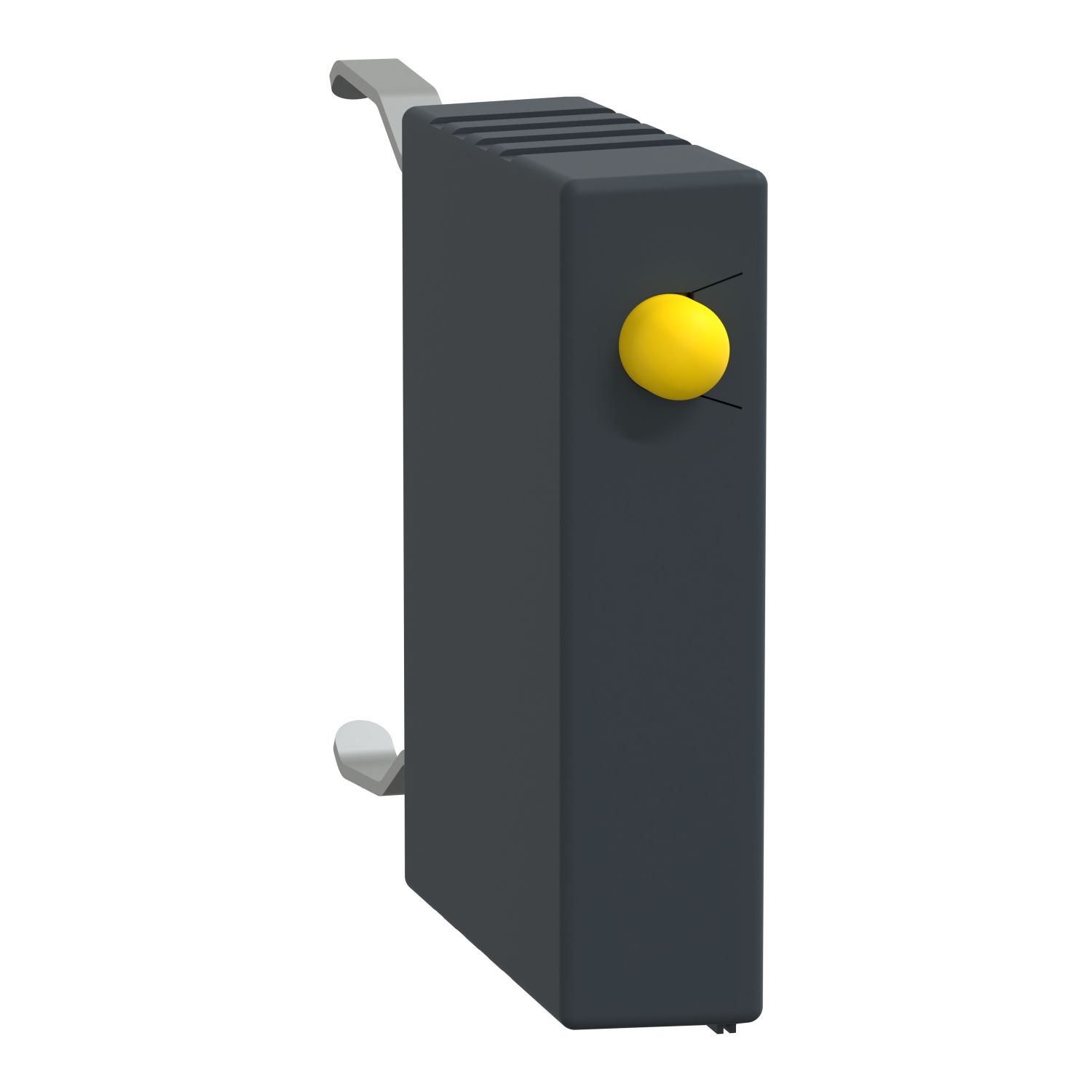

TeSys K suppressor module, for contactors LP.K, CA3K, CA4K. To be used with 12-24V DC control circuits, it provides a flywheel diode protection ensuring no transient overvoltage. Clip-on mounting on front of contactor (no tools required, polarised component), it incorporates a power-on LED indicator. Sold in lots of 5 units. It conforms to RoHS/REACh regulation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA4K |
| Product compatibility | CA3K, LP4K, LP1K |
| Range | TeSys |
| Product or component type | suppressor module |
| Range of product | TeSys K |
| Complementary | |
| Suppressor technology | bidirectional peak limiting diode |
| Depth | 22 mm |
| Width | 6 mm |
| Quantity per set | set of 5 |
| Compatibility code | LA4K |
| Local signalling | LED |
| Mounting mode | clip-on |
| Maximum peak voltage | 2 Uc |
| Mounting location | front side |
| Net weight | 0.01 kg |
| Height | 26 mm |
| [Uc] control circuit voltage | 12...24 V DC |
| Environment | |
| Protective treatment | TC conforming to DIN 50016, TC conforming to IEC 60068 |
| Ambient air temperature for storage | -50-80 °C |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Standards | EN/IEC 60947-5-1, CSA C22.2 No 60947-5-1, UL 60947-5-1 |
| Ambient air temperature for operation | -25-50 °C |
| Product certifications | UKCA, CE, CSA, UL |
